For Sale by Vander Ziel Machinery Sales
Surplus Record Dealer Since 2006
Location: Alto, MI
Contact Andy VanderZiel
Phone Number: 616...> Show Phone Number 616-868-1111
Let the seller know you found their listing on Surplus Record!
$2,500 USD
Description

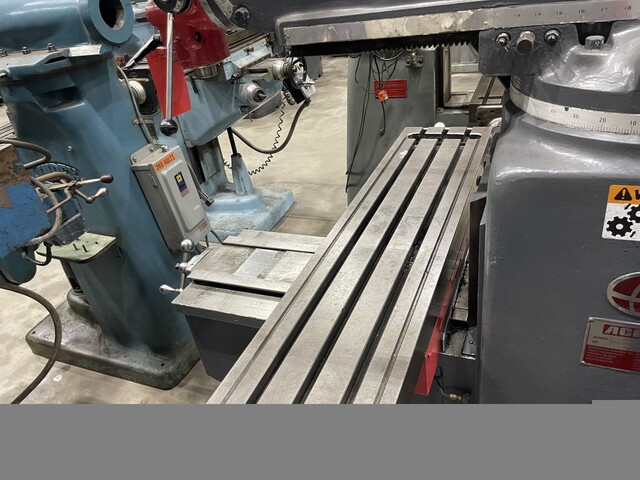

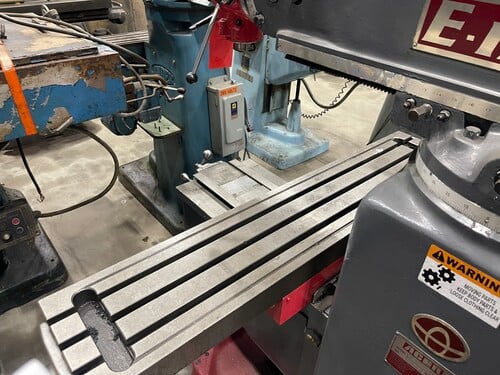

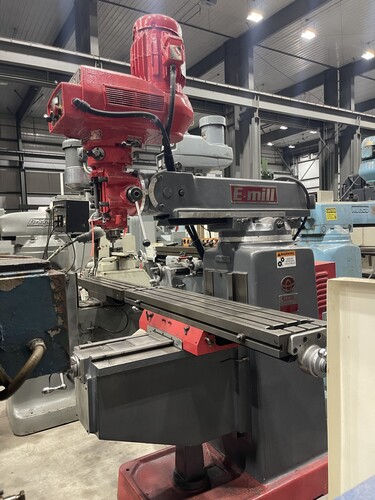

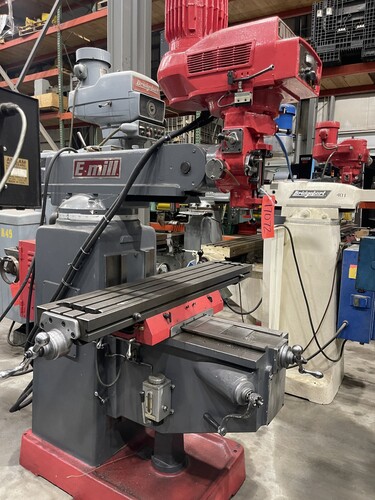

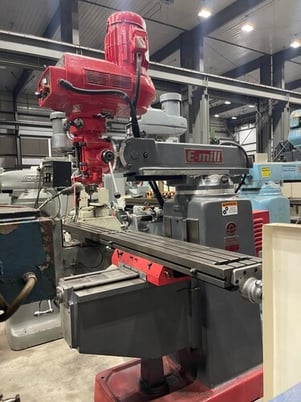

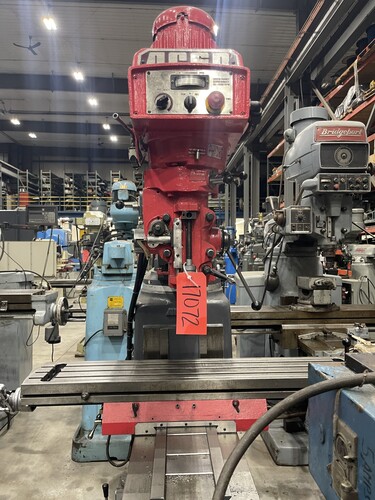

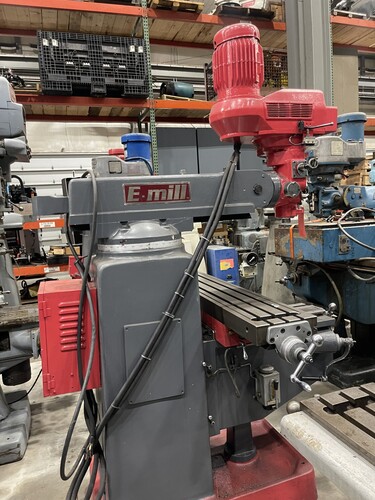

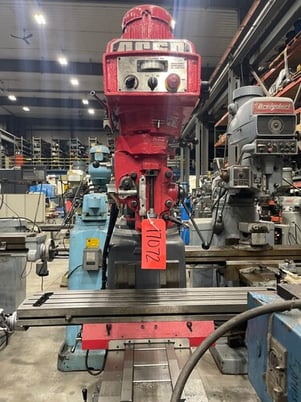

Acer EVS-3VK Vertical Knee Mill, 10" x 50", 3 HP
Asset # 17072

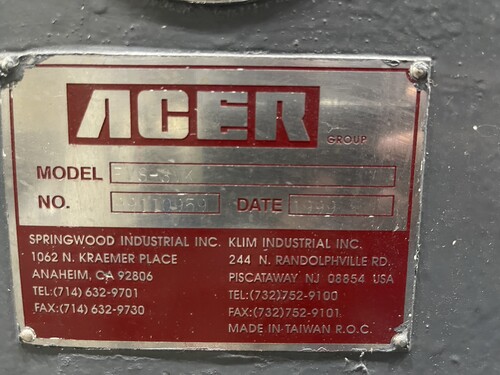

Serial #99110959
Specifications:
Model E-mill 3VK

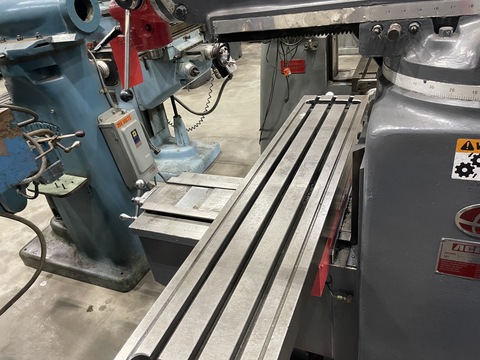

Table Working Surface 10" x 50"
Longitudinal Travel 34"
Cross Travel 16"
Vertical Knee Travel 16"
Ram Travel 20"
T-Slot Number, Size 3, 5/8"
Head Main Motor 3 HP
Head moves right to left 90
Head tilts front to back 45
Spindle Spindle drive Variable
Spindle speed 60 ~ 4,500
Spindle taper R-8
Quill Power quill feeds (in / rev.) 0.0015", 0.003", 0.006"
Quill diameter (Chromed) 3-3/8"
Quill travel 5"
Weight approx. 3,050 lbs.
Preliminary Specifications - Subject to Verification
Inquire Further with Vander Ziel Machinery Sales!
