Accutek #SVF 02-002-000, Single Piston Filler with Conveyor, Heated & Agitated Hopper, 2014

Accutek SVF 02-002-000 Single Piston Filler with Conveyor, Heated and Agitated Hopper, and E-Pak Accumulation Table, 2014

Previously used for filling containers of skin care product

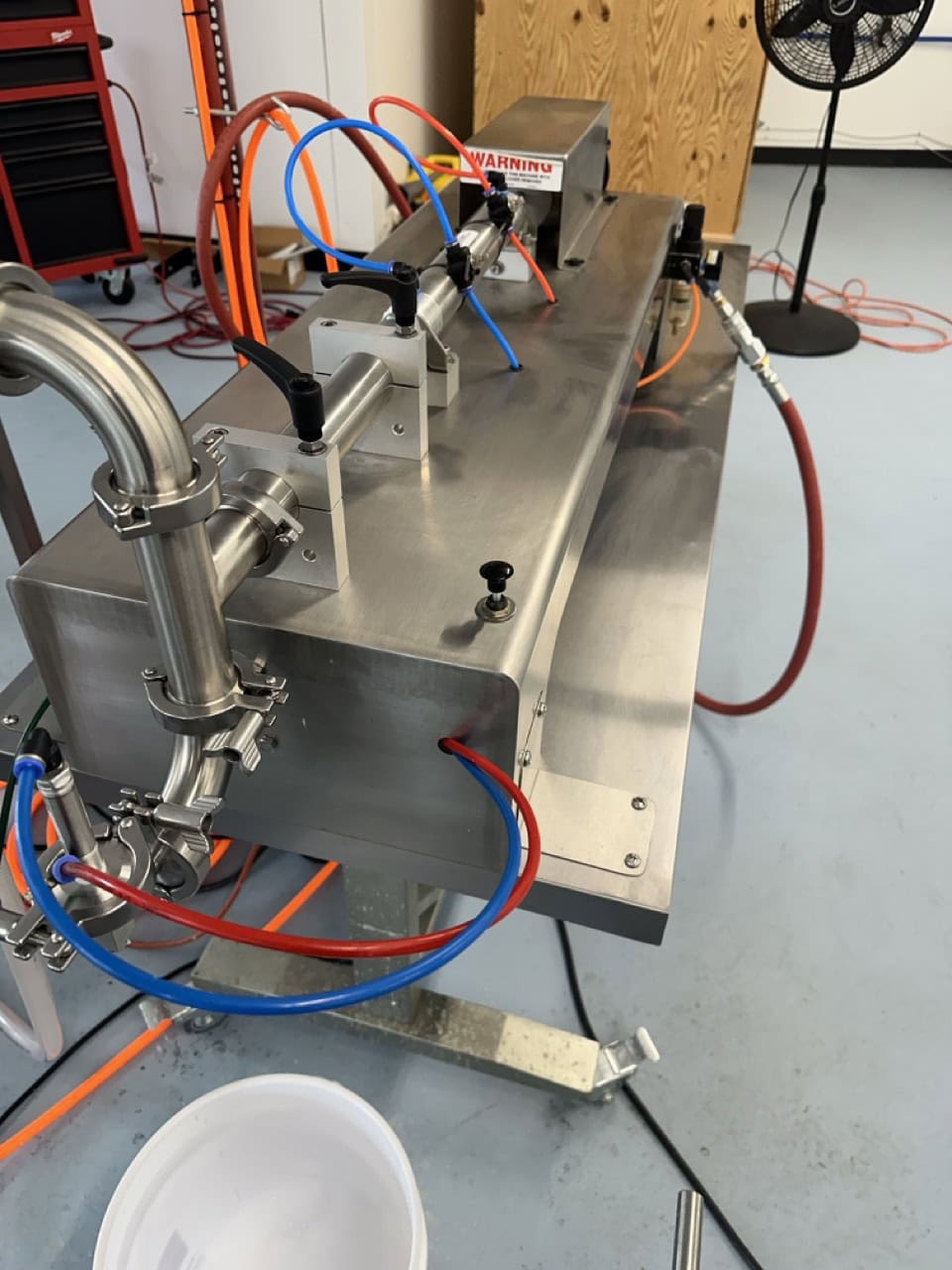

Accutek SVF series sanitary single piston filler, 2014:
– Stainless adjustable table mount with locking wheels
– Currently set up to run automatically (could run semi-automatically with installation of foot switch)
– One sanitary 8-64oz filler cylinder with piston head and O-rings package
– One sanitary 0.25-1oz filler cylinder with piston head and O-rings package
– Positive shut off nozzle assembly with ertalyte piston head – 1/2″ OD – used on VF series fillers. Assembly utilizes a 1/2″ positive shut off piston to force excess product from the nozzle as well as decrease the possibility of product dripping while filling product with small particulates
– 80 PSI

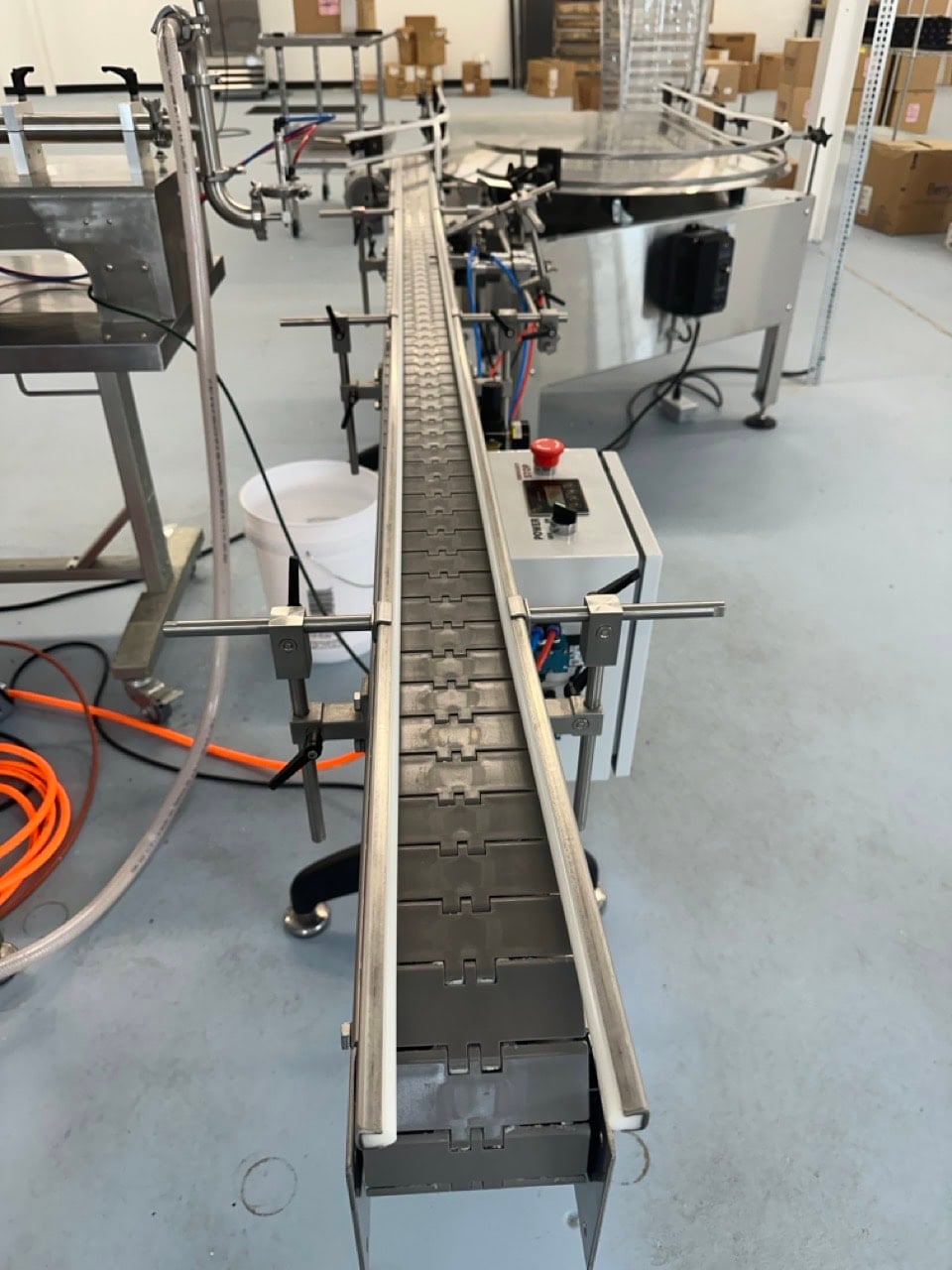

Sanitary Conveyor Assembly, 2018:
– 4 1/2″ Wide Stand Alone Sanitary Style Conveyor Assembly
– Heavy Duty S.S. Frame
– Washdown Motor Package

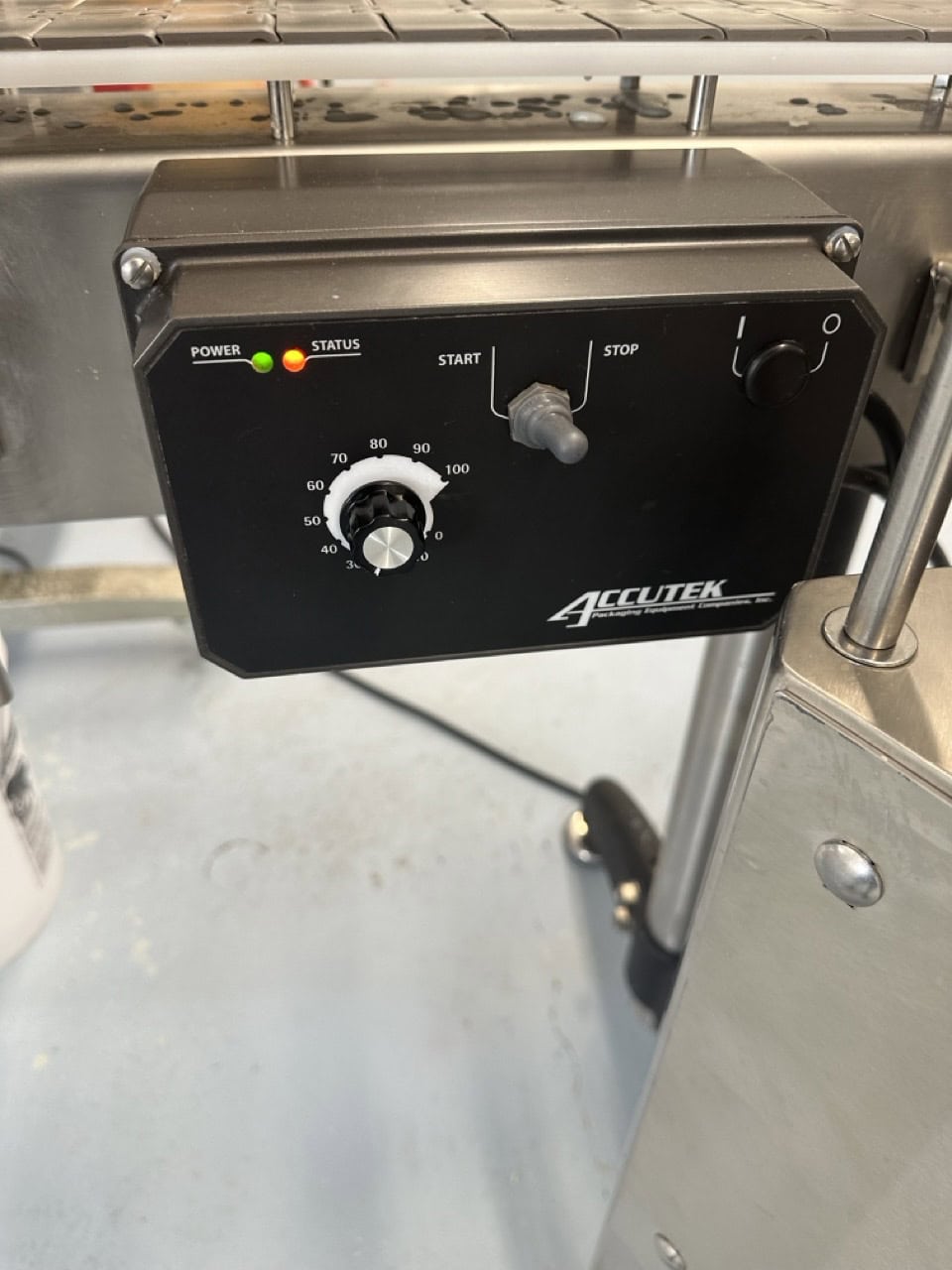

– Variable Speed Controller
– Standard line height 32-38″
– 110 volt / 1 phase

Automatic Bottle Indexer (ABI), complete with:
– ‘No bottle – No fill’
– Step Fill
– Six up fill
– Bottle counting
– Multi stroke for VF models

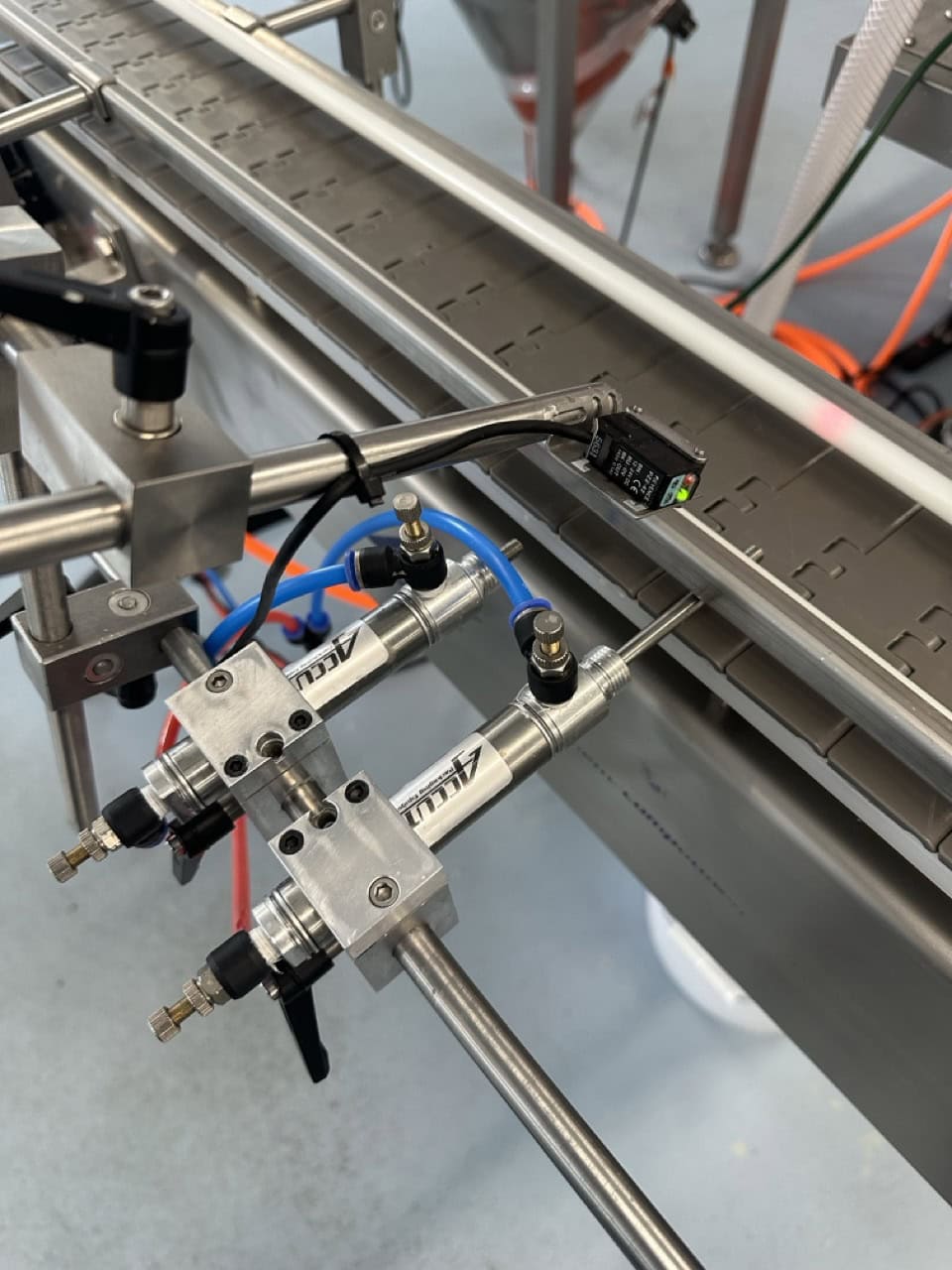

– Includes IR Photo-eye and micro processor logic controller
– 115 volt / 1 phase

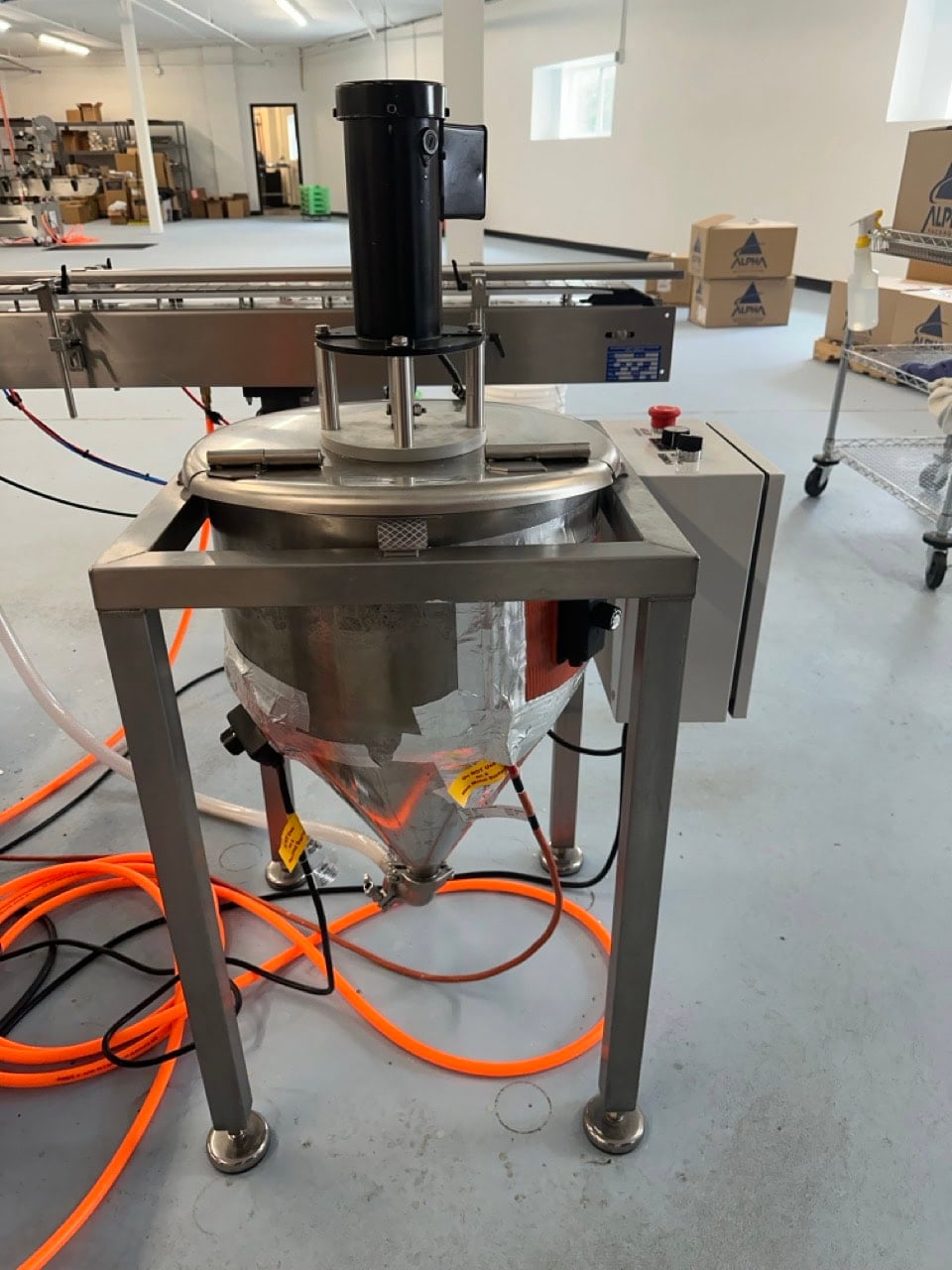

Product Hopper:
– 12 Gallon Conical
– Stainless steel construction
– 1 1/2″ Sanitary Ferrule Connection
– 12 Gallon Hopper Lid
– Stainless steel hopper frame and articulating leveling pads

Mixing/Agitator Kit for 12 Gallon Conical Hopper:
– Stainless steel mixer shaft / prop
– Variable speed DC motor and controller
– Designed to mix or agitate low viscosity liquids

40″ Accumulation Turntable
– 304 stainless steel top
– 304 stainless steel frame construction
– Standard line height 32″-38″
– Clockwise or counterclockwise rotation
– Double rail system with HDPE bottle contact surface
– Tool-less adjustable rail brackets
– Half-moon dead plate to assist bottle accumulation, 2′ x 3′
– Variable speed controls
– 115Volt/1ph/50-60Hz
