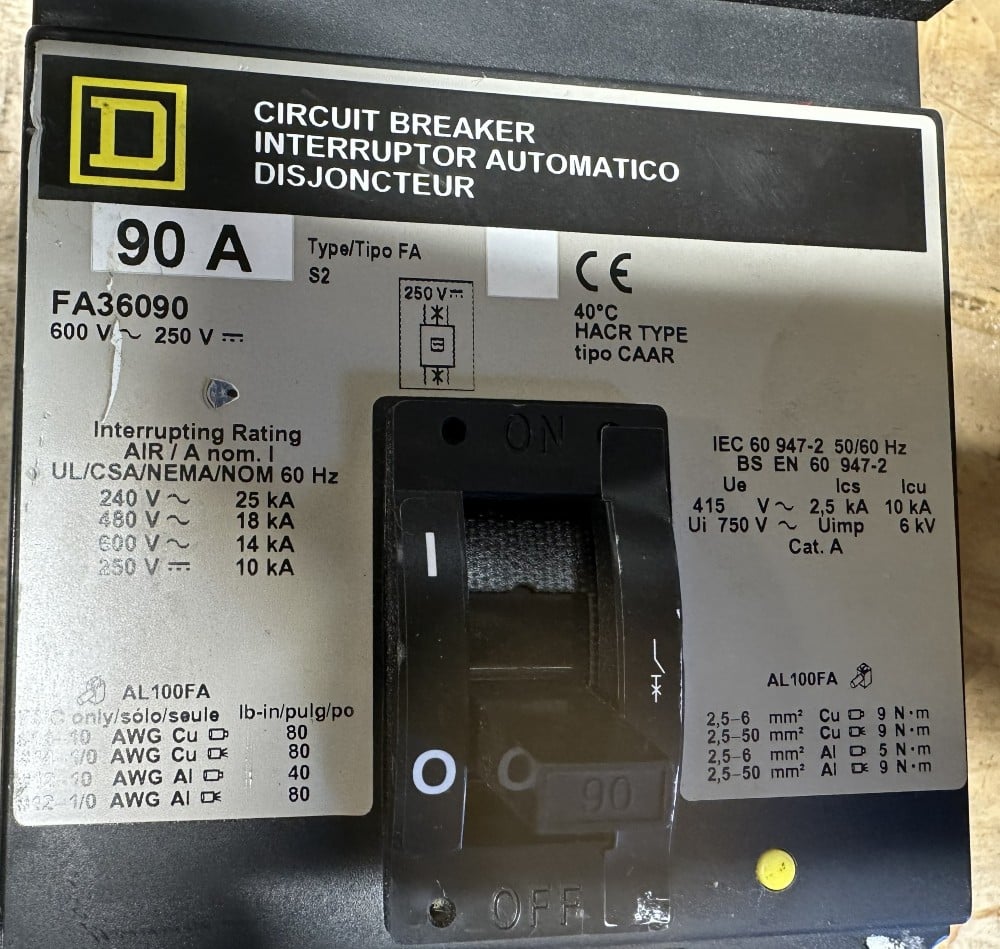

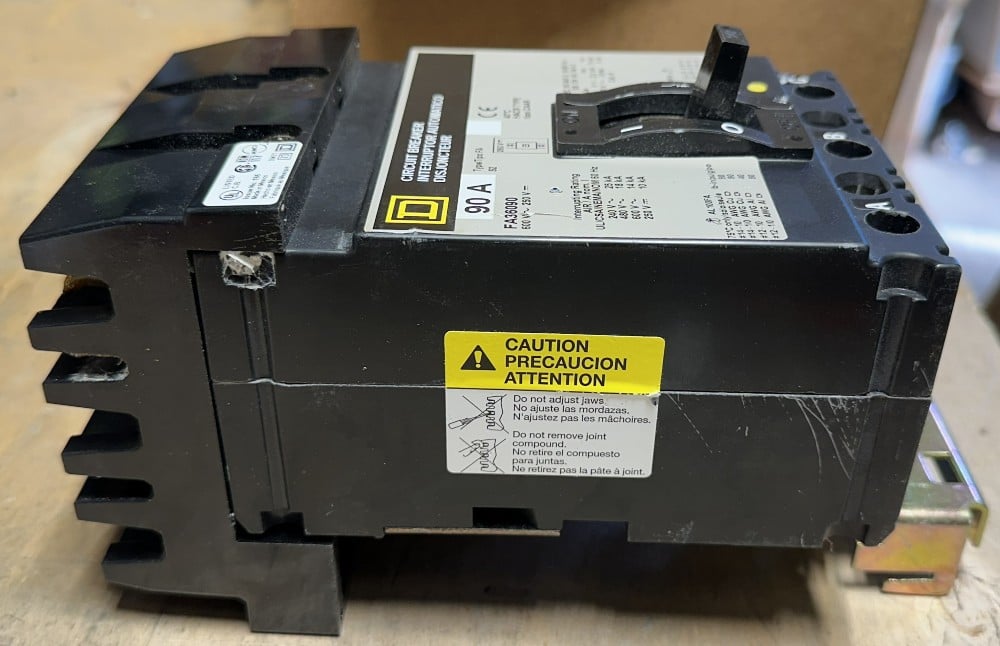

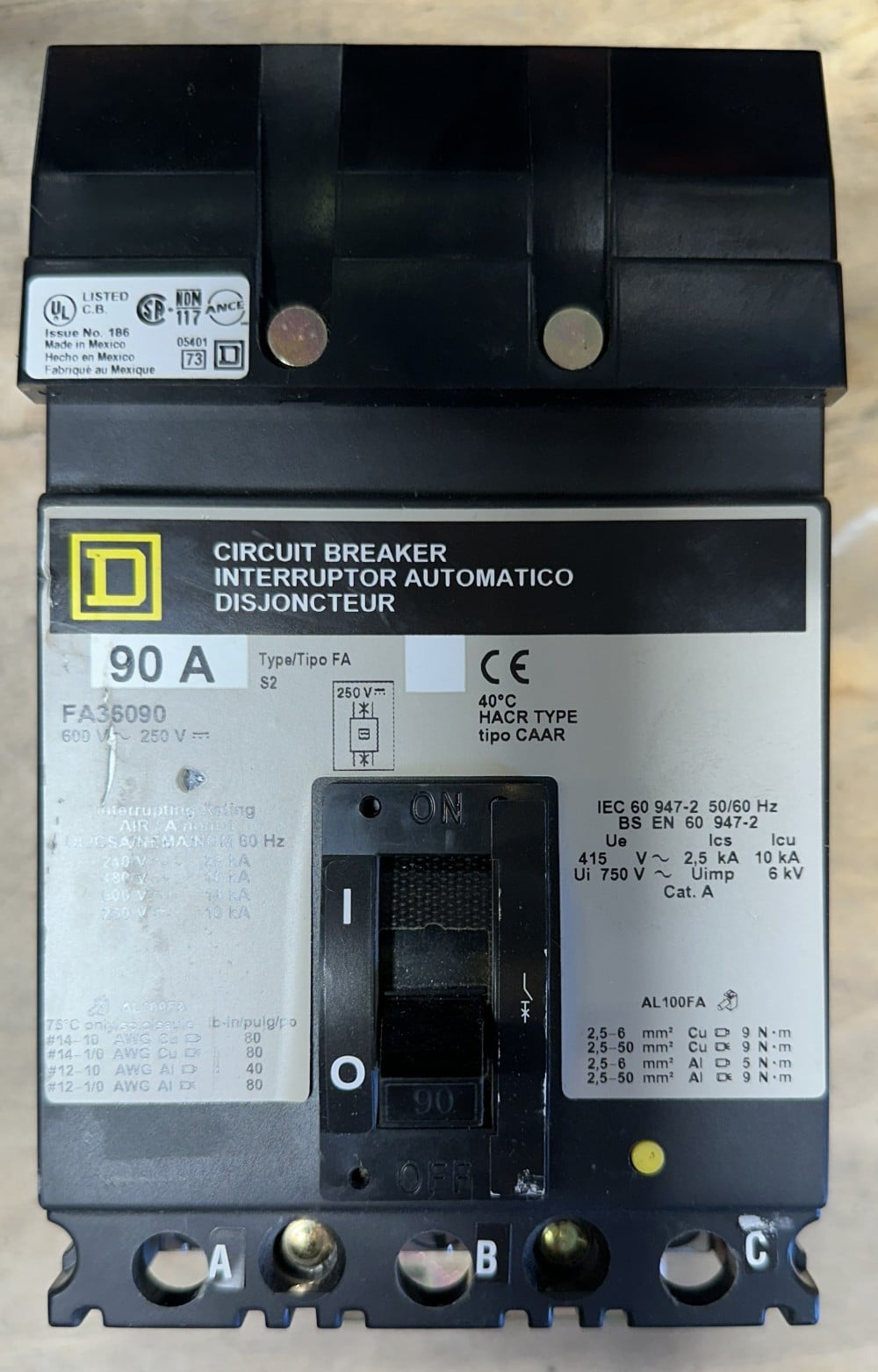

90A, Square D, FA36090, Type FA Plug-In Molded Case Circuit Breaker, 3-Pole, 600 VAC / 250 VDC, 18kA @ 480V

Square D Type FA FA36090 Plug-In Molded Case Circuit Breaker, Series 2
90A – 3-Pole – 600V AC / 250V DC – Thermal-Magnetic, Fixed Trip – 25kA @ 240V / 18kA @ 480V / 14kA @ 600V

>> Qty 2 In Stock <<

>> Call for Price – FOB Pickering, Ontario <<

Square D Type FA Series 2 thermal-magnetic molded case circuit breaker, catalog FA36090, rated 90A at 40°C, 3-pole, 600V AC / 250V DC, with fixed, non-adjustable trip. Interrupting rating of 25kA at 240V, 18kA at 480V, 14kA at 600V and 10kA at 250V DC. Plug-in jaws on line end; AL100FA load lugs installed. Mounting bracket at load end. HACR rated. UL, CSA, NOM, ANCE and CE marked. Two units available – priced each.

SPECIFICATIONS

Manufacturer: Square D (Made in Mexico)
Series: Type FA, Series 2 (Issue No. 186)
Catalog #: FA36090
Type: Thermal-Magnetic Molded Case Circuit Breaker, plug-in
Poles: 3 (A-B-C)
Current Rating: 90A @ 40°C
Trip Type: Fixed – non-adjustable
Voltage: 600V AC / 250V DC
Interrupting Rating: 25kA @ 240V AC, 18kA @ 480V AC, 14kA @ 600V AC, 10kA @ 250V DC
IEC 60947-2: Ue 415V AC, Icu 10kA, Ics 2.5kA, Ui 750V, Uimp 6kV, Cat. A
Line Connection: Plug-in jaws
Load Lugs: AL100FA installed, #14–1/0 AWG Cu/Al, 75°C wire only
Accessories: Mounting bracket at load end
Ratings: HACR
Approvals: UL Listed, CSA, NOM, ANCE, CE
Date Code: 05401

CONDITION

Condition: Used – As-Is

TERMS

Price: Call for Price
Shipping: FOB Pickering, Ontario. Buyer arranges and pays all shipping, brokerage and duties.
Freight: Ships boxed (parcel)
Stock #: CB-1577
