Description
Specifications
Equipped With
| ORDER | 90 |
Equipped With

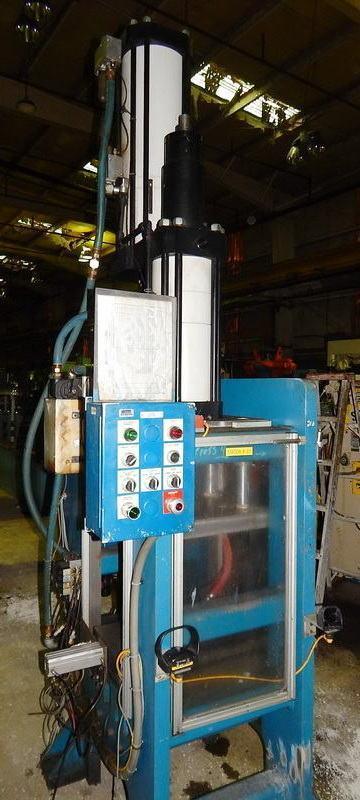

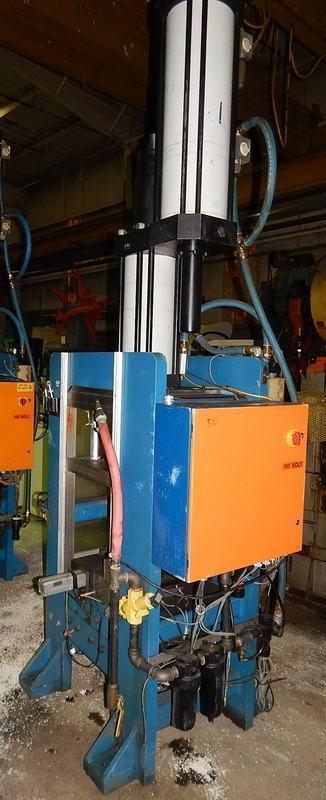

90 Ton FARGER & JOOSTEN MULTIPOWER Air/Oil Press
Serial Number: 2750
SPECIFICATIONS:

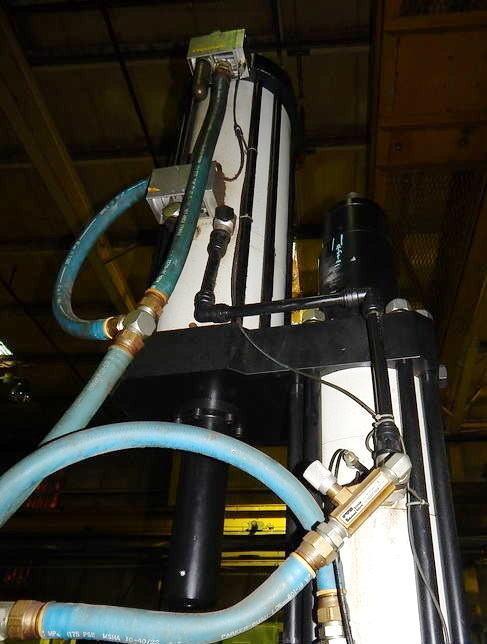

This is a Multipling type Air over Oil Press
See: http://farger-joosten.de

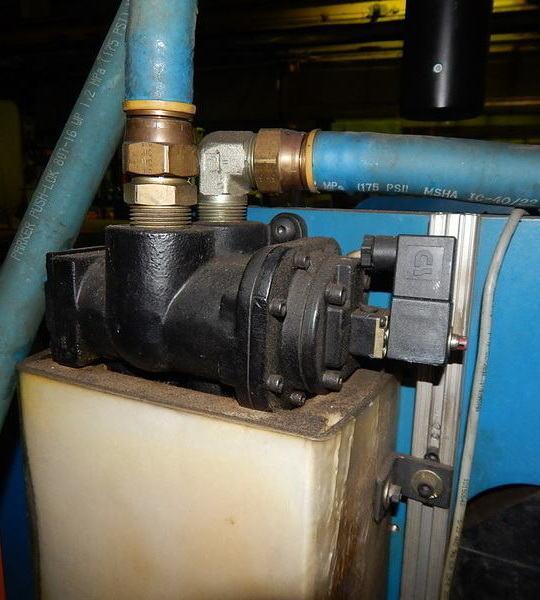

NOTE: Will Sell Either Power Unit on the Mounting Plate with a
Four Post Guided Ram or Everything at the same Price. We will
Remove, Pack, and Protect the Power Unit for Shipping

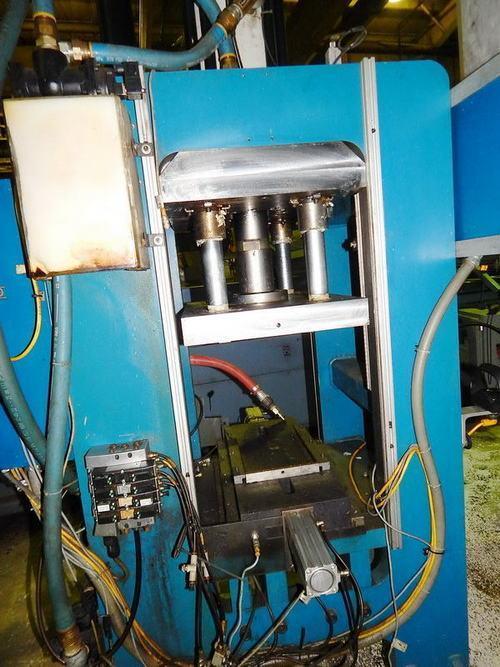

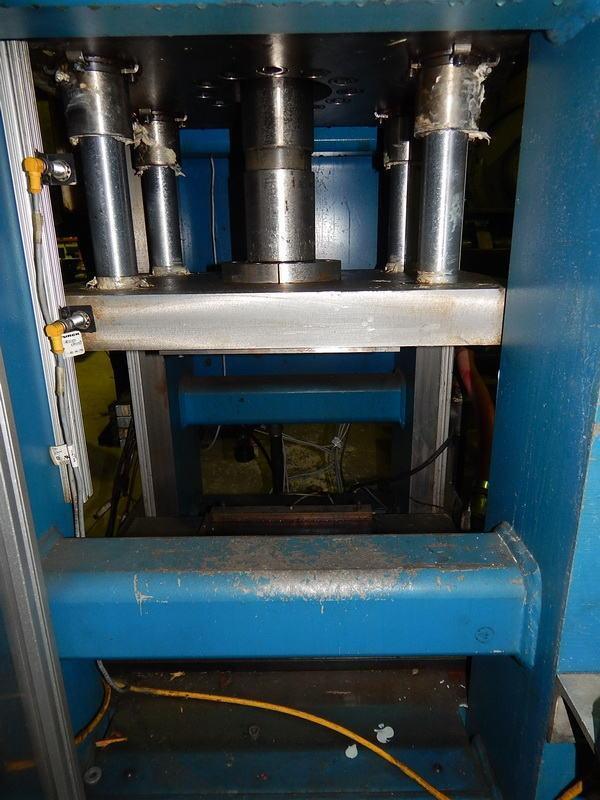

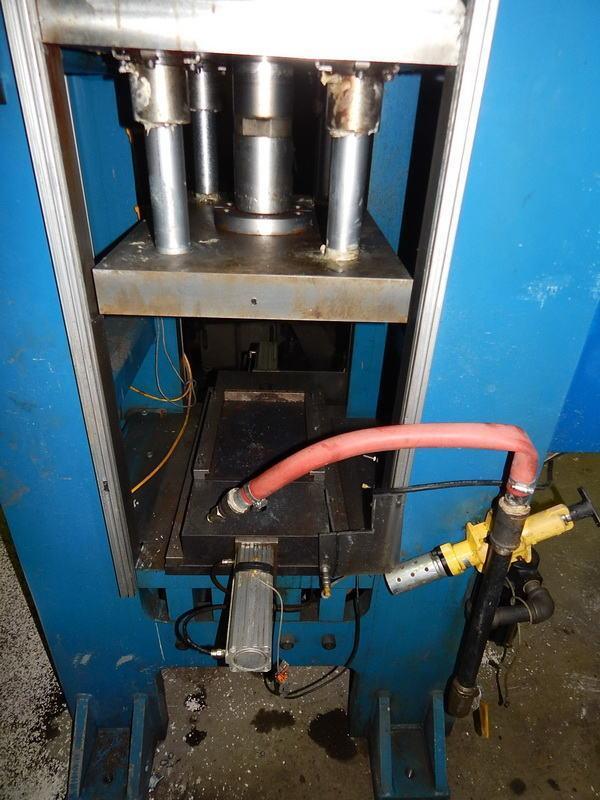

Housing Style Press with a 4 Post Guided Ram
Built for Side to Side Feed
Tonnage: 84 Tons
Stroke: 7.9" (adjustable), the last .79" Power Stroke
Daylight Opening: 26"
Bed: 24" LR x 17" FB x 2" Thick
Ram: 24" LR x 17" FB x 2-1/2" Thick
Force in Approach Stroke: 3,911 lbs
Force in Retract Stroke: 3,664 lbs
Force in Power Stroke: 84 ton (US)
Pass Line, Floor to Top of Bed: 24"
Windows, Both Sides, On Center of Bed: 18"
Side Frame, Thickness: 2"
Distance Inside Side Frames: 20"
NOTE: Power Unit is Fully Supported through Schmidt Presses,
Cranberry, PA
OVERALL DIMENSIONS: 36" LR x 54" FB x 132" High
Get Your Price from D & D Industries Inc!
