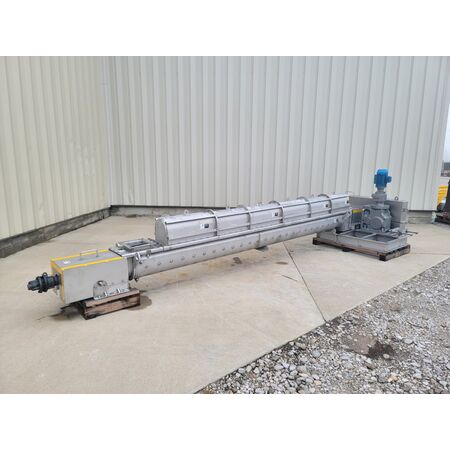

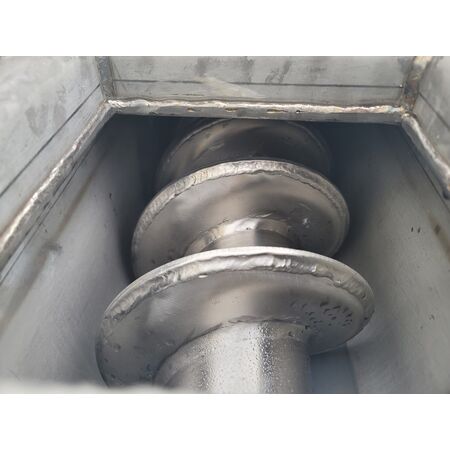

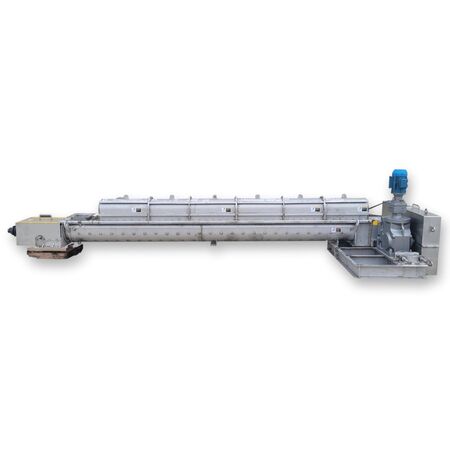

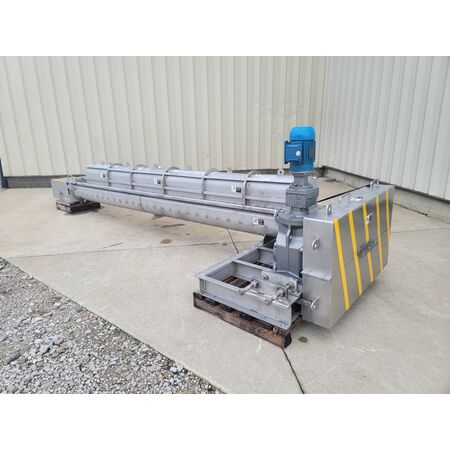

UNUSED Thomas Conveyor Stainless Thermal Screw Heating/Drying Jacketed Processor Mfg. reference number: 28-0057642-B Stainless steel construction (316L screw & u-trough, 304L jacket) Surface Finish: standard #2B or #2D & #2 on welds (no grind) Cored hollowflight screw approx. 9" x 14' long Total effective surface area of screw: 42.5 sq. ft. Max. pressure (screw & jacket): 14.7PSIG Hot Oil Top Cover/Housing: rated for full vacuum, bolt-on, gasketed Drive: 1.5HP explosion proof, inverter-duty gearmotor (3.5RPM output) and chain reduction Power Supply: 230/460V, 60Hz, 3ph AC Hot Oil Supply: 10GPM (screw) & 2.9GPM (jacket) @ 300 F Installed with double flow rotary union Not Included Items: Oil Heater, VFD controller, valves, pumps, piping etc. Total Width: 57" Total length: 224" Built in 2019. Cancelled project; never used!
Used 9" Dia. Rietz Stainless Steel Thermascrew Steam Blancher Cooker TL-9-K2210, Serial No: T-63570, Non-pressurized blanching system using bottom steam injection across product being conveyed., The 10' long covered U-trough has a 9" square inlet and a 9" wide side chute discharge with dewatering ...more
Carman Industries Fluid Bed Dryer model ACS-64 LH Serial 210414-1, Shop Order No: 14941; Customer No: 2871, All stainless steel contact with product., Processor bed (internal) measures 10.75"W X 131"L, Product Inlet: 6" sleeve, Product Discharge: 6" sleeve with manual retension wier gate, Controlled ...more
Rotary Dryer, 13" diameter x 195" long, mounted on frame, mild steel construction. Includes burner with gas train. Driven by 1 HP Marathon motor, 3 phase, 60 Hz, 230-460/190/380 V, TEFC Enclosed. Previously used in calcium carbonate process., Measurements: 13" diameter x 195" long, Materials of Construction: Carbon ...more
