$9,500 USD
Description

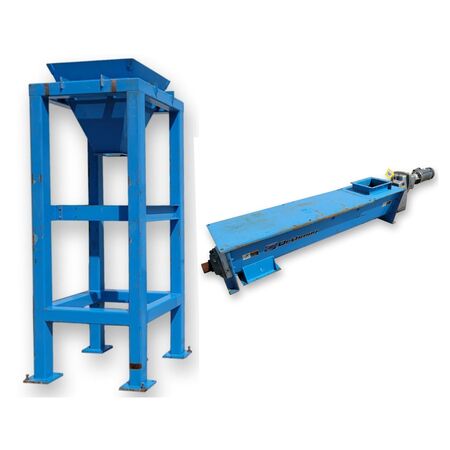

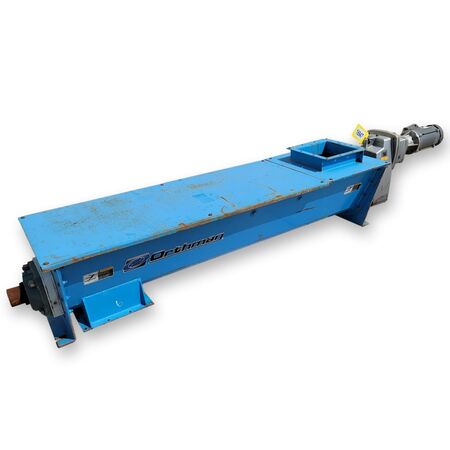

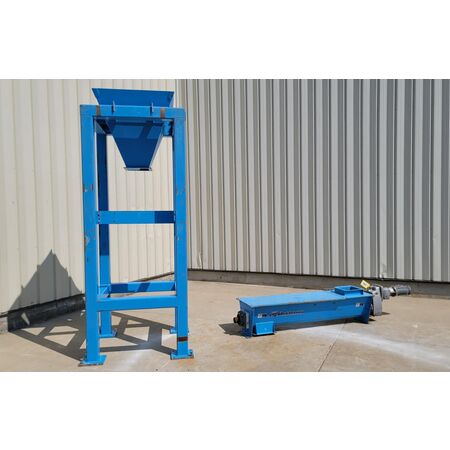

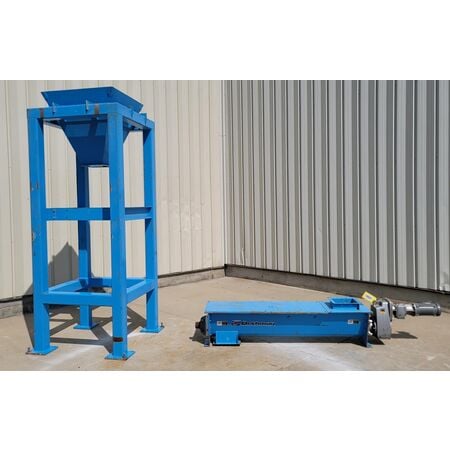

Used Orthman 9" dia. X 5' long Screw Conveyor Feeder
All carbon steel construction
Round bottom trough with flared sides and flanged edge
4.5" steel shaft with 3/8" thick flighting
Full length of bolt-on cover with 10" sq. inlet
1/3HP drive with Nord shaft-mount helical gear reducer
Supply: 208-230/460V, 60Hz, 3ph AC
Overall dimensions of feeder 110x22x22
Overall dimensions of hopper/stand: 120x49x49 (10 cubic foot capacity)
Weight of hopper stand and conveyor = 2084 LBS
Demonstration video on file.
All carbon steel construction
Round bottom trough with flared sides and flanged edge
4.5" steel shaft with 3/8" thick flighting
Full length of bolt-on cover with 10" sq. inlet
1/3HP drive with Nord shaft-mount helical gear reducer
Supply: 208-230/460V, 60Hz, 3ph AC
Overall dimensions of feeder 110x22x22
Overall dimensions of hopper/stand: 120x49x49 (10 cubic foot capacity)
Weight of hopper stand and conveyor = 2084 LBS
Demonstration video on file.
Inquire Further with JM Industrial LLC!
