9.5" FMB #Triton, Pull Down Horizontal Mitering Band Saw, 230 FPM, 106" x 1" x .035" Blade, 1.5 HP, 240 V

Description

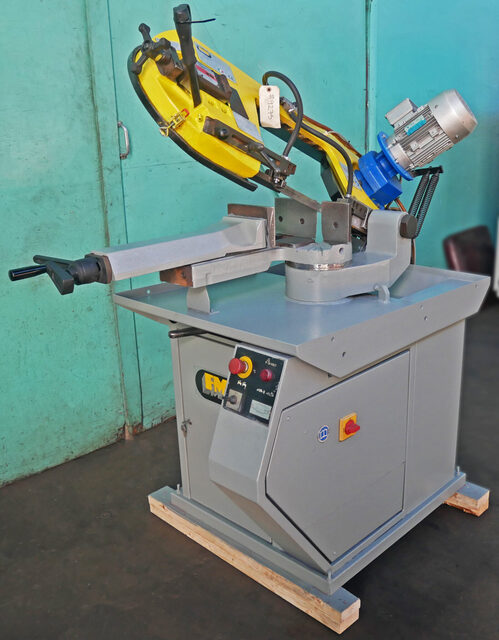

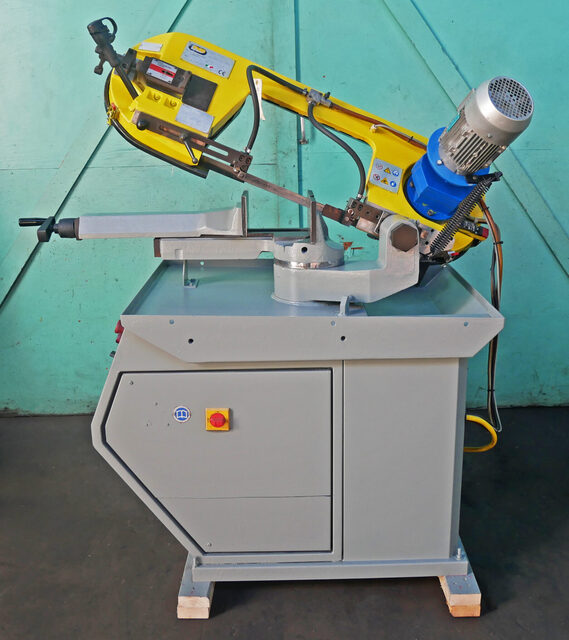

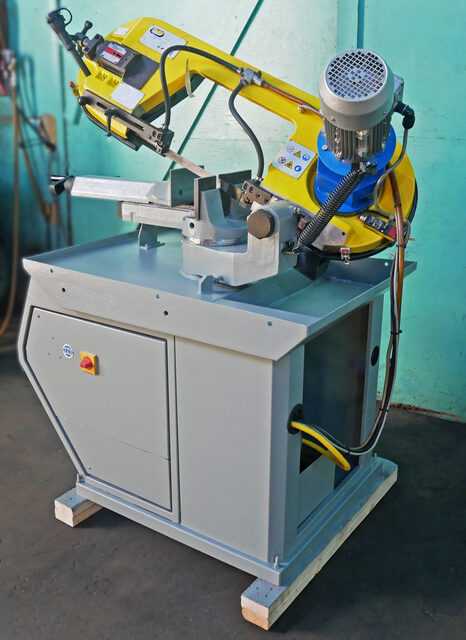

FMB Triton 9 1/2″ Pull Down Horizontal Mitering Band Saw

Inventory # 9275

Model: Triton

S/N: B02501 – Fully Serviced by our In-House Service Team

Specifications:

Cutting Capacity:

Round:

@ 0°: 9 1/2″

@ 45°: 7 1/4″

@ 60°: 4 1/2″

Rectangle A:

@ 0°: 8 1/4″ x 11″

@ 45°: 5 1/2″ x 7″

@ 60°: 4 1/3″ x 4 1/3″

Rectangle B:

@ 0°: 9 1/2″ x 10 1/4″

@ 45°: 8 3/4″ x 6 1/2″

Square:

@ 0°: 9 1/2″ x 9 3/8″

@ 45°: 6 3/4″ x 6 3/4″

@ 60°: 4 1/3″ x 4 1/3″

Blade Size: 106″ x 1″ x .035″

Blade Speed: 230 FPM

Motor: 1.5 HP / 240V / 3PH

Equipment Included:

Brand New True Direct Drive Motor/Gearbox

Helical Gearbox with Gears in Carburized, Hardened Alloy Steel

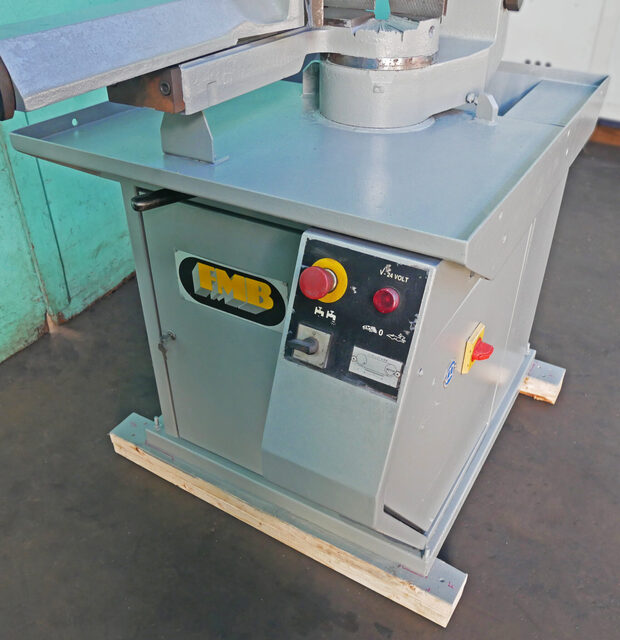

Control Panel on the Front of Machine for Optimal Ergonomics

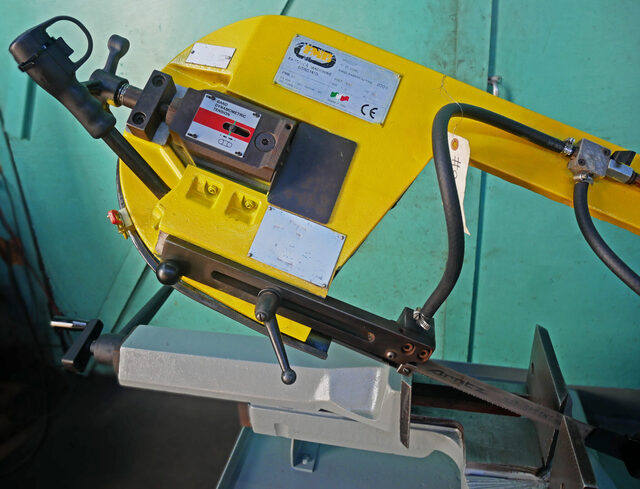

Correct Saw Blade Tension is Cleary Visible with a Yellow Notch

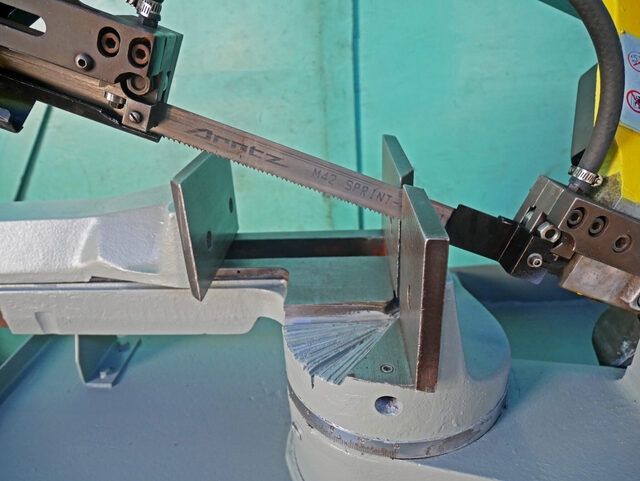

Saw Blade Guide Blocks Provide Cutting Precision and Blade Life

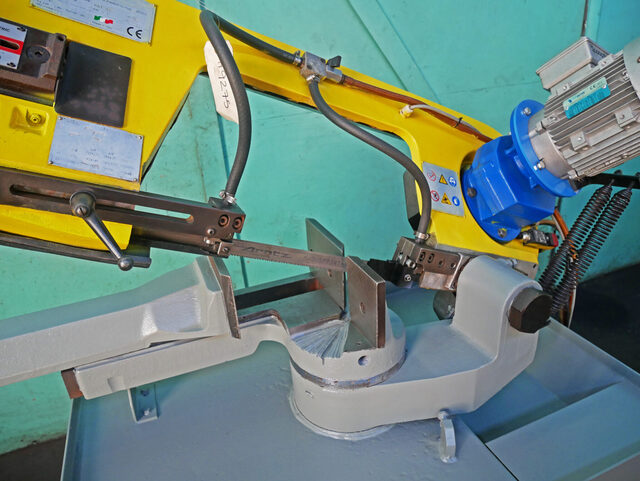

Solid Cast Iron Vice with Manual Feed and Lever for Fast Clamping

Coolant Tank is Accessible for Easy Cleaning and Filling

The cutting angle is readable by a graduated scale

Mechanical Lips for Fast Head Rotation at 0°, 45°, and 60°

East-to-Access Lock/Unlock Lever for Inclined Cutting

Mechanical Specifications:

Dimensions: 32″ x 55″

Weight: approx. 700 lbs.

New Replacement Cost: $7,850.00

FOB Our Baltimore, MD Warehouse
