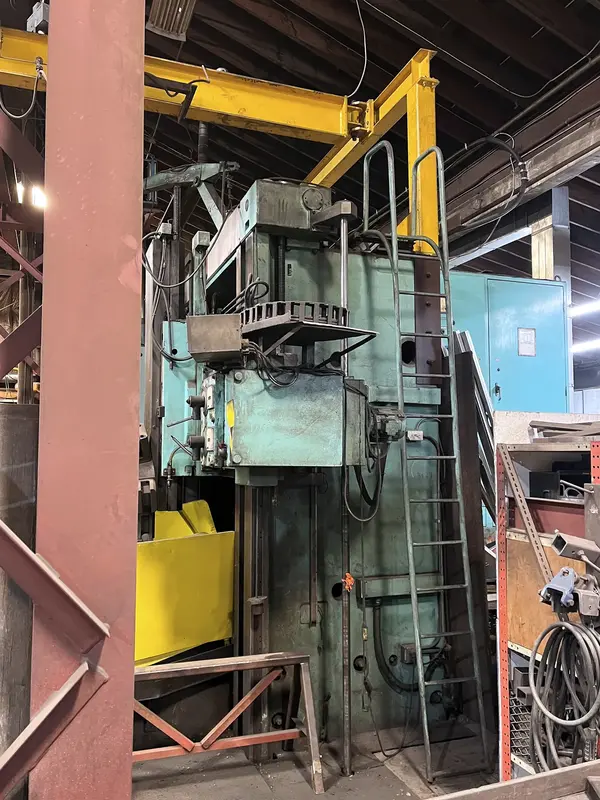

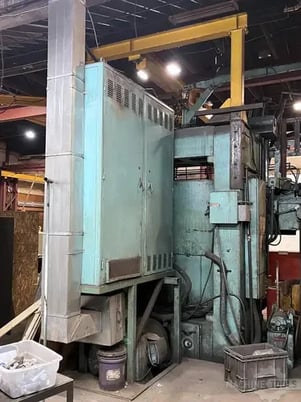

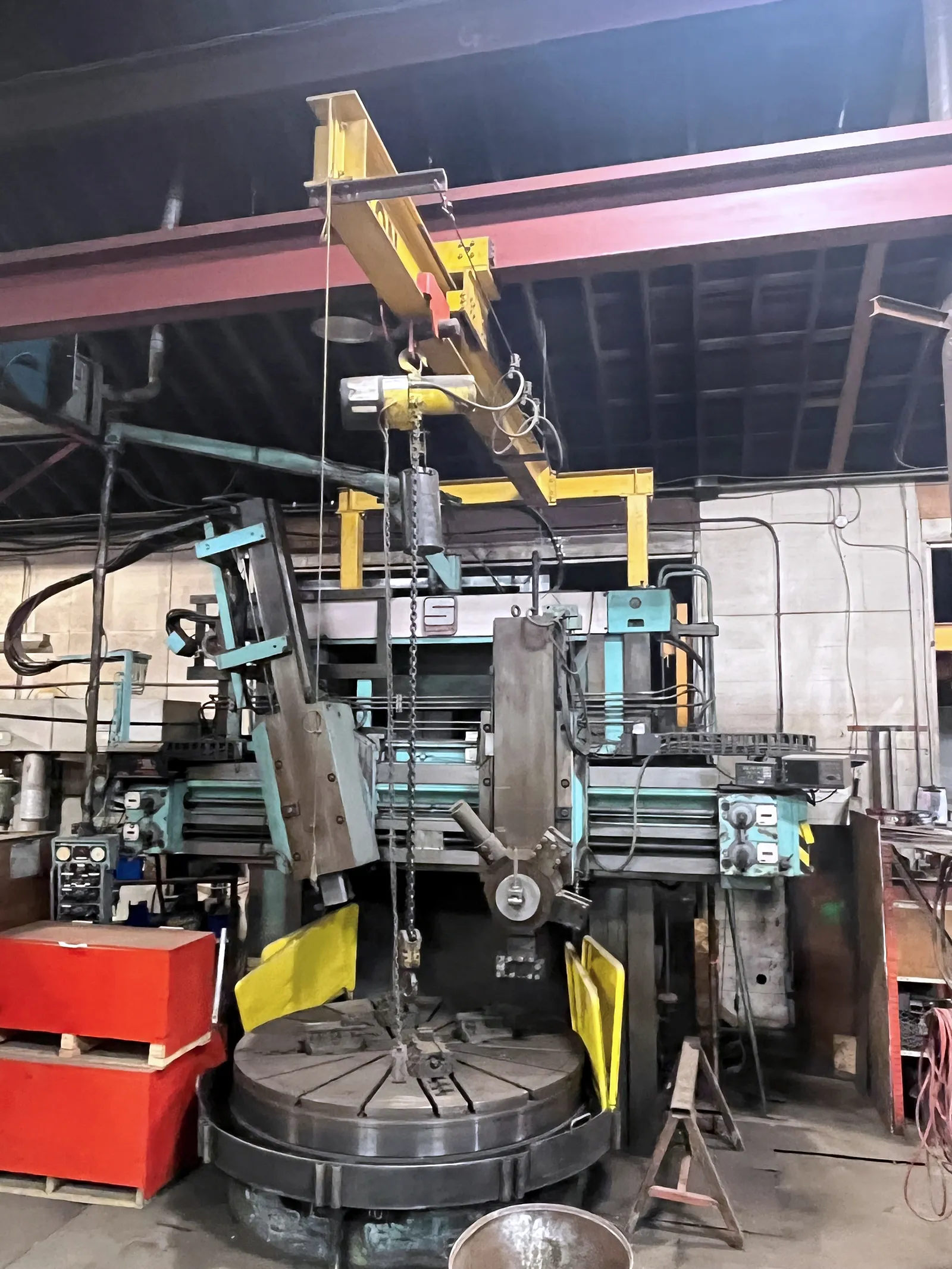

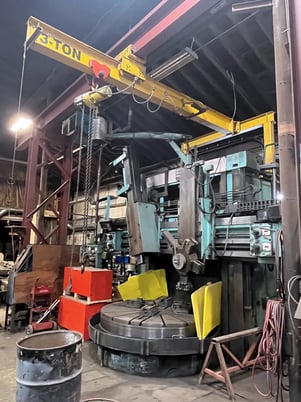

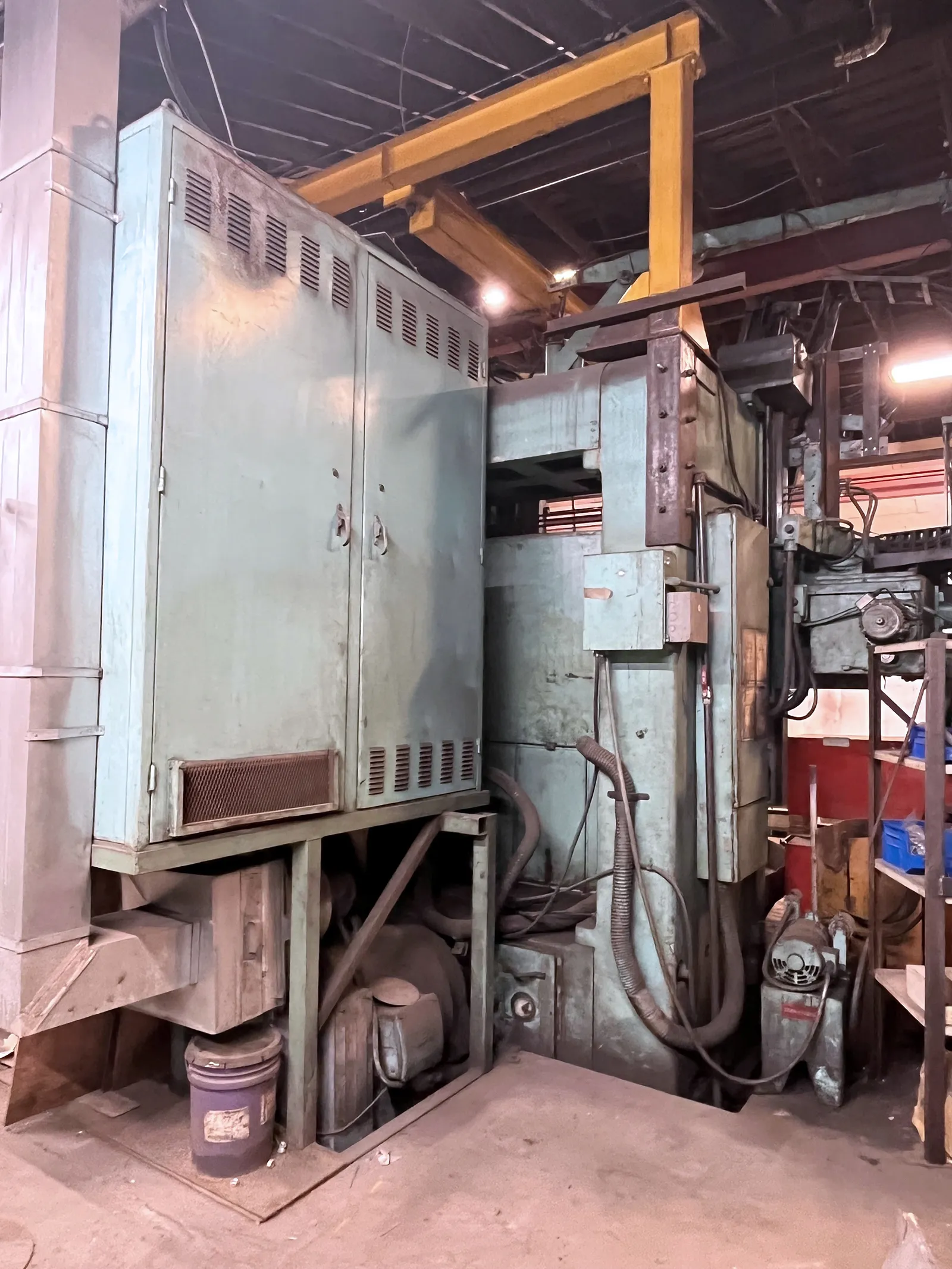

Used Summit SC2000. This pre-owned Vertical Turret Lathe is in great working condition and can be securely delivered to your facility floor. If you have any technical questions about this Summit Vertical Turret Lathe we can review machine specifications. To request a quote, inquire about rigging and trucking or to schedule an inspection, contact us today. Table Diameter: 78.74" Maximum Turning Diameter: 82.67" Maximum Height Under Rail: 59.05" Turret Stroke: 30" Ram Stroke: 36" Maximum Load: 26,500 lbs Head Swivel: 35 Degrees TABLE SPEEDS: 1.55-140 RPM Feeds: .002-.199 IPR Rapid Feed: 98 IPM Main Drive Motor: 89 HP Foot Print: 181"H
Inquire Further with Machinery Marketing International!
Used Summit SC2000. Machine Tool Bids offers plenty of Vertical Turret Lathes and other fabrication and CNC machines for great prices. Contact us if you have any questions about this Summit SC2000 or any of our machines., MACHINE, Table Diameter: 78.74", Maximum Turning Diameter: 82.67", Maximum Height Under ...more

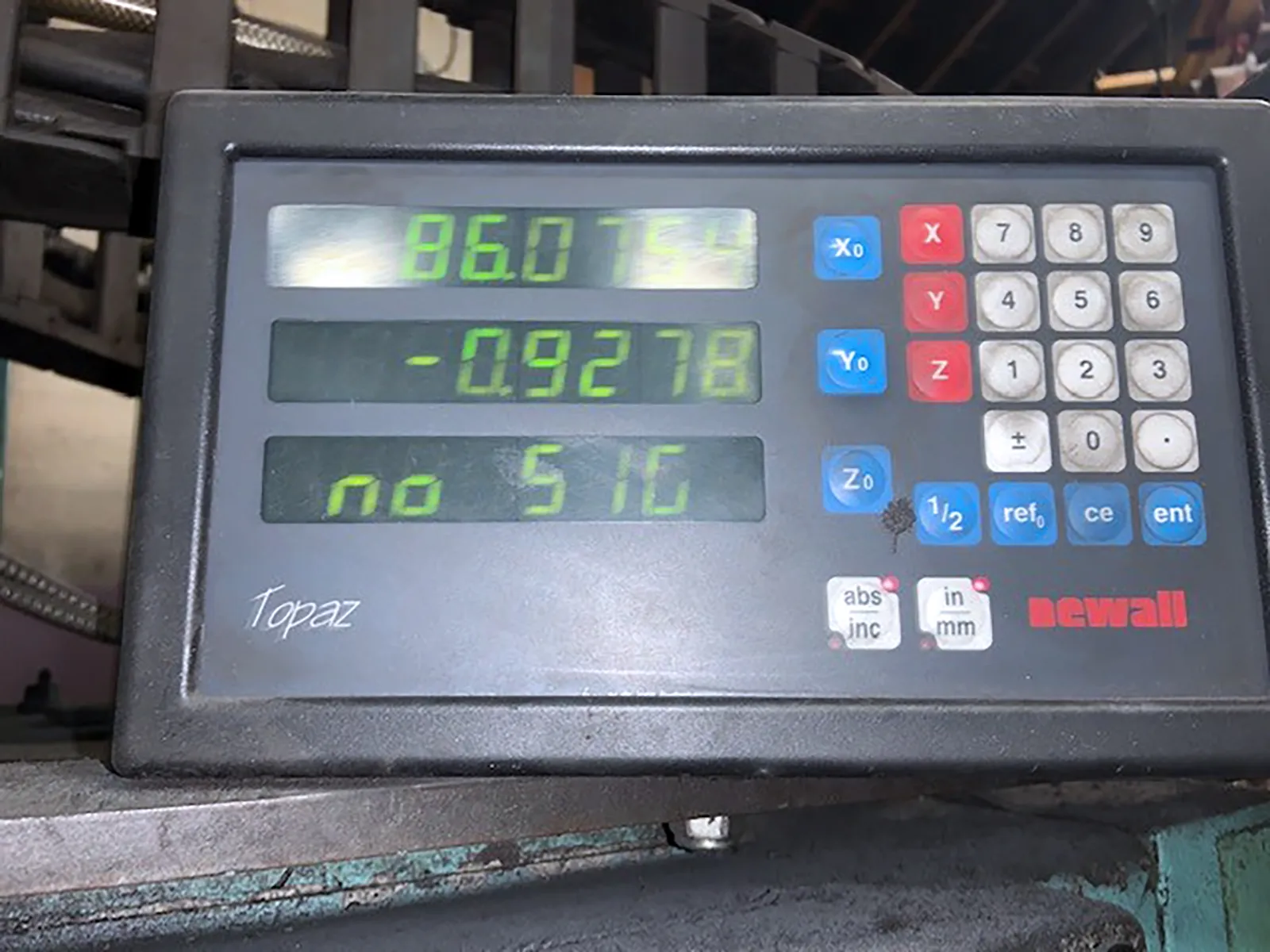

SUMMIT SC2000 Vertical Boring Mill, SUMMIT SC2000, Technical, Power 89 hp, RPM 140 RPM, Swing 82.67, Table Dia 78.74, Work Ht-U/R 59.05, the Following s, Newall Topaz 2-Axis Digital Readout, Full Pendant Controls, Hydraulic Tracer, Left Hand Ram, 5-Position Right Hand Turret, 89 HP Main Drive Motor, NOTE:, Inspect in ...more
