81.6" Erbend #MFH-2115, CNC Motorized Folder, 16 gauge, 4.72" Beam Opening, 3.5"/sec. Clamp, 1 HP Upper Beam, 1.47 HP Folding Beam, new

Description

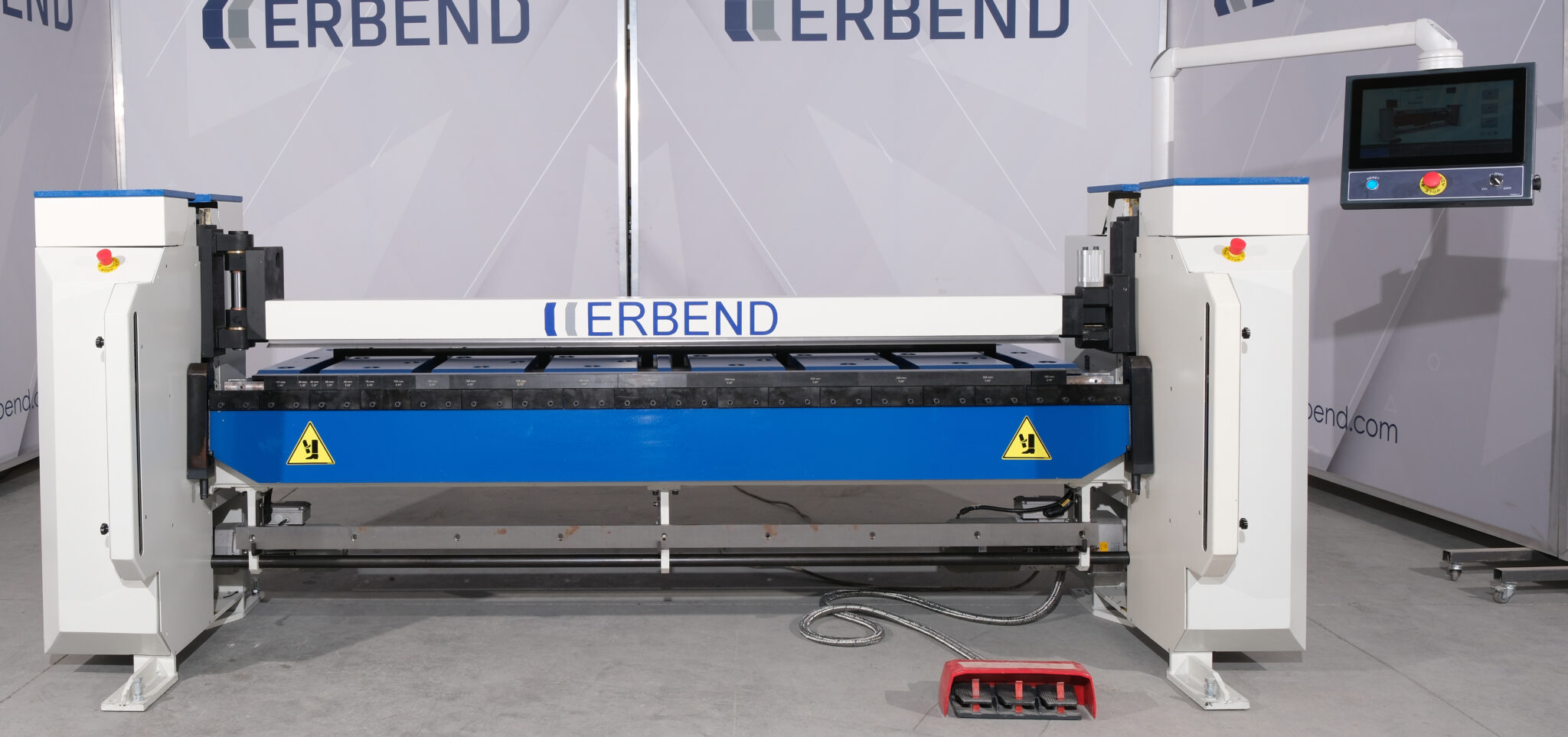

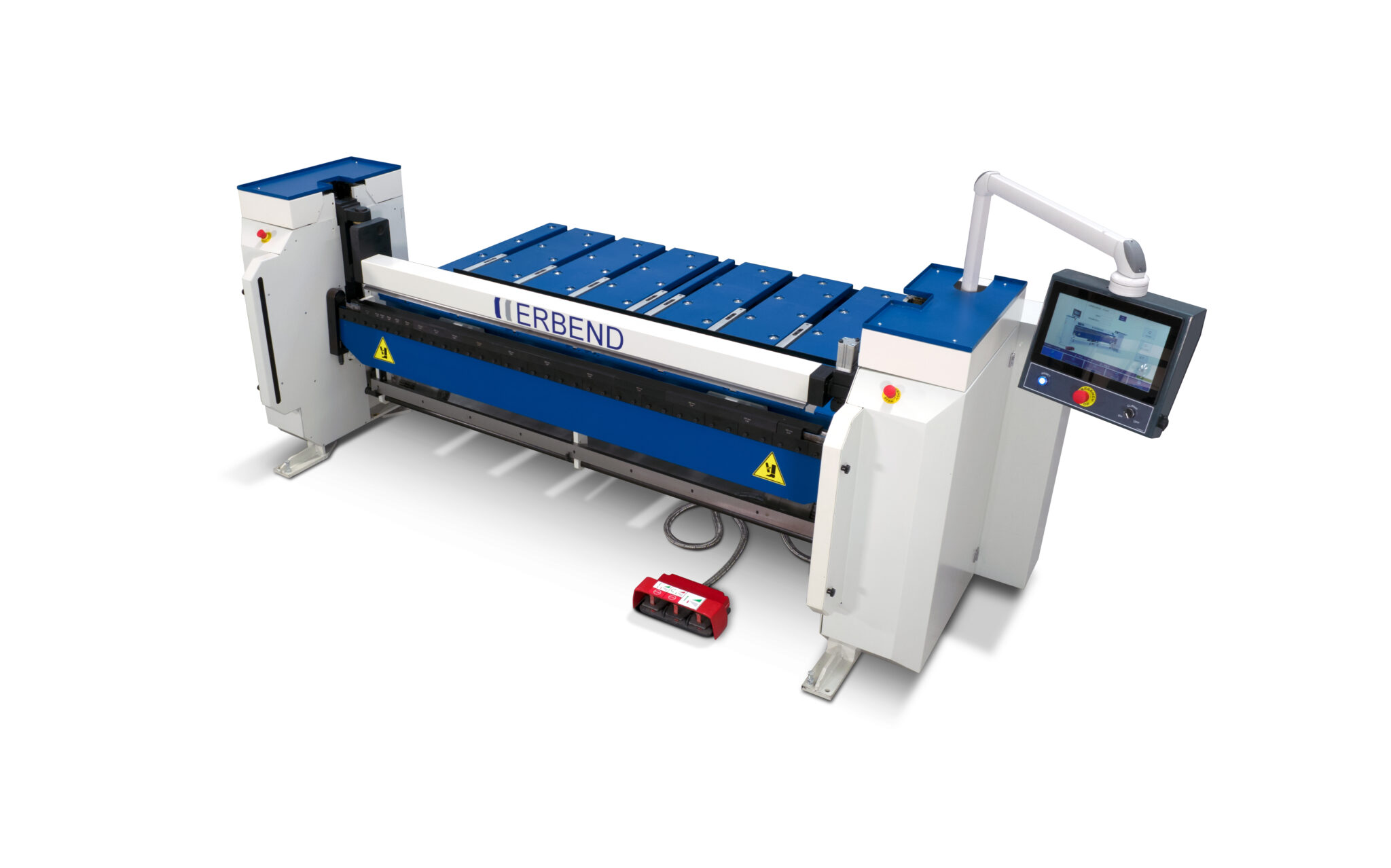

Erbend 6.8′ x 16 Gauge CNC Motorized Folder, MFH 2115

Inventory # 9704

Model: MFH 2115

Made in Turkey

Specifications:

Max. Sheet Length: 6.8′ (2,100mm)

Capacity:

Mild Steel: 16 Gauge (1.5mm)

Stainless Steel: 22 Gauge (0.8mm)

Aluminum: 14 Gauge (2mm)

Upper Beam (Z-Axis):

Beam Opening: 4.72″ with Sharpnose Tool (120mm)

Motor Power: 1 HP (.75 kW)

Power Transmission: Eccentric

Max. Clamping Speed: 3 1/2″ /Sec.

Folding Beam (Y-Axis):

Power Transmission: Chain Gear

Folding Angle: 0 – 150°

Motor Power: 1.47 HP (1.1 kW)

Max. Bending Speed: 100° /Sec.

Folding Beam Height Adjustment (A1-A2-Axis)

Adjustment Gap: 0 – .79″ (0 – 20mm)

Control: Manual

Backgauge System (X-Axis):

Max. Speed: 9.84″ /Sec.

Motor Power: .54 HP

Positioning and Repeatability Accuracy: +/- 0.004″ (0.1mm)

Standard Features & Equipment Included:

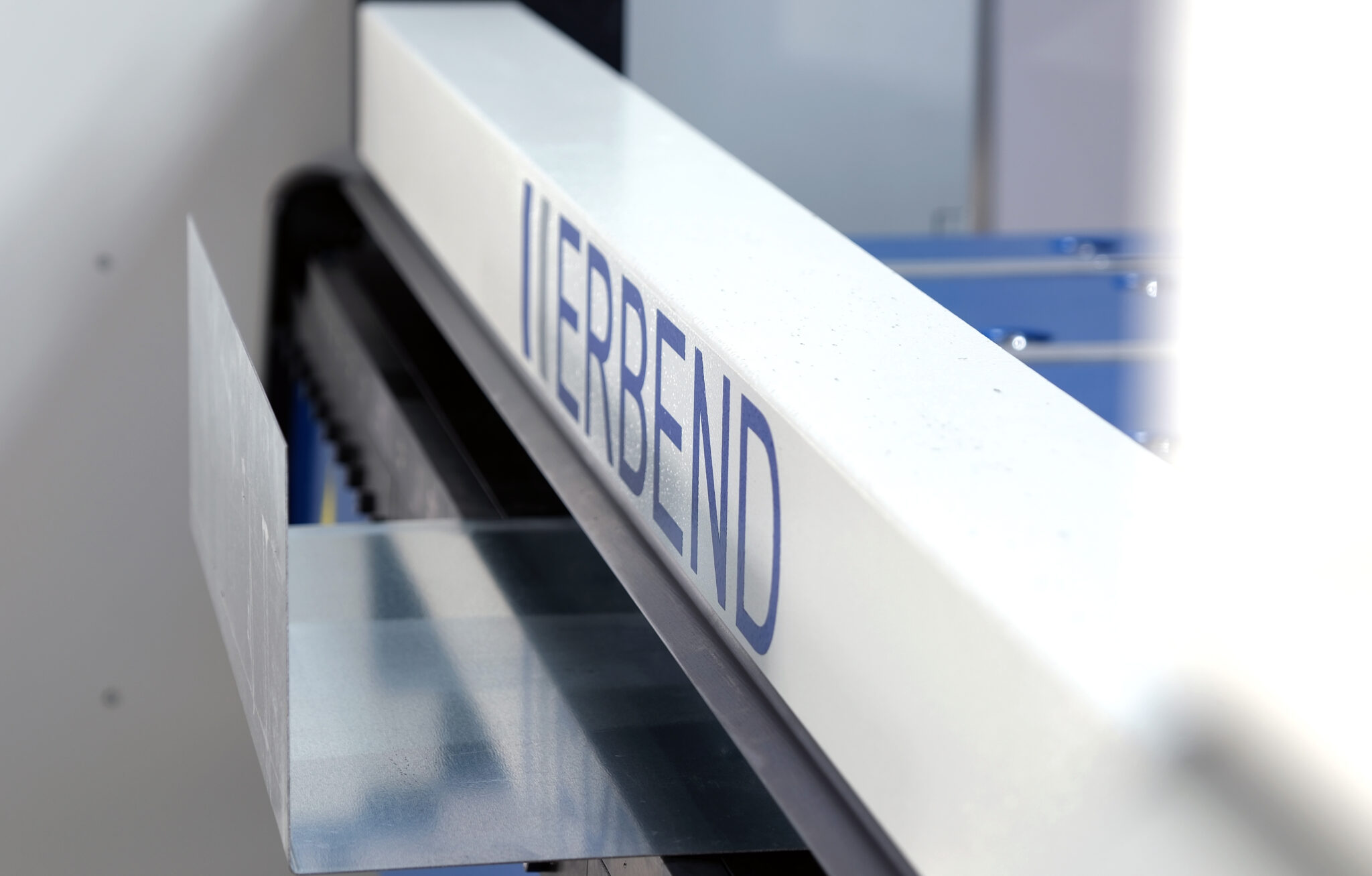

Special Upper Beam

39.3″ (1,000mm) Servo Backgauge System with Special High Gauging Bar

Three Switch Foot Pedal with Emergency Functions

Vertical or Horizontal Front Light Barriers

Tool Holder with Two Fixed Spaces for Keeping Single Piece Sharpnose or Folding Tools

Erfold Basic CNC Line by Line Controller Software

15.6″ Panel Touchscreen Controller on Swivel Arm

Upper Beam Piece Sharp Nose Tool

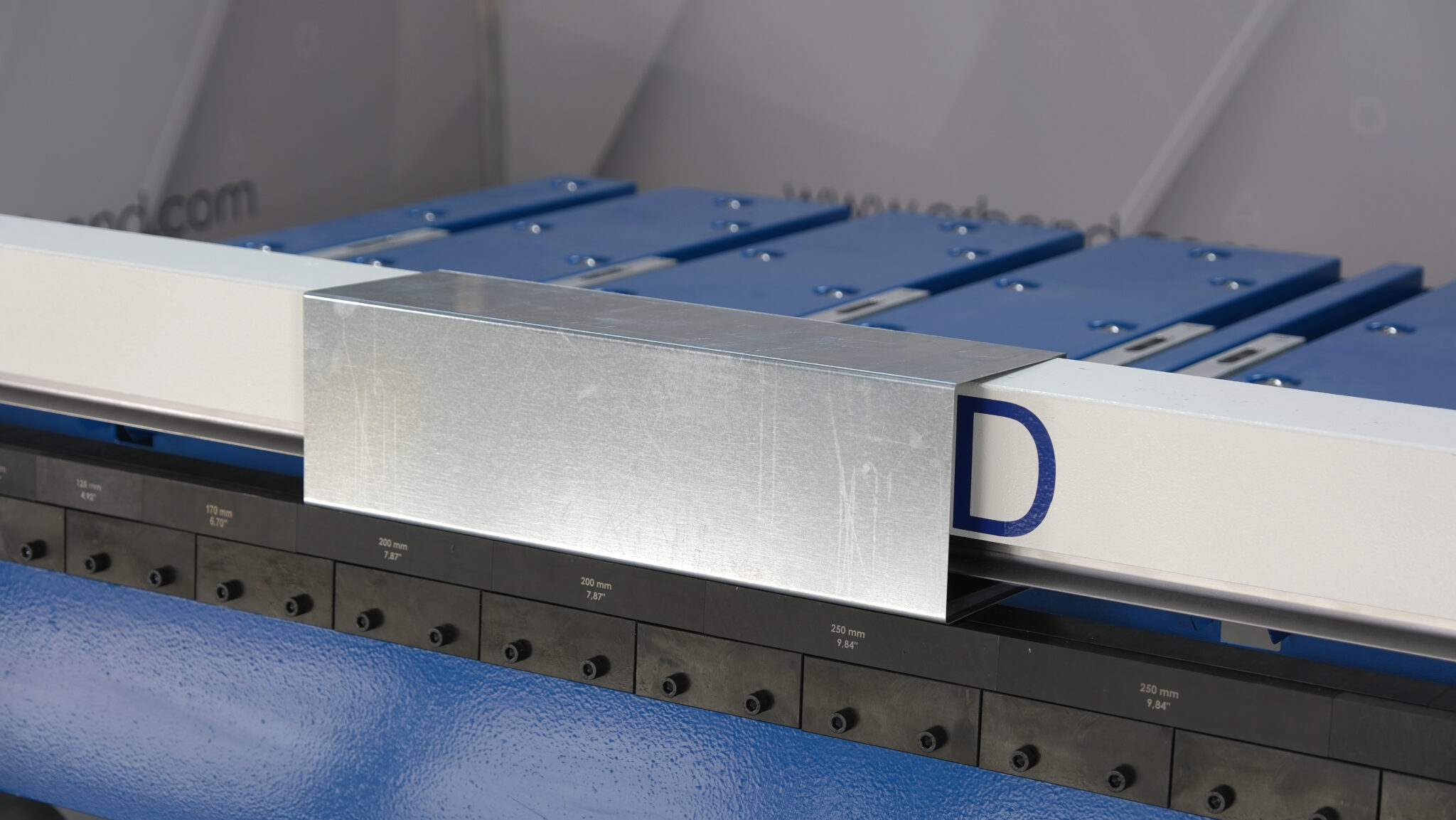

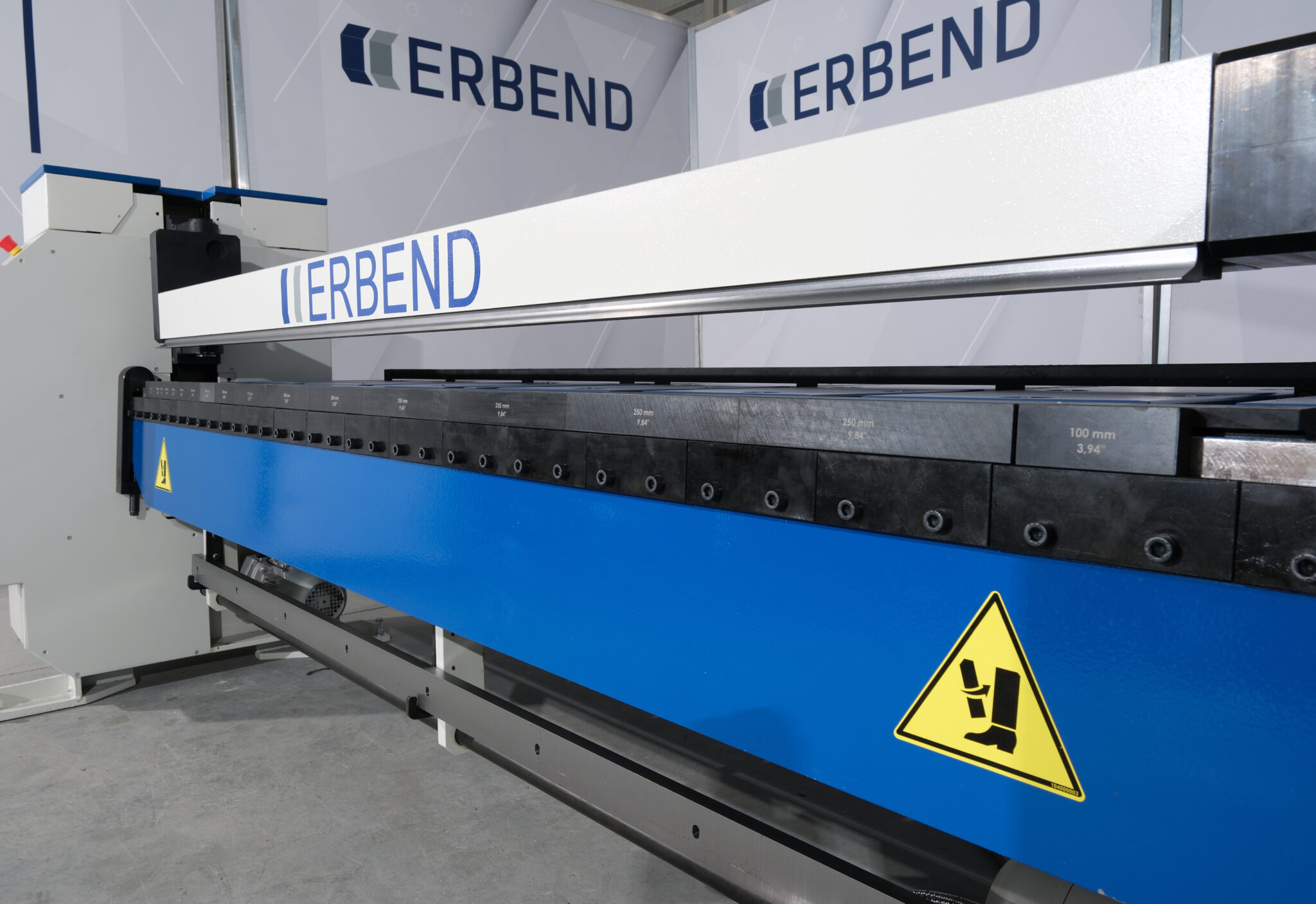

Segmented Folding Beam Tools and Segmented Lower Beam Tool

Manual Folding Beam Adjustment

Mechanical Specifications:

Dimensions: 130″ x 83″ x 65″ H

Weight: approx. 5,070 lbs.

FOB Factory – Contact us for Pricing and Availability
