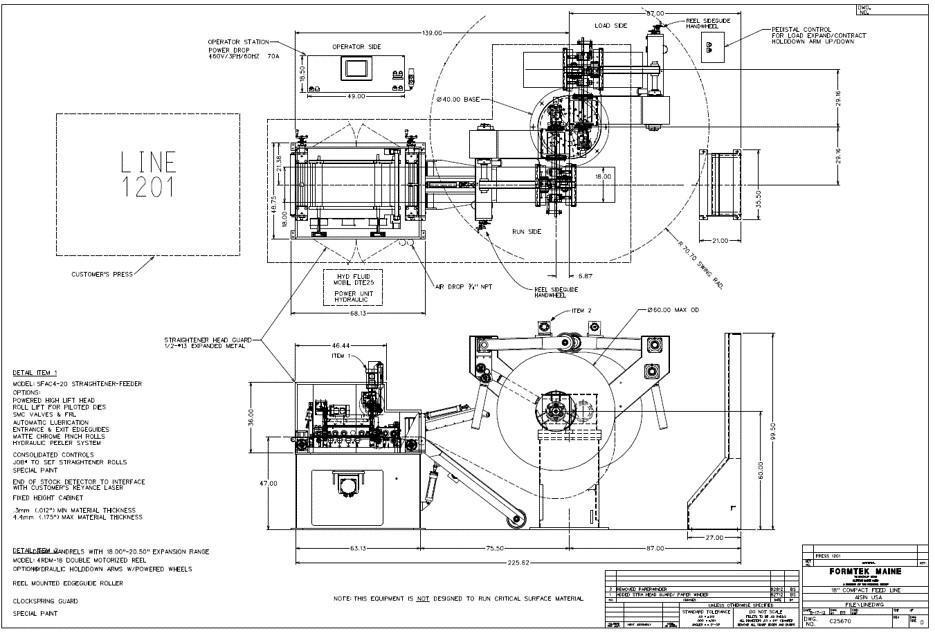

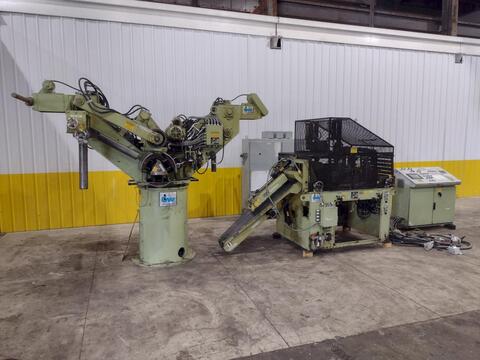

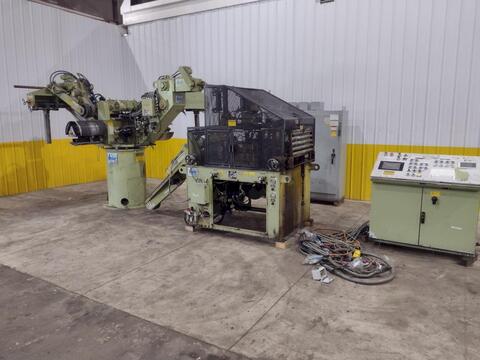

8000 lb. CWP #SFAC4-20, Space-Saver Automatic Coil Feed Line, 18" width x 60" outside dimension Coil, 20" width x 0.175" thick Stock, 3.5" diameter Rolls, 150 FPM, 2012

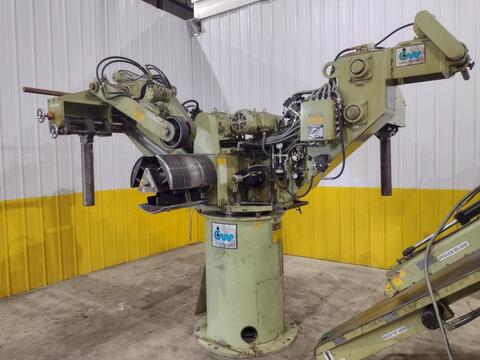

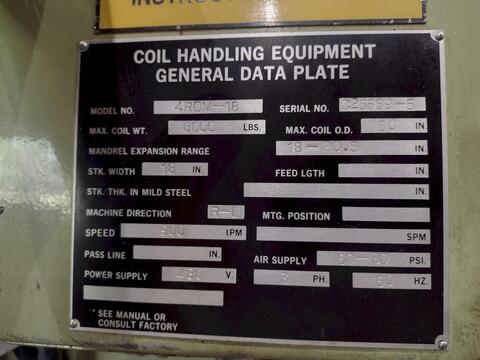

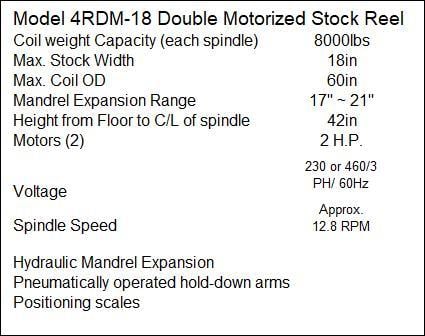

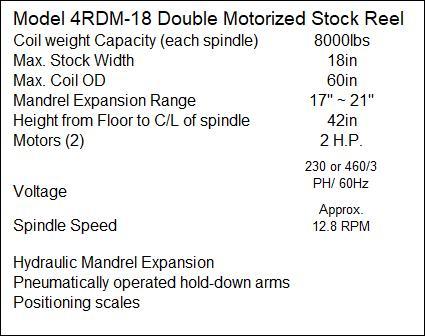

CWP UNCOILER - COIL REEL

SERIAL ...................... C25669-5
NEW ......................... 2012
MODEL ....................... 4RDN-18
COIL WEIGHT CAPACITY ........ 8,000 LBS PER SIDE
COIL WIDTH .................. 18"
COIL OD ..................... 60"
COIL ID EXPANSION RANGE ..... 18" TO 20.5"
EXPANSION ................... HYDRAULIC
FLOOR TO SPINDLE CENTER ..... 42"
SPEED ....................... 900 IPM
DIRECTION ................... RIGHT TO LEFT

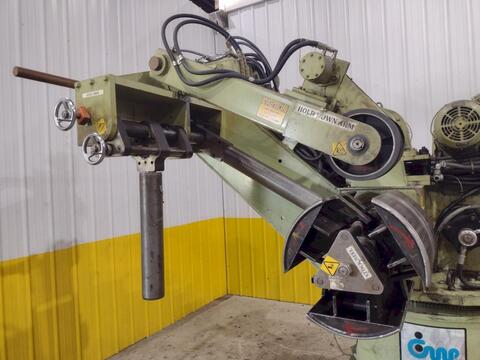

PEELER ARM .................. YES
HOLD DOWN ARMS .............. YES, PNEUMATIC
MOTORS ...................... 2 @ 2 HP

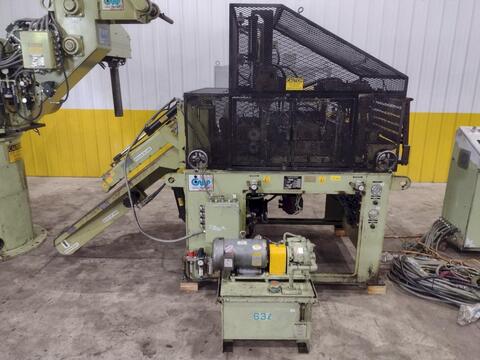

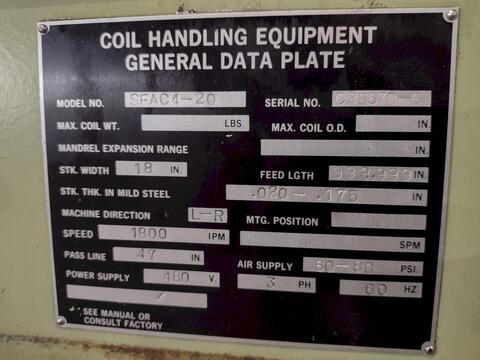

CWP FEEDER / STRAIGHTENER
SERIAL ...................... C25670-S
NEW ......................... 2012
MODEL ....................... DFAC1-20
STOCK WIDTH ................. 20"
STOCK THICKNESS ............. .020" TO .175"
STRAIGHTENING ROLLS ......... 7 (4 OVER 3)
DIAMETER OF ROLLS ........... 3.5"
ROLL CENTERS ................ 4.5"
ENTRY & EXIT GUIDES ......... SELF CENTERING
ENTRY BREAKER ROLLS ......... 4 X 3.5"
EXIT FEED / PINCH ROLLS ..... 2 X 3.5"
FEED ACCURACY ............... .005"
SPEED ....................... 150 FPM MAX
PASS LINE ................... 47"
PEELER ARM .................. YES
THREADING TABLE ............. YES
POSITIONING DRIVE AC SERVO .. YES
CENTRAL LUBE AUTOMATIC ...... YES

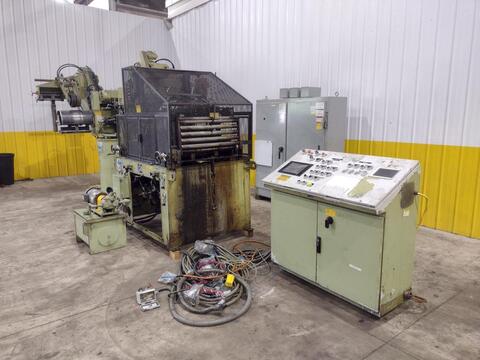

TOUCH SCREEN OPERATOR CONTROL STATION
