8" x 10" IRM #8010, 2-High Rolling Mill, satin, 40 HP gearmotor, 3PH

The IRM 8010 8 × 10 2-High Laboratory Rolling Mill is a precision-engineered rolling solution designed specifically for research, development, and small-batch production environments. Built on a robust industrial platform with laboratory-grade control and flexibility, this mill delivers repeatable, high-accuracy reduction and deformation for metals and alloys under controlled conditions.

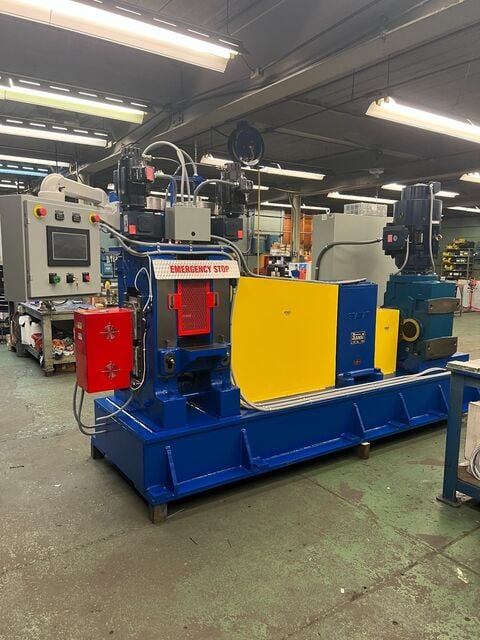

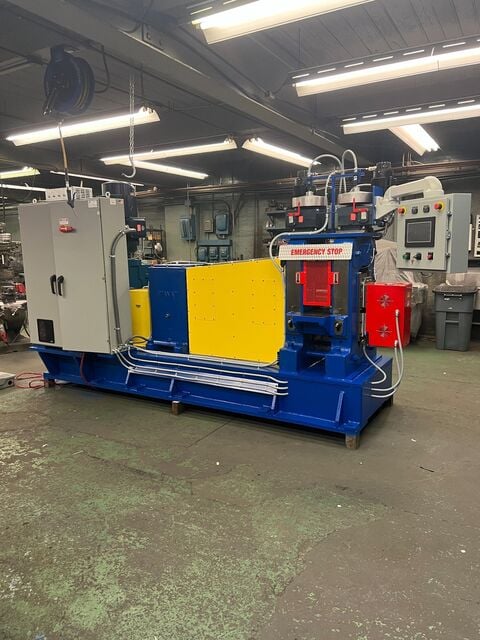

Note: All images shown are simulated renderings provided for reference and illustrative purposes only. Final machine configuration, layout, and components may vary based on customer requirements and engineering specifications.
Key Features & Capabilities
Precision Roll Geometry: 8 (203 mm) diameter rolls with a 10 (254 mm) effective working width provide an ideal balance of material contact and force distribution for laboratory-scale samples and pilot trials.
Advanced Roll Adjustment: Dual electro-mechanical screwdowns with VFD control and encoder feedback allow fine, repeatable roll gap adjustmentcritical for experimental rolling schedules and metallurgical studies.
Power & Performance: Driven by a 40 HP inverter-duty AC gearmotor and designed for separating forces up to approximately 250,000 lbs, the IRM 8010 is capable of processing a wide range of ferrous and non-ferrous alloys.
Modern Drive & Controls: Variable-speed AC inverter control enables smooth, controlled rolling speeds suitable for research, process optimization, and material characterization work.
Safety & Laboratory Usability: Integrated safety guarding at nip points and entry/exit areas supports safe operation in laboratory and university environments while maintaining clear material flow.
Typical Applications
The IRM 8010 is well suited for:
Metallurgical and materials research
Process development and pass schedule optimization
Pilot-scale rolling trials
Alloy development and deformation studies
Academic, national laboratory, and industrial R&D environments
By combining industrial-grade mill construction with precise, research-focused controls, the IRM 8010 provides a reliable and adaptable platform for laboratories requiring accurate, repeatable rolling results.
IRM 8010 8" X 10" 2-HIGH ROLLING MILL
SPECIFICATIONS:
Roll Diameter........... 8"
Roll Width.............. 10"
Roll Finish............. Satin
Roll Gap Adjustment..... Dual Electro-Mechanical Screwdowns with VFD & Encoder Feedback
Mill Power.............. New 40 HP Inverter Duty AC Gearmotor
Mill Separating Force... Approximately 250,000 LBS
Mill Voltage............ Customer Choice
Mill Phase.............. 3-Phase
Mill Controls........... New Variable Speed AC Inverter
Mill Tables............. Tables will be installed on the entry and exit of the mill.
Mill Safety............. All nip points will be guarded.
