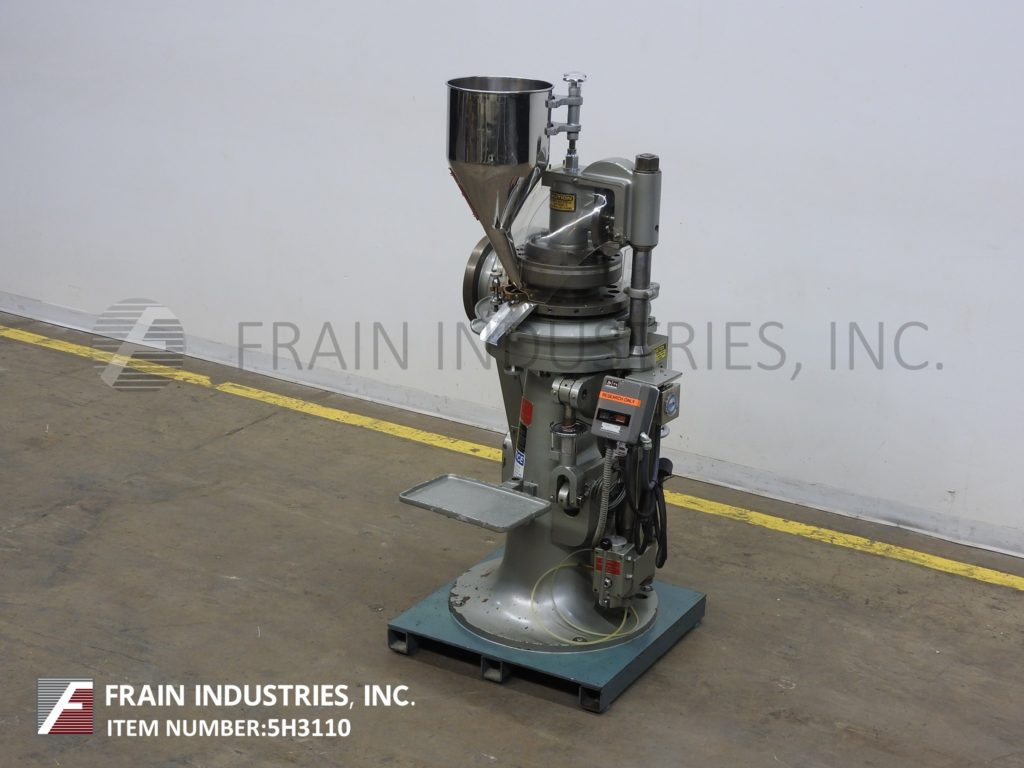

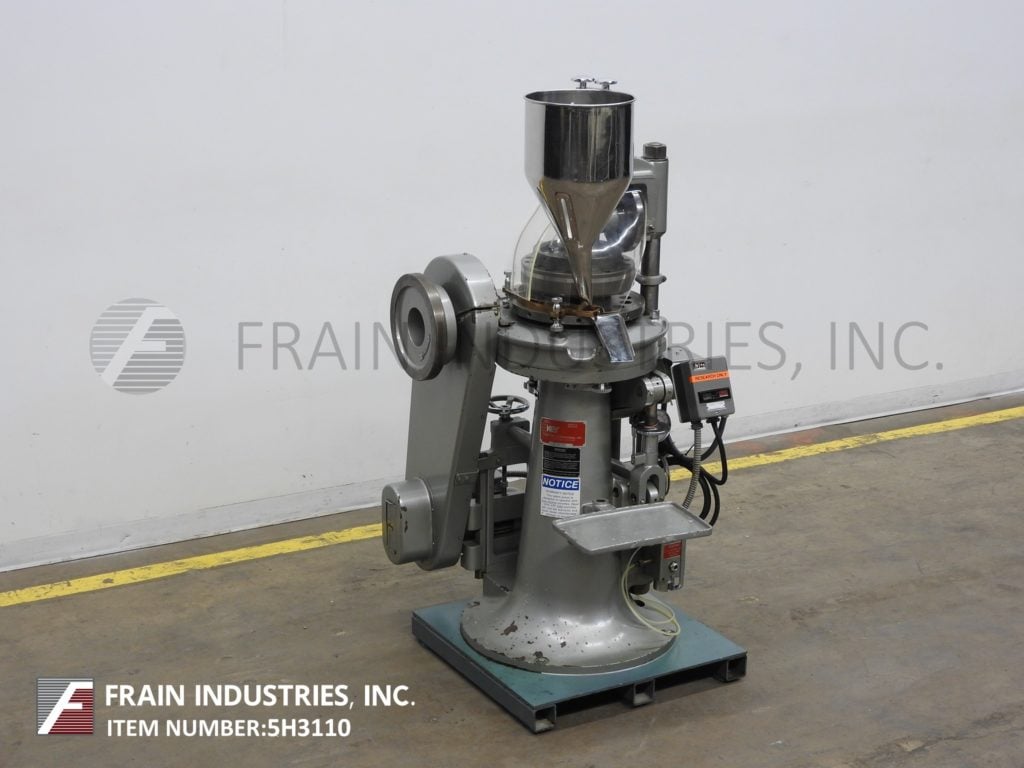

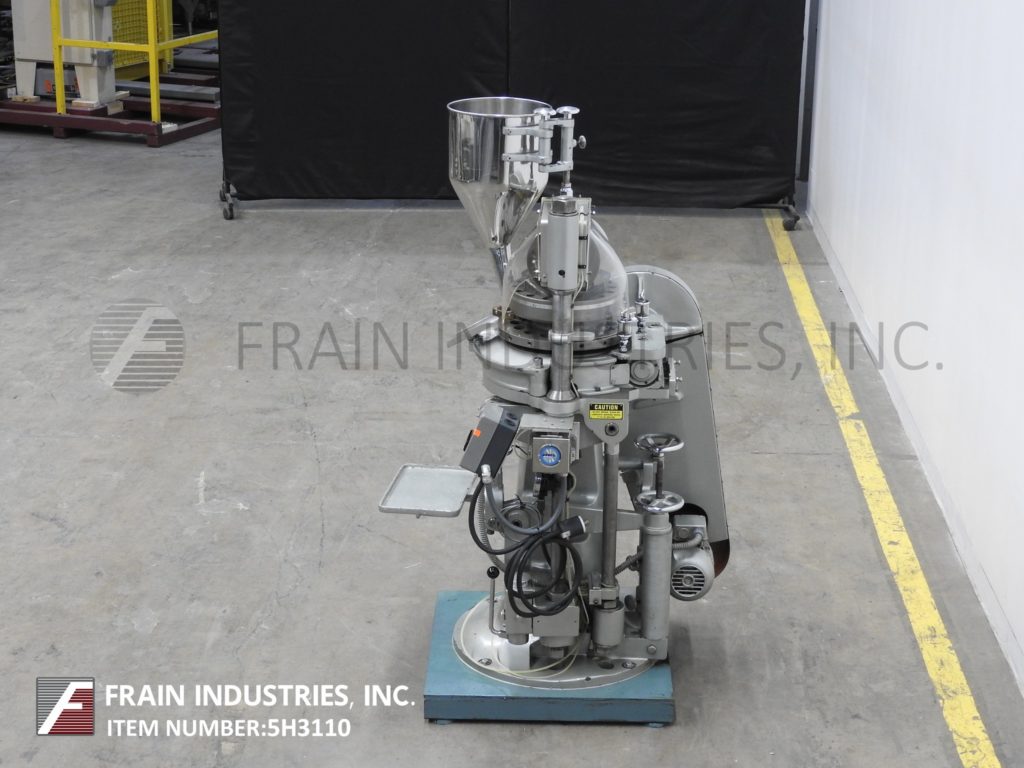

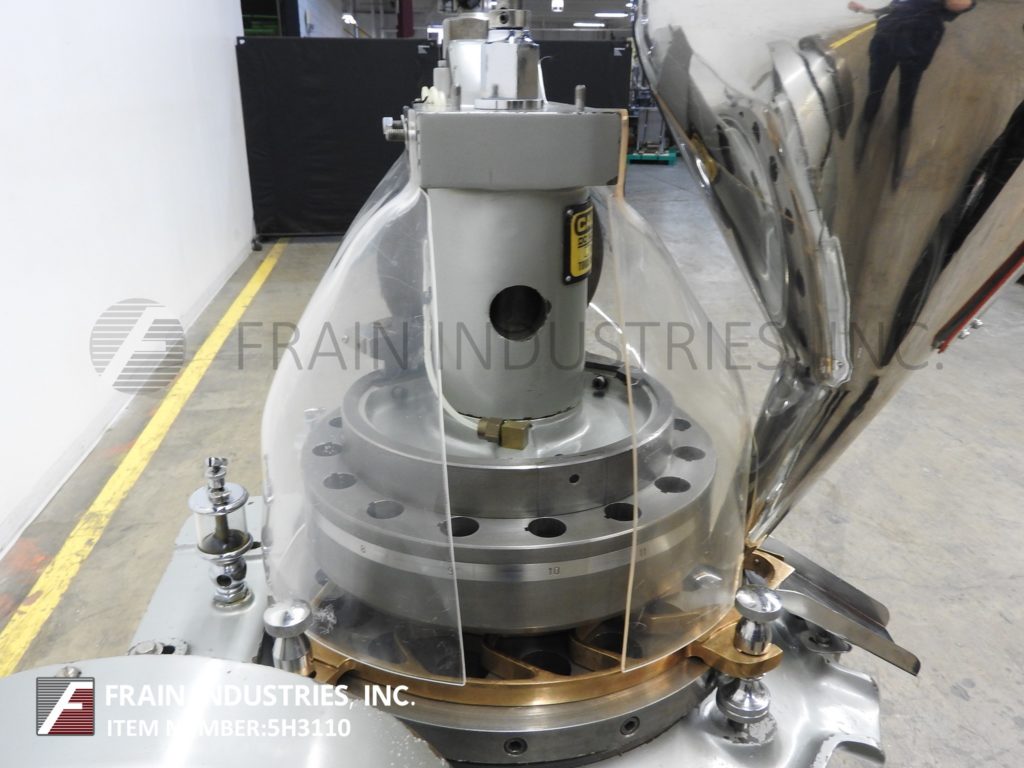

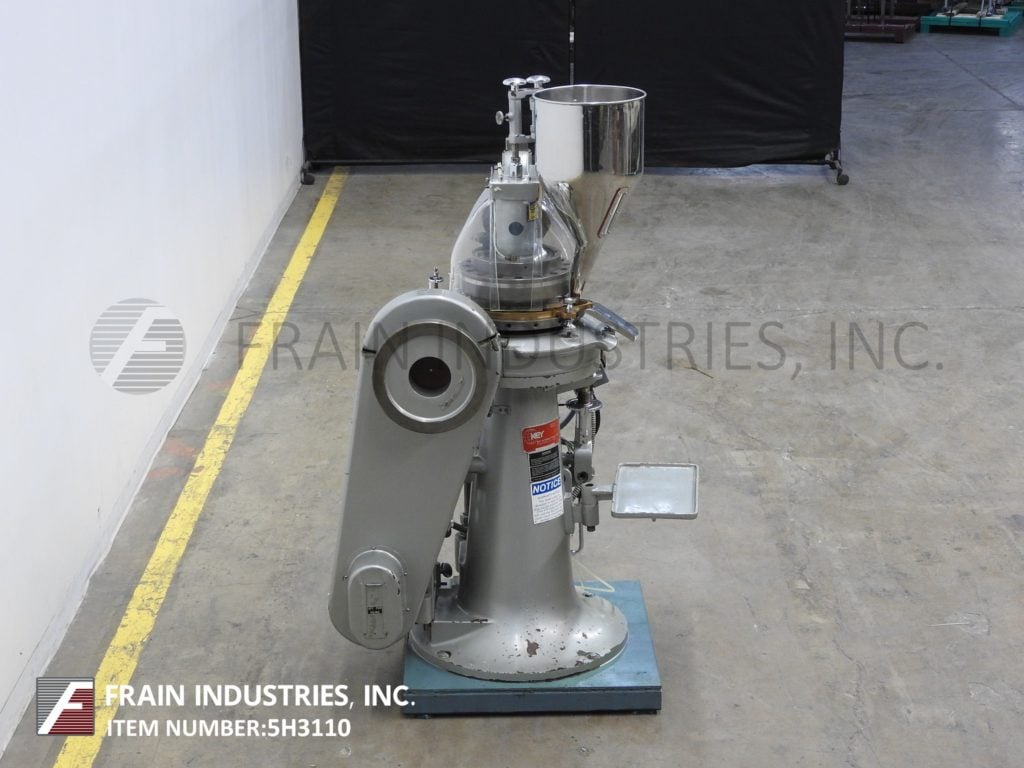

8.5 Ton, Key International #DC-16, 16 station rotary tablet press, 450-770 tablets/min, 15/16" max tablet diameter, 13/16" max fill (3 available)

Key International Model DC-16, automatic, 16 station, rotary tablet press, rated from 450 to 770 tablets per minute – depending on materials, application, machine configuration and environment being run in. Maximum operating pressure of 8.5 tons. Maximum tablet OD round: 15/16", or Maximum tablet capsule shaped length: 1". Maximum fill depth: 13/16". Upper plate has (16) 1" ID keyed dies and lower plate has (16) 1-5/8" ID round dies. 12" OD x 25" Deep stainless steel product hopper with brass feed frame and 16" long x 10" wide discharge plate. Vari-speed belt to motor drive, push button start and stop controls and 24" OD pedestal style base. Mounted on 30" long x 30" wide forkable platform frame. Customer to supply tooling.

OAD: 46" L x 40" W x 71" H With Hopper
