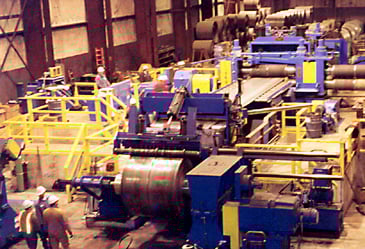

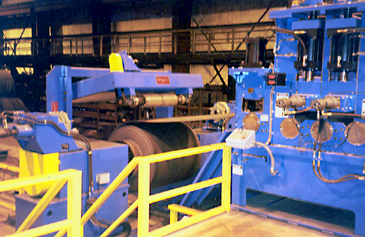

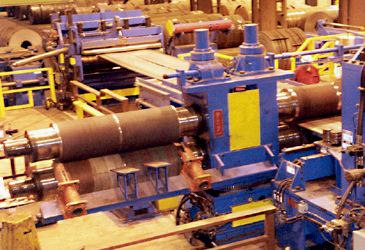

Description
Manufacturer: Braner
Year: 2009
Max Coil Width: 75"
Coil ID: 20" - 24"
Coil OD: 76"
Gauge Range:
Cut Capacity Chart - 90,000 PSI Shear Strength Material
Strip Thickness/inches Push Pull/High Gear Push Pull/Low Gear
.625 inches 3
.500 5
.375 3 9
.312 5 10
.250 8 11
.187 12 12
.150 15 15
.125 18 18
Cut Capacity Chart - 96,000 PSI Shear Strength Material
Strip Thickness/inches Push Pull/High Gear Push Pull/Low Gear
.625 inches 3
.500 5
.375 3 8
.312 4 9
.250 7 10
.187 12 12
.150 14 14
.125 17 17
Cut Capacity Chart - 50,000 PSI Shear Strength Material
Strip Thickness/inches Push Pull/High Gear Push Pull/Low Gear
.625 inches 6
.500 9
.375 7 15
.312 10 18
.250 15 20
.187 20 20
.150 20 20
.125 20 20
Cut Capacity Chart - 75,000 PSI Shear Strength Material
Strip Thickness/inches Push Pull/High Gear Push Pull/Low Gear
.625 inches 4
.500 6
.375 4 10
.312 6 13
.250 10 15
.187 17 17
.150 20 20
.125 20 20
Line Includes:
-90,000 Lbs. Three (3) Position Entry Storage Saddles
-90,000 Lbs. Pit Type Coil Loading Car
-90,000 Lbs. Dual Cone
-Free Standing Floor Mounted Hold Down With Hardened Steel Roll
-Telescoping Peeler Blade
-Hardened Steel Entry Pinch Rolls
-Hydraulic Cylinder Positioned Adjustable Side Guides
-Automatic Edge Guide
-Five (5) Roll Flattener With Quick Opening Rolls
-Entry Crop Shear Tail Feed Rolls
-Hydraulic Guillotine Downcut Entry Crop Shear
-Scrap Gate
-Powered Scrap Car
-Hydraulic Cylinder Positioned Side Guides
-Three (3) Head 14.000 Inch Arbor X 19.000 Inch OD Knife Turret Slitter 400HP DC
-Scrap Winder (Not Available as part of package )
-Pivoting Slitter Table
-Slitter / Recoiler Threading Table
-Free Standing Overarm Separator With One (1) Spindle
-One Spare Overarm Separator Spindle
-90,000 Pound 30” Recoiler 400HP DC
-Recoiler Tail Hold Downs
-90,000 Pound Floor Level Coil Unloading Car
-Coil Unloading Car Electronic Scale
-90,000 Pound Four (4) Arm Exit Storage Turnstile
-Water Recirculating System
-Hydraulic System
-Electrical System
Year: 2009
Max Coil Width: 75"
Coil ID: 20" - 24"
Coil OD: 76"
Gauge Range:
Cut Capacity Chart - 90,000 PSI Shear Strength Material
Strip Thickness/inches Push Pull/High Gear Push Pull/Low Gear
.625 inches 3
.500 5
.375 3 9
.312 5 10
.250 8 11
.187 12 12
.150 15 15
.125 18 18
Cut Capacity Chart - 96,000 PSI Shear Strength Material
Strip Thickness/inches Push Pull/High Gear Push Pull/Low Gear
.625 inches 3
.500 5
.375 3 8
.312 4 9
.250 7 10
.187 12 12
.150 14 14
.125 17 17
Cut Capacity Chart - 50,000 PSI Shear Strength Material
Strip Thickness/inches Push Pull/High Gear Push Pull/Low Gear
.625 inches 6
.500 9
.375 7 15
.312 10 18
.250 15 20
.187 20 20
.150 20 20
.125 20 20
Cut Capacity Chart - 75,000 PSI Shear Strength Material
Strip Thickness/inches Push Pull/High Gear Push Pull/Low Gear
.625 inches 4
.500 6
.375 4 10
.312 6 13
.250 10 15
.187 17 17
.150 20 20
.125 20 20
Line Includes:
-90,000 Lbs. Three (3) Position Entry Storage Saddles
-90,000 Lbs. Pit Type Coil Loading Car
-90,000 Lbs. Dual Cone
-Free Standing Floor Mounted Hold Down With Hardened Steel Roll
-Telescoping Peeler Blade
-Hardened Steel Entry Pinch Rolls
-Hydraulic Cylinder Positioned Adjustable Side Guides
-Automatic Edge Guide
-Five (5) Roll Flattener With Quick Opening Rolls
-Entry Crop Shear Tail Feed Rolls
-Hydraulic Guillotine Downcut Entry Crop Shear
-Scrap Gate
-Powered Scrap Car
-Hydraulic Cylinder Positioned Side Guides
-Three (3) Head 14.000 Inch Arbor X 19.000 Inch OD Knife Turret Slitter 400HP DC
-Scrap Winder (Not Available as part of package )
-Pivoting Slitter Table
-Slitter / Recoiler Threading Table
-Free Standing Overarm Separator With One (1) Spindle
-One Spare Overarm Separator Spindle
-90,000 Pound 30” Recoiler 400HP DC
-Recoiler Tail Hold Downs
-90,000 Pound Floor Level Coil Unloading Car
-Coil Unloading Car Electronic Scale
-90,000 Pound Four (4) Arm Exit Storage Turnstile
-Water Recirculating System
-Hydraulic System
-Electrical System
