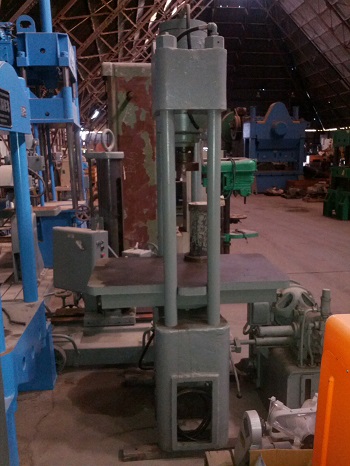

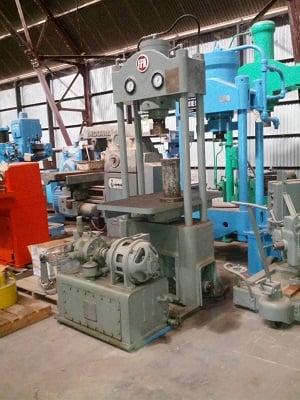

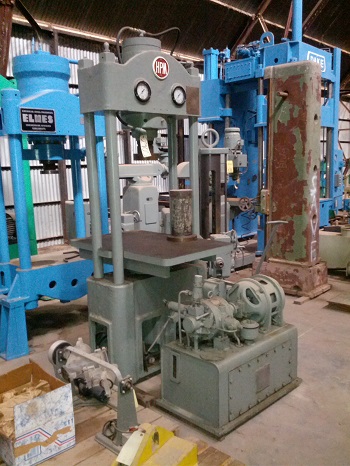

75 Ton, HPM, 4-Post Hydraulic Press, 9" stroke, 25" daylight, 48" x 29" bed,

(1) Used 75-Ton HPM 4-Post Hydraulic Press; S/N 41-240
Specifications:
Capacity..............................75 Tons
Bed Area..............................48" L-R x 29" F-B
Slide Area............................7 1/2" diameter
Distance Between Posts................29" L-R x 29" F-B
Stroke................................9"
Daylight Opening......................25"
Distance Floor to Bed.................39 9/16"
Tie Rod Diameter .....................3"
Number of Ram Cylinders...............1
Type of Ram Cylinders.................Double-Acting
Diameter of Ram Cylinders.............1 1/2"
Ram (Slide) Speeds:
Pressing.........................
Advance..........................
Return...........................
Hydraulic System:
Manufacturer & Type..............
Power & Pressure.................
Fluid Capacity...................44 gallons (est.)
Line or Gauge Pressure................2,300 lbs.
Electrical Characteristics............220/440 VAC / 3 Phase / 60 Cycle
Equipped With:
Complete Electrical Controls
Complete Hydraulic System with Reservoir/Tank
Overall Dimensions....................48" W x 103" L x 44" H
Weight................................6,000 lbs (est)
F.O.B.................................Casa Grande, AZ
