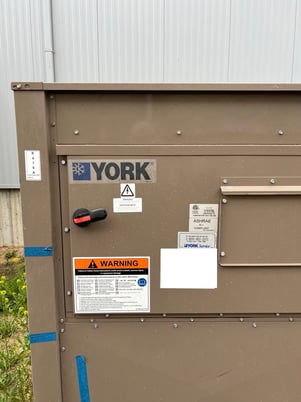

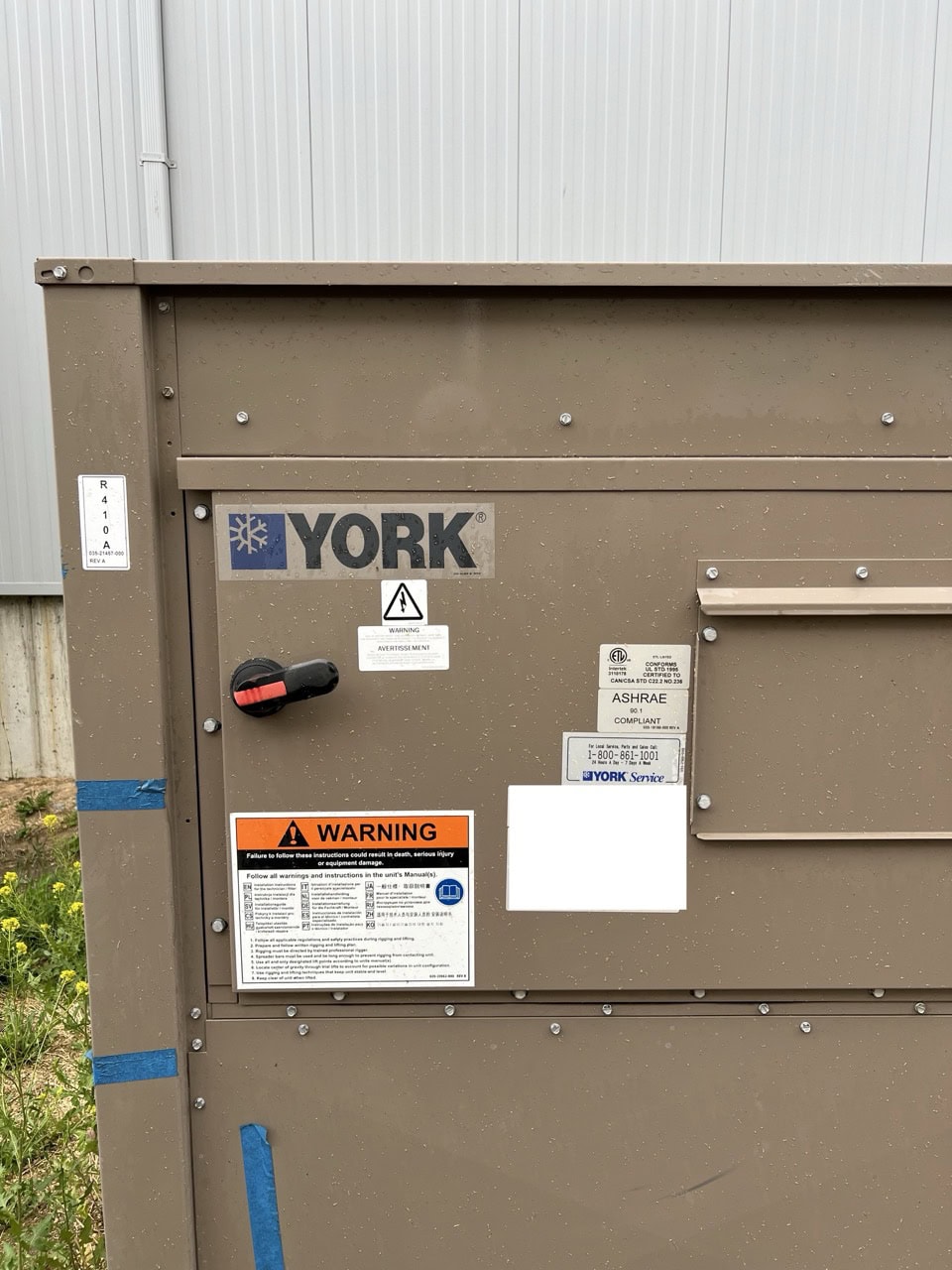

72 Ton, York #YCUL0072EE, Rooftop Hvac Unit, Dual-circuit Air-cooled Chiller, 460 V., R-410a, 2019

Equipment Overview

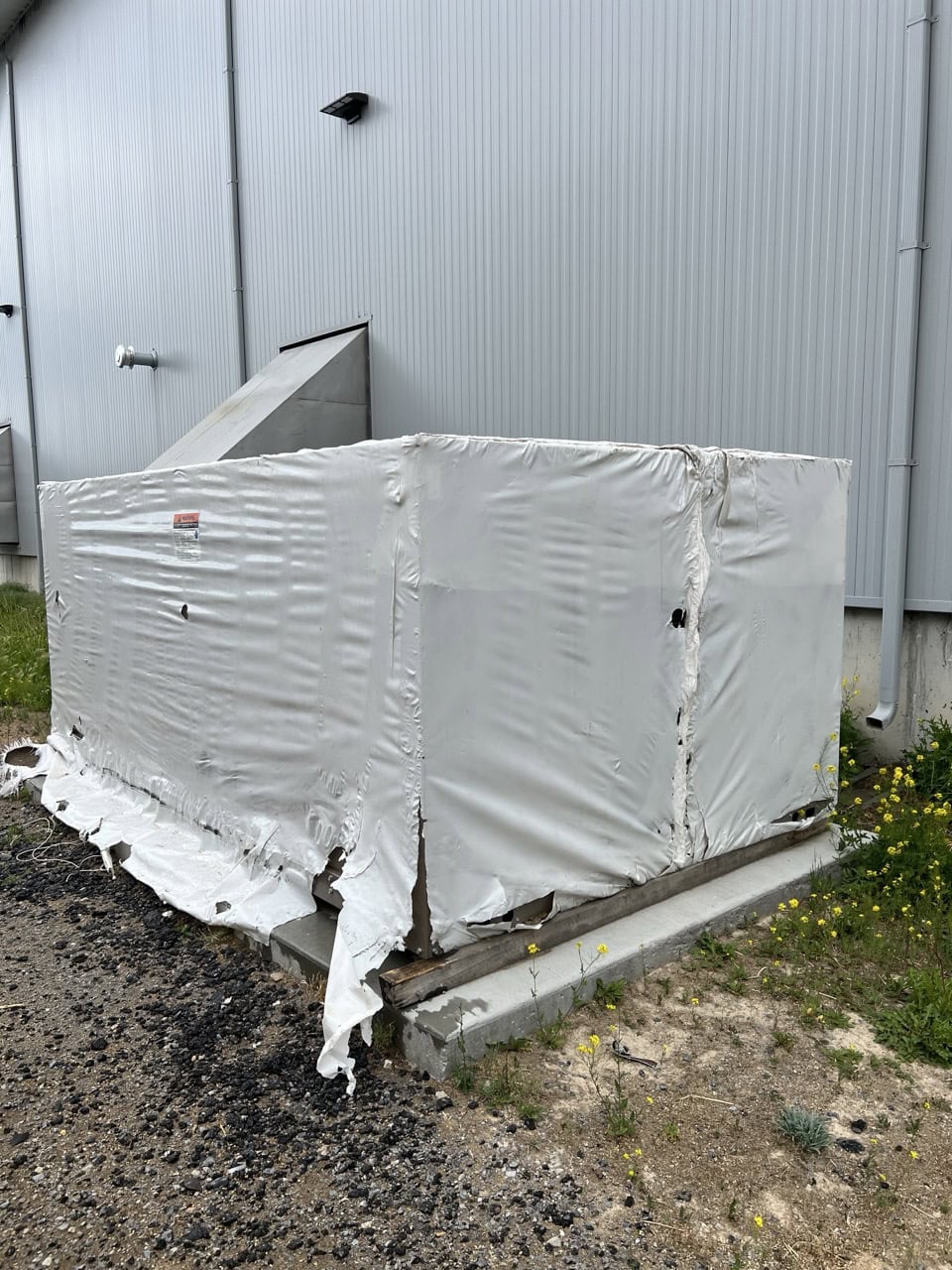

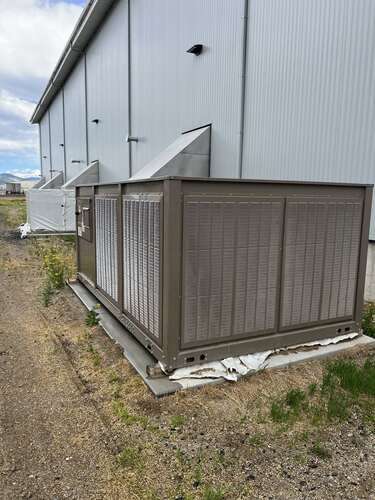

The York YCUL0072EE is a 72-ton commercial rooftop air-cooled chiller designed for high-capacity HVAC applications in light industrial and commercial environments. The unit features dual refrigeration circuits for staging and redundancy, runs on R-410A, and is ASHRAE 90.1 compliant. This 2019 unit includes a factory-installed fused disconnect and appears to have been outdoor-stored on pad mounts, with fair external condition.

Key Features and Specifications
Tonnage: 72 tons
Refrigerant: R-410A
Electrical: 460V / 3 PH / 60 Hz
Compressor system: Dual-circuit
Compressors:
– Circuit 1: 22.5 A RLA / 225 LRA
– Circuit 2: 26.8 A RLA / 187 LRA
Full load amps: 34 A
Max overcurrent protection: 146 A
Control power: 115V internal transformer
Disconnect: Fused handle installed
Construction: Outdoor enclosure, panel access, top-discharge fans
Compliance: ETL listed, ASHRAE 90.1
Unit weight: 4,012 lbs
