70 Amps, General Electric, TEB122070, Type TEB, Molded Case Circuit Breaker, 2-Pole, 240 VAC / 250 VDC

General Electric TEB122070 – Type TEB
70A, 240 VAC / 250 VDC, 2 Pole – Thermal-Magnetic Molded Case Circuit Breaker

>> Qty 1 In Stock <<

>> Call for Price – FOB Pickering, Ontario <<

General Electric Type TEB 2-pole molded case circuit breaker, catalogue no. TEB122070. It is rated 70A, 240 VAC / 250 VDC, with a non-adjustable thermal-magnetic trip unit (40°C calibration) and a push-to-trip button. Interrupting rating is 10,000A at 240 VAC. It has line and load wire terminals for Cu/Al conductors. UL listed and CSA certified.

SPECIFICATIONS
Manufacturer: General Electric
Catalogue No.: TEB122070
Type: TEB
Amperage: 70A
Voltage: 240 VAC / 250 VDC
Poles: 2
Trip Unit: Thermal-Magnetic, non-adjustable, 40°C calibration
Interrupting Rating (RMS sym.): 10,000A @ 240 VAC
Terminals: Line and load wire terminals, Cu/Al
Features: Push-to-trip button
Approvals: UL listed (issue LK-348, file E11592-D), CSA
Ref.: NP243877BG; Plant D
Made in USA

CONDITION

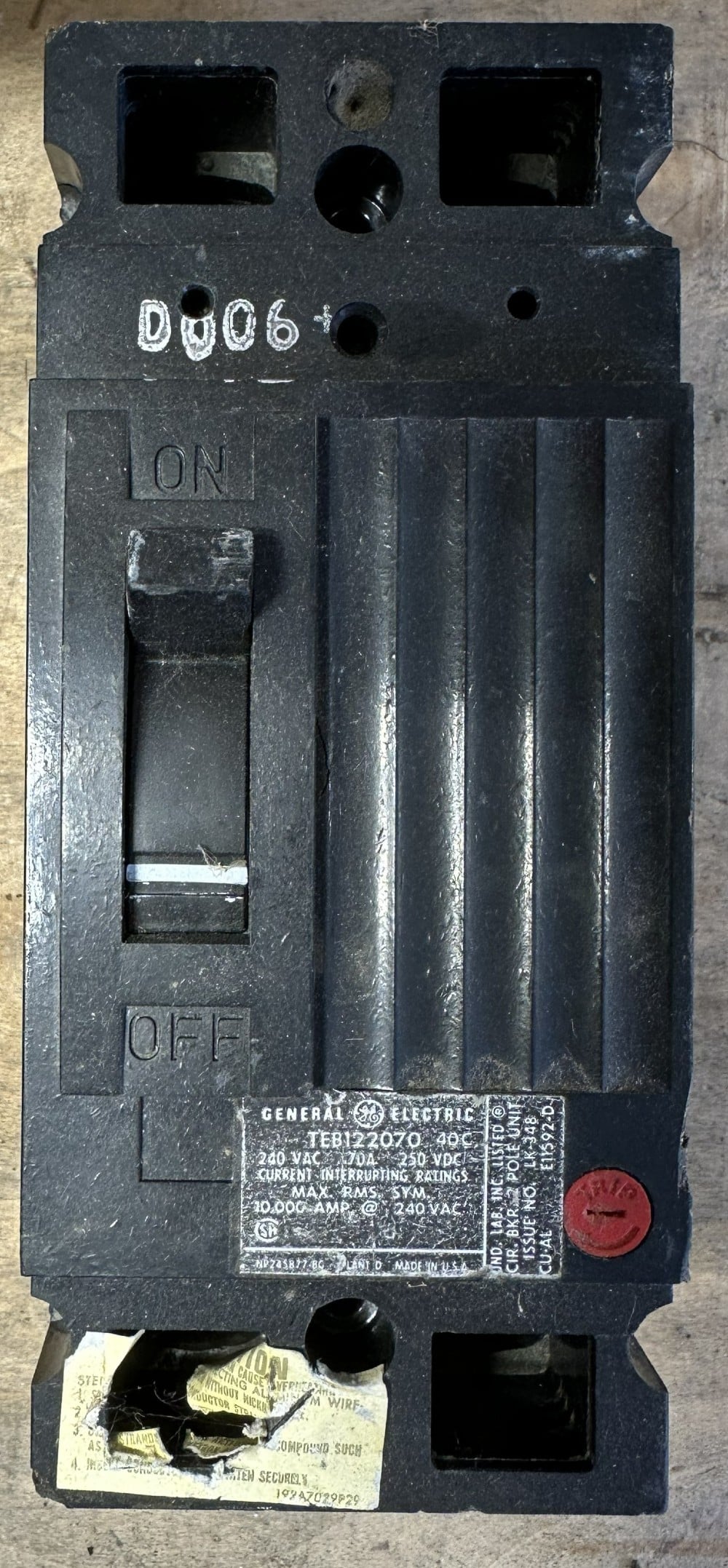

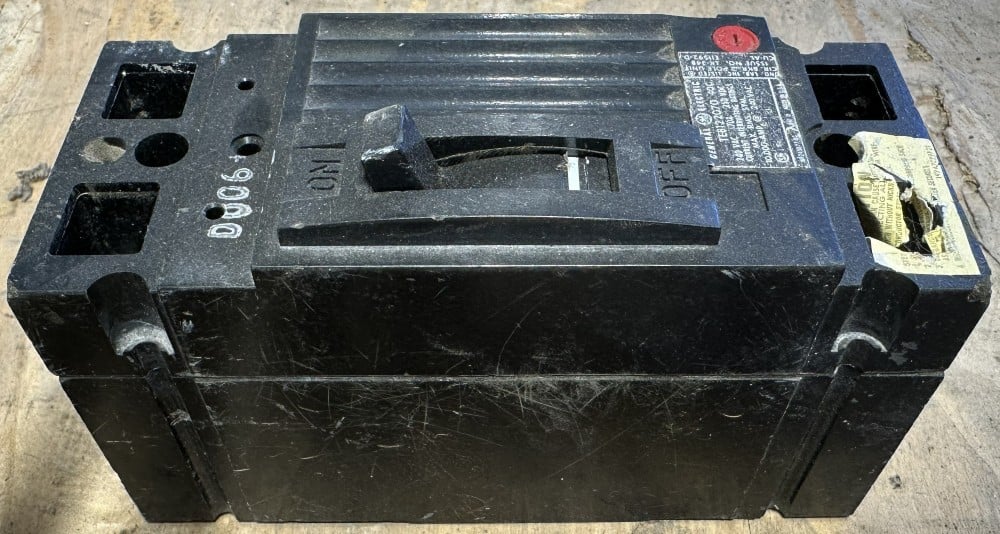

Used – As-Is. Removed from service. Has a handwritten previous-owner circuit marking on the cover and some label and tape residue near the terminals. Shows normal signs of use and age. Please review the photos.

TERMS
Price: Call for Price
Shipping: FOB Pickering, Ontario. Buyer arranges and pays all shipping, brokerage and duties.
Freight: Ships boxed (parcel)
Stock #: CB-1595
