7 Stand, Flagler #HS7, High Speed Pittsburgh Rollformer Machine, 20-26 Gauge, 5/16" Pocket Depth, 100 FPM, 32-5/8" H Feed Table, 3 HP, 1800 RPM, 230/460 V, new

Description

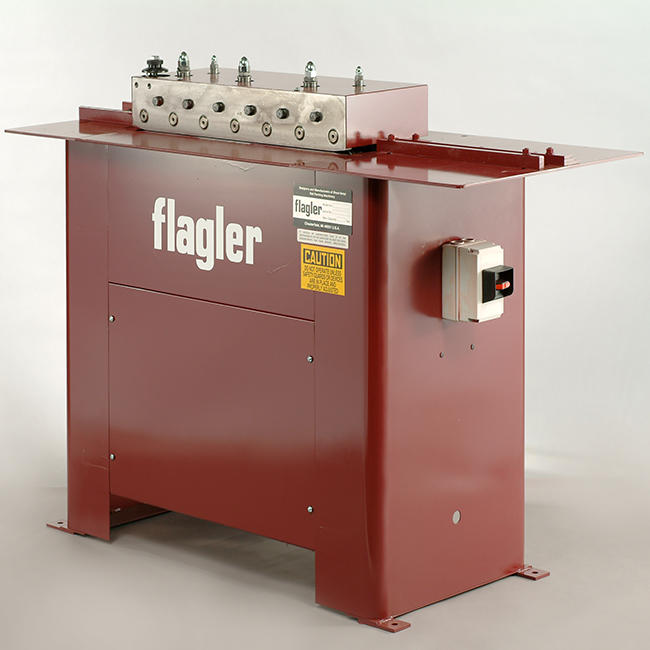

Flagler 20 Gauge High Speed 7-Station Pittsburgh Rollformer Machine, HS7

Inventory # 7725

Model: HS7

MPN # 16-000-7

Made in USA

Description:

The Flagler 20 Gauge High Speed 7-Station Pittsburgh machine is the same as the 6-station High Speed with the exception of it having an additional station for more available auxiliary tooling

Specifications:

Capacity: 20 – 26 Gauge

Depth of Pocket: 5/16″ (Uses approx. 1″ of material)

Speed: approx. 100 ft. per minute

Feed Table Height: 32 5/8″

Motor: 3 HP / 230v / 460v / 3ph / 1,800 RPM

Standard Features:

Built-in Pittsburgh Lock Rolls

Extended Shafts for 1 Set of Auxiliary Tooling

Matched Double Vee Belt Drive

Arc Welded Steel Base

Heavy Top Plate

Mechanical Specifications:

Dimensions: 36″ x 16 1/2″ x 37″ H

Shipping Weight: approx. 450 lbs.

Contact us for pricing and availability

FOB Factory

Please Note: Picture may be shown with optional accessories and tooling
