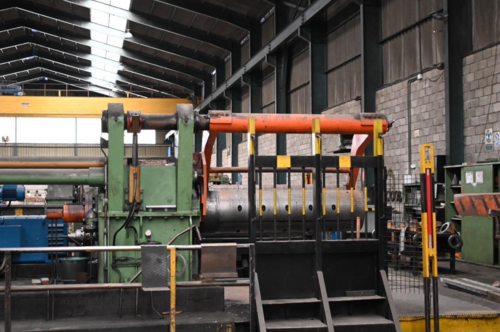

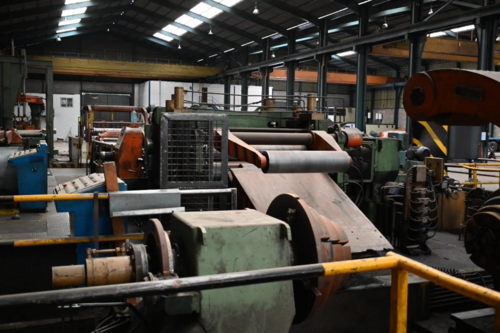

61" Bonak, Slitting Line, 246 FPM, RL, 1982

Specifications:
Manufacturer: Bonak
Materials: CRC, HRC
Yield Strength: 355 MPa
Thickness Range: .039” – .315” (1.00 – 8.00 Mm)
Maximum Coil Width: 61” (1550 Mm)
Minimum Coil Width: 9.8” (250 Mm)
Maximum Coil Weight: 66,000 Lb (30 Metric Tons)

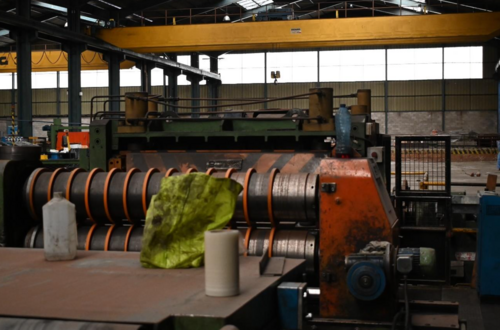

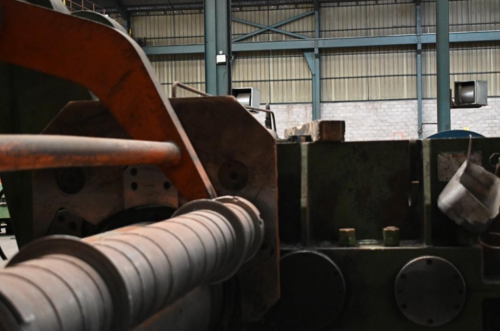

Slitting Specifications:
Slitter Arbor (Shaft) Diameter: 8.86” (225 Mm)
Blade Diameter: 13.4” OD X 8.86” ID (340 Mm X 225 Mm)
Cutting Speeds:
Thicknesses Less Than .118” (3 Mm): Adjustable Speed Between 0 And 492 FPM (0 – 150 M/Min)
Thicknesses Greater Than .118” (3 Mm): Adjustable Speed Between 0 And 246 FPM (0 – 75 M/Min)
Cutting System: Pit And Direct Feed Depending On Thickness

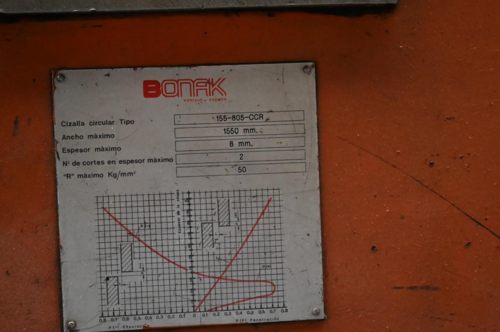

Cutting Capacities:
2 Cuts At .315” (8 Mm)
3 Cuts At .276” (7 Mm)
5 Cuts At .236” (6 Mm)
8 Cuts At .157” (4 Mm)
10 Cuts At .118” (3 Mm)
20 Cuts At .079” (2 Mm)
20 Cuts At .059” (1.5 Mm)
20 Cuts At .039” (1.0 Mm)
Slitter Tooling:
Blade Inner Diameter: 8.86” (225 Mm)
Blade Outer Diameter: 13.4” (340 Mm)
Blade Thicknesses: .6” And .8” (15 Mm And 20 Mm)
Approximately 100 Circular Blades Included
Line Direction: Right / Left

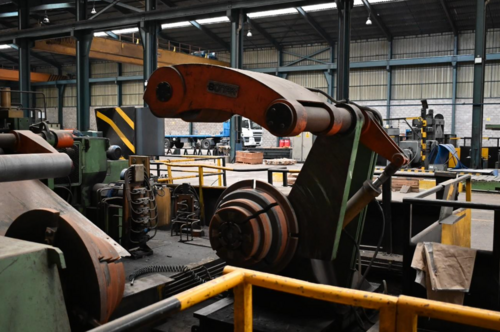

Uncoiler:
Type: Expanding Double Mandrel Uncoiler
Maximum Coil Weight: 66,000 Lb (30 Metric Tons)
Outer Coil Diameter: Max 78.7” / Min 23.6” (2000 Mm / 600 Mm)
Inner Coil Diameter: Max 30” / Min 20” (760 Mm / 508 Mm)
Motorized Clamping Roll
Hydraulic Expansion
Entry Equipment:
Peeling Table With Clamping Roll
Double Adjustment Feed Guides
Feed Pinch Roll

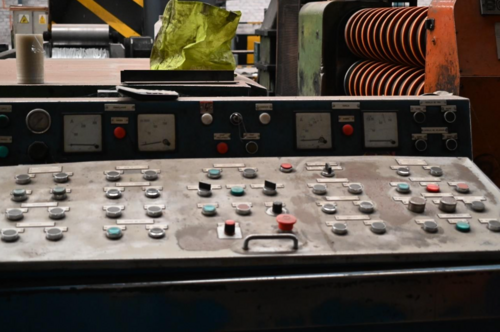

Controls And Accessories:
Accessories With Hydraulic And Electrical Controls
Tooling Available
Additional Features:
Quick-Change System For Off-Line Operation
Braking Press System For Strip Tension
Large Quantity Of Replacement Felts Included
Drive System:
Oremor DC Motors, Model CR-280 M
Oremor DC Motors, Model CR-180 L
Documentation:
Civil, Mechanical, And Electrical Engineering Drawings Included
Foundation, Assembly, Hydraulic, Pneumatic, And Electrical Plans Included
Condition: All Maintenance Has Been Completed
Status: Under Power
