60A, Siemens, ED63B060, Sentron Type ED6, Molded Case Circuit Breaker, 3-Pole, 600 VAC, 65kA @ 240V

Siemens ED63B060 – Sentron Series, Type ED6
60A, 600 VAC, 3 Pole – Thermal-Magnetic Molded Case Circuit Breaker

>> Qty 1 In Stock <<

>> Call for Price – FOB Pickering, Ontario <<

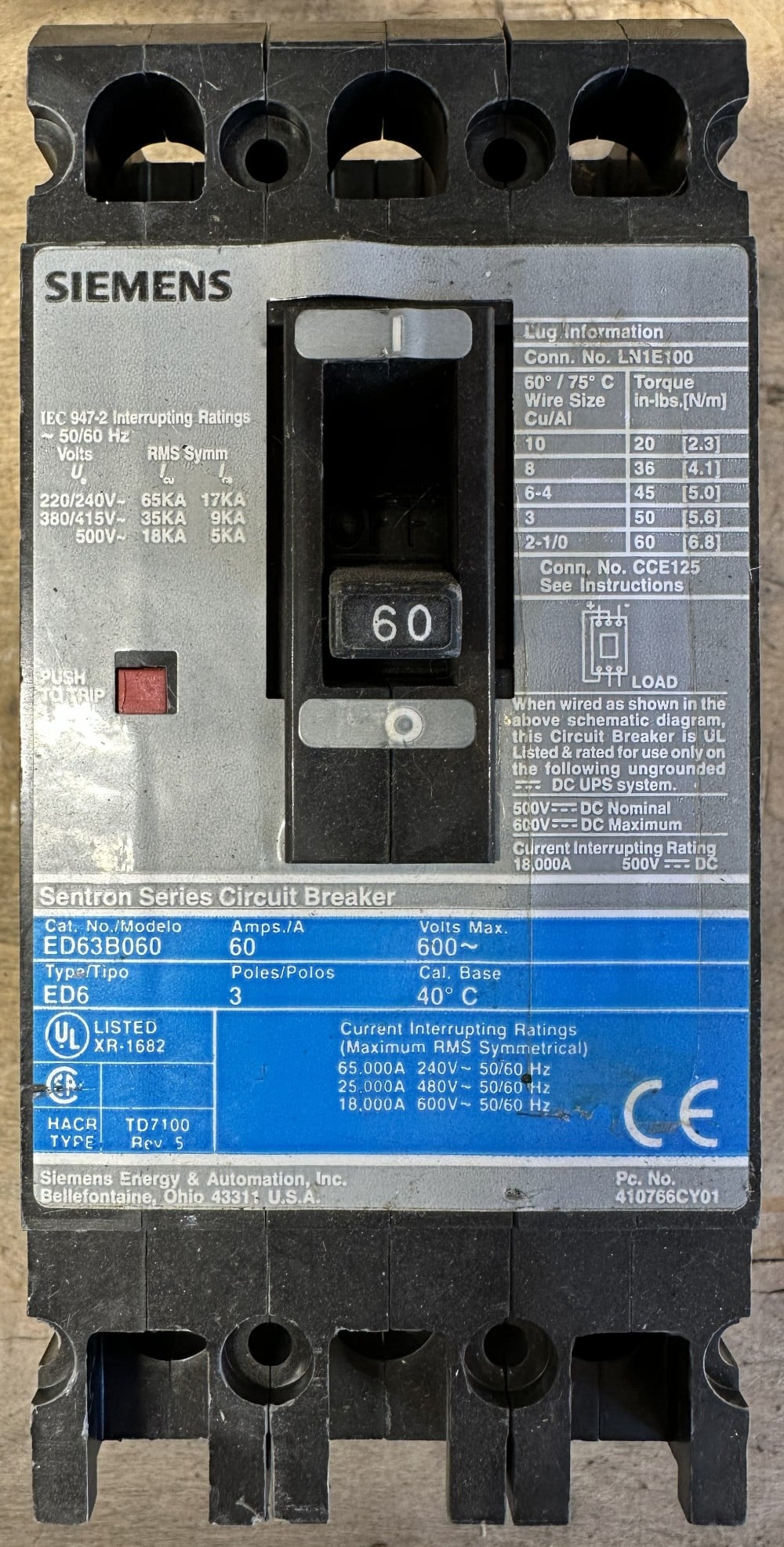

Siemens Sentron Series Type ED6 3-pole molded case circuit breaker, catalogue no. ED63B060. It is rated 60A, 600 VAC, with a non-adjustable thermal-magnetic trip unit (40°C calibration) and a push-to-trip button. This is a high-interrupting ED6 frame, rated 65,000A at 240 VAC, 25,000A at 480 VAC and 18,000A at 600 VAC. It also carries a DC UPS rating. The breaker is UL listed, CSA certified, CE marked and HACR type.

SPECIFICATIONS
Manufacturer: Siemens
Catalogue No.: ED63B060
Series / Type: Sentron, Type ED6
Amperage: 60A
Voltage: 600 VAC
Poles: 3
Trip Unit: Thermal-Magnetic, non-adjustable, 40°C calibration
Interrupting Rating (RMS sym.): 65kA @ 240 VAC; 25kA @ 480 VAC; 18kA @ 600 VAC (50/60 Hz)
IEC 947-2: 220/240 VAC Icu 65kA / Ics 17kA; 380/415 VAC Icu 35kA / Ics 9kA; 500 VAC Icu 18kA / Ics 5kA
DC UPS Rating (ungrounded, wired per schematic): 500 VDC nominal, 600 VDC max.; 18kA @ 500 VDC
Lugs: LN1E100 (Cu/Al, 60/75°C), #10 – 1/0 AWG; CCE125 connector optional
Features: Push-to-trip button
Approvals: UL listed (XR-1682), CSA, CE, HACR type
Pc. No.: 410766CY01
Made in USA

CONDITION

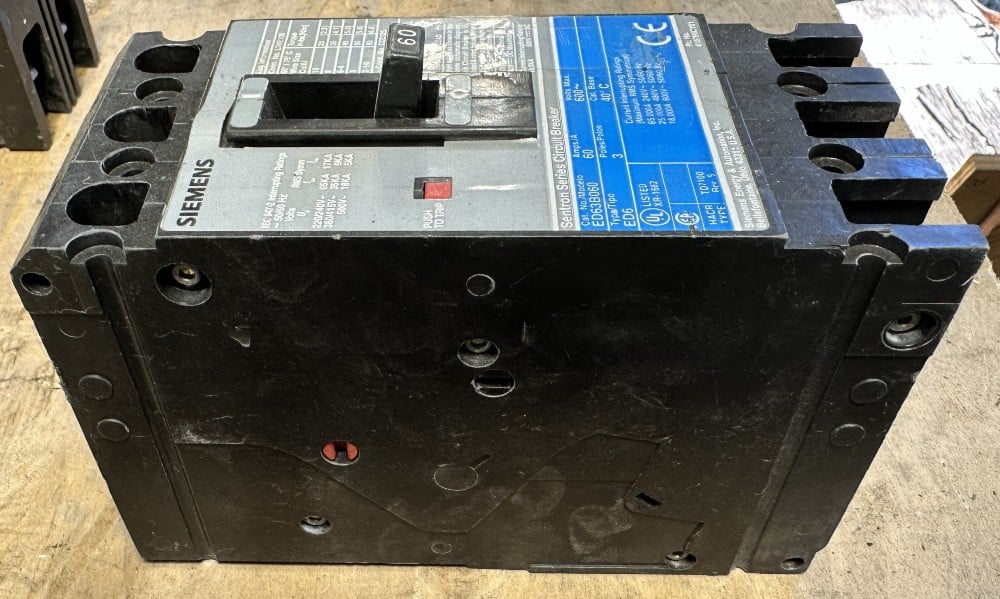

Used – As-Is. Removed from service. Labels intact and legible, with normal signs of use and age. Please review the photos.

TERMS
Price: Call for Price
Shipping: FOB Pickering, Ontario. Buyer arranges and pays all shipping, brokerage and duties.
Freight: Ships boxed (parcel)
Stock #: CB-1594
