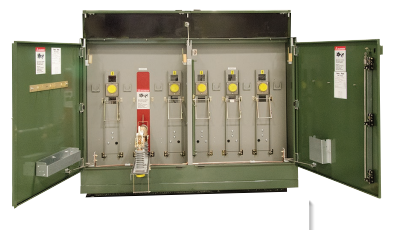

600 Amp. Federal Pacific, pse/ii- 9, 15KV, dead front, 4 way, 2 fuse, 2 switch, new pad mount switchgear in stock

  View PDF

Same unit as S&C PME-9

15kV aPSE Class Dead-Front Pad-Mounted Switchgear -

• Proven Auto-jet® switching
• Meets IEEE C37.74- requirements including 3-time fault-closing on switches and fuse mountings
• 100% X-rayed cycloaliphatic epoxy insulators produced by Federal Pacific / Line Power for 15kV and 25kV applications.
• 11-gauge pickled-and-oiled steel, all welded enclosure construction.
• A 16 gauge galvanized steel floor panel with 1” stainless-steel screened drainage provisions is standard.
• Meets ANSI C57.12.28-2005 cabinet security and enclosure finish requirements
• Stainless-steel door-handle covers and switch operating pockets
• Stainless-steel hinges and hinge pins
• Overlapping active-passive door system with 3-point auto-latch door mechanism, padlockable door handle and standard penta-head or optional hex-head security bolts
• Ventilation louvers not required in the cable compartments, but may be specified.
• Ventilation of the center medium voltage compartment is not recommended (but may be specified)
• Anti-condensation roof undercoating
• Hinged fuse panels provide visible isolation from internal bus
• NEMA Class GPO-3 non-hygroscopic fiberglass reinforced polyester barriers block access to the internal bus when the fuse panels are opened
