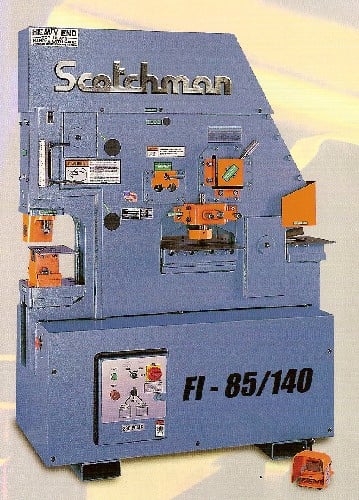

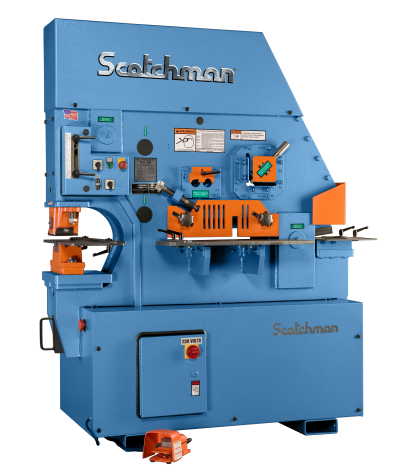

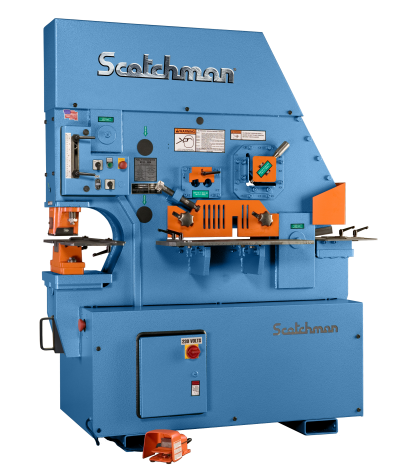

6" x 6" x 1/2" Scotchman #FI-8510-20M, hydraulic ironworker, 85 ton, 5 station, 2-stage hydraulic pump

(NEW) SCOTCHMAN HYDTAULIC IRONWORKER
MODEL: FI-8510-20M
STANDARD FEATURES
85 Ton Punch Station
Keyed Punch Ram For Safety
Die Holder Complete With 2" Die Insert
Punch Nut With Wrench
Adjustable Swing-Away Stripper
Punch Jog Control
Adjustable Electric Stroke Control With Scale
Electric Remote Foot Pedal
Two-Stage Hydraulic Pump
Rectangle Notcher
Low Rake Angle Blade For Minimal Distortion
Rod Shear
Electrical Box Supplied With Emergency Palm Button and Lock-Out
Tag-Out Accommodations
230/460 Volt/3 Phase Electrics (Must Specify Voltage)
All Guards Necessary To Comply With ANSI B 11-5 Standards
Forklift Accommodations
THree Year Warranty
Made In USA
CAPACITIES AND SPECIFICATIONS: Rated On: A 36 Mild Steel/65,000 psi Tensile
Punching Capacity: 85 Ton
1-1/16" In 1"
Special Tooling: 4" Maximum Diameter
Throat Depth: 10"
Flat Bar Shear: 20" Length
1" x 12"
3/4" x 20"
Angle Shear, 90 Degrees: 6" x 6" x 1/2"
45 Degrees: 4" x 4" x 1/2"
Brake 12"*: 85 Ton
Brake 24"*: 85 Ton
Pipe Notcher, Schedule 40 I.D.*: 3/4", 1", 1-1/4, 1-1/2", 2"
Rectangle Notcher: 3" x 5" x 1/2"
90 Degree V-Notcher (Notcher Station): 3" x 3" x 1/2"
Channel Shear*: 2" to 6" Adjustable
Rod Shear
Round Rod: 1/2", 3/4", 1", 1-1/2"
Square Rod: 1-1/2"
Square Tube Shear*: 1/2" to 2", 12 Gauge
Picket Tool Housing*: 1/2", 3/4", 1"
Offset Die Holder: Max. 40 Ton
Strokes Per Minute, Light Material: 35 SPM (1/4" Stroke)
Strokes Per Minute, Heavy Material: 14 SPM (3/4" Stroke)
Hydraulics: 2600 PSI
Standard Motor: 5 HP, 3 Phase 230/460/208//380/575 V
Optional Motor: 5 HP, 1 Phase 230 V

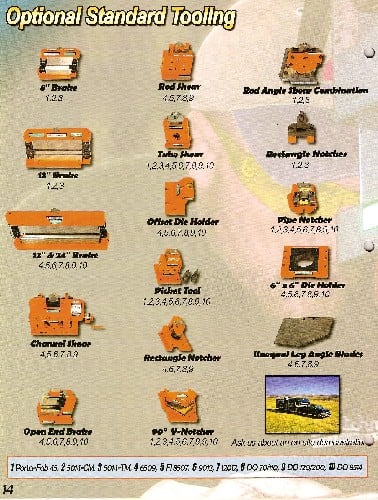

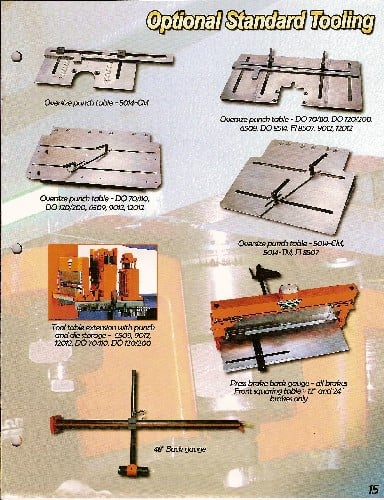

*Optional Equipment Available
Dimensions: 30"W x 60"L x 77"H
Approximate Weight: 4200 Lbs.
F.O.B. Philip, South Dakota
SPECIFICATIONS SUBJECT TO MODIFICATION AND/OR CHANGE
