6" x 6" x 1/2" Scotchman #50514-EC, Hydraulic Ironworker, 50 Ton, Flat Shear, Brake, Punch, Notcher

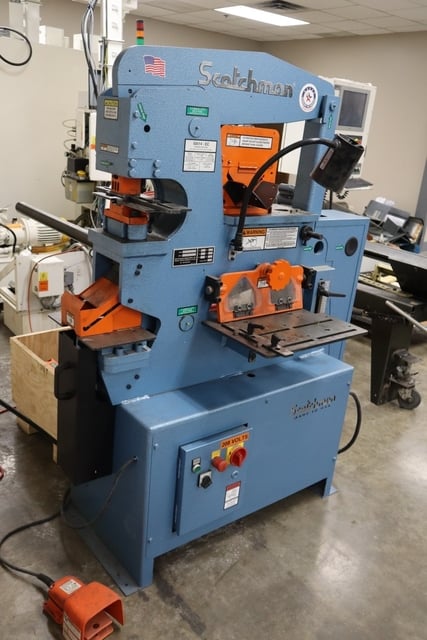

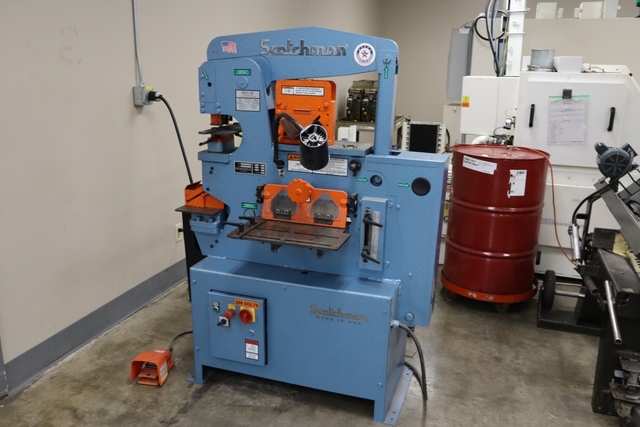

The Scotchman 5014-EC Hydraulic Ironworker is a versatile, American-made fabrication machine designed to handle a wide range of metalworking operations including punching, shearing, and notching. With a 50-ton punching capacity, the 5014-EC is ideal for small to mid-size fabrication shops seeking a reliable all-in-one solution for structural steel and plate processing. This model features multiple workstations, including a punch station, flat bar shear, angle shear, and built-in notcher, allowing operators to efficiently perform various operations without changing machines. The integrated Electric Stroke Control (EC) system provides precise punching control and repeatability, improving productivity and reducing operator fatigue.

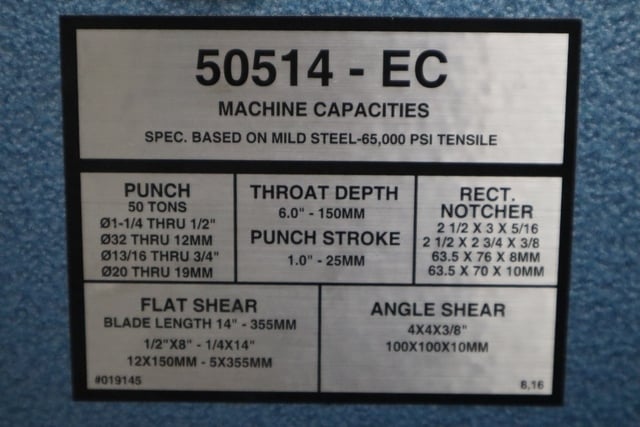

Max Tonnage Capacity:: 50
Speed (Strokes Per Minute):: 14(Heavy Material) 34(Light Material)

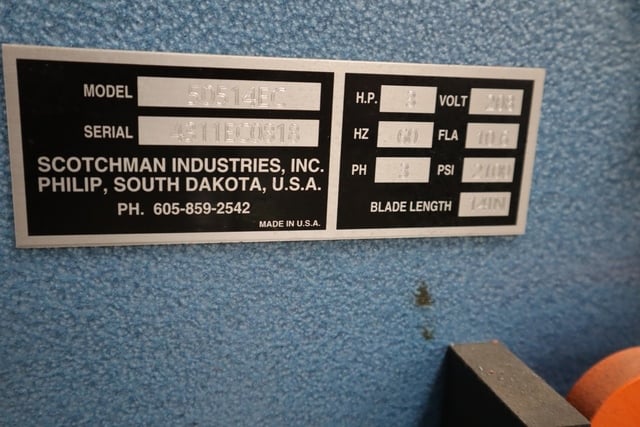

Drive Motor:: 3 hp or 5 hp

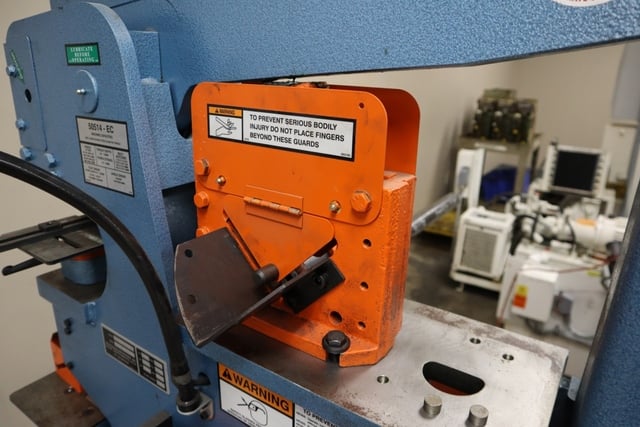

Coper / Notcher Capacity:: Rectangle Notcher- 2-1/2"x3"x5/16" & 2-1/2" x 2-3/4" x 3/8" 90 Deg V Notcher- 6" x 6" x 1/8" & 3" x 3" x 1/4"
Flat Shear Capacity:: 14" Length 3/4"x4", 1/2" x 8", 3/8" x 10", 1/4"x 14"
Punch Capacity:: 1-1/4" in 1/2"/ 13/16" in 3/4"
Angle Shear Capacity:: 90 degree 4" x 4" x 3/8" 45 degree 2" x 2" x 1/4"

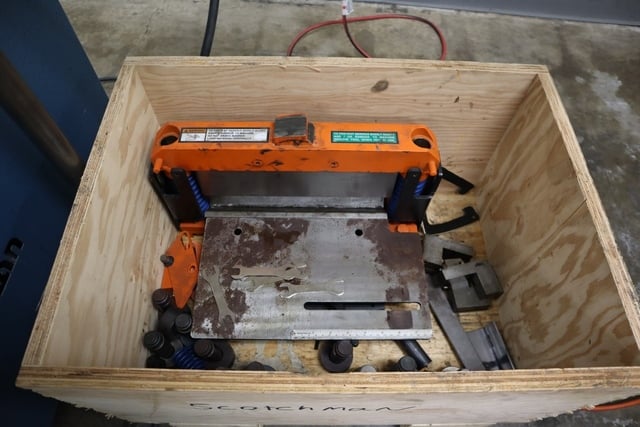

Brake 8":: 30 ton
Brake 12":: 25 ton
Open End Brake:: Max. 1/4" x 3" [Flat or Angle Iron]
Pipe Notcher Schedule 40:: 3/4", 1", 1-1/4", 1-1/2", 2"
Rectangle Notcher:: 2-1/2" x 3" x 5/16" 2-1/2" x 2-3/4" x 3/8"
90 degree V-Notcher:: 6" x 6" x 1/8" 3" x 3" X 1/4"
Rod Shear Round (max.):: 5 Cavity - 1/4" to 1"
Rod Shear Square (max.):: 1 Cavity - 1/4" to 3/4"
Square Tube Shear:: 1/2" to 1" 12 gauge
Picket Tool:: 1/2", 3/4" & 1" 16 gauge
Weld Coupon Bender (max.):: 2" wide x 3/8"
Hydraulics:: 2,350 psi
