Manufacturer: Okamoto
Model: ACC-618-DX3
Year: 2003
Width/Cross: 6.0
Length/Longit.: 18.0
Stock # 174615
1 / 6
Click to zoom in
1 / 6
For Sale by Machinery Values Inc
Surplus Record Dealer Since 1997
Location: Harrison, NJ
Contact Andrew Valitt
Phone Number: 973...> Show Phone Number 973-497-7600
Let the seller know you found their listing on Surplus Record!
Description

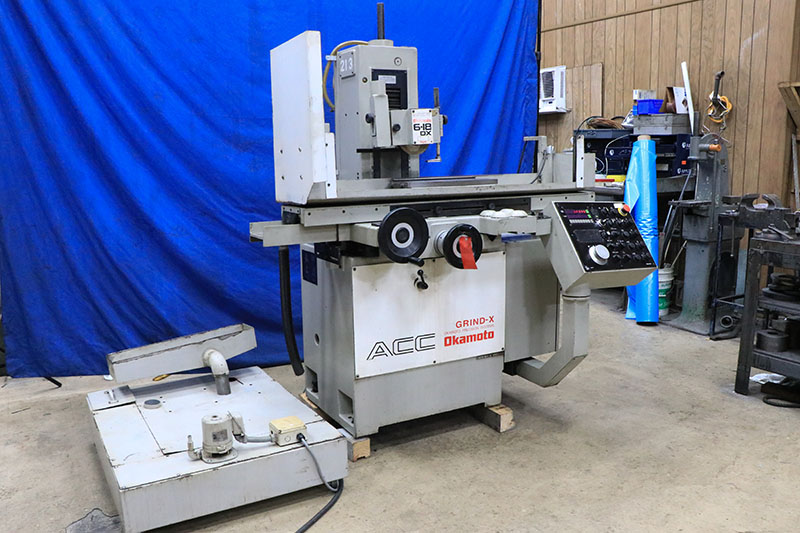

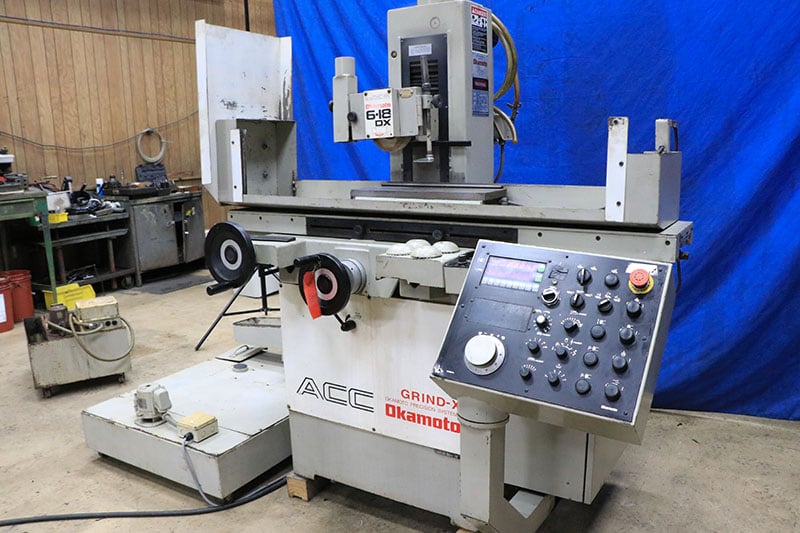

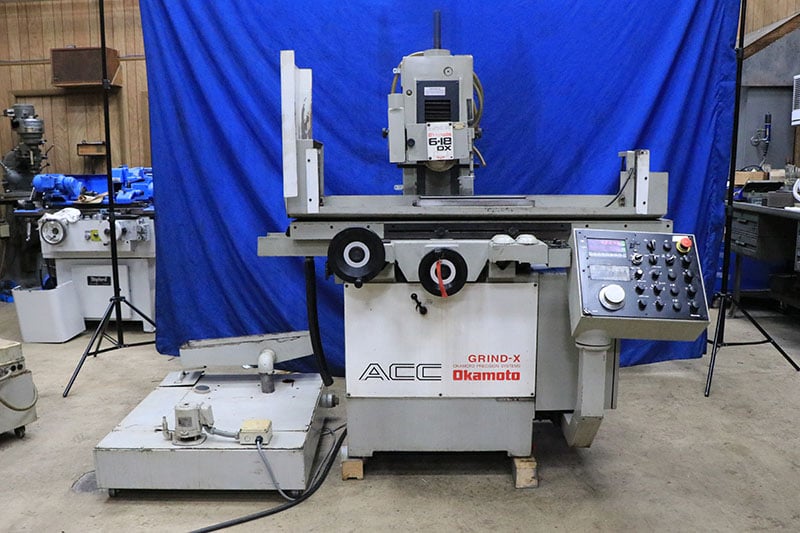

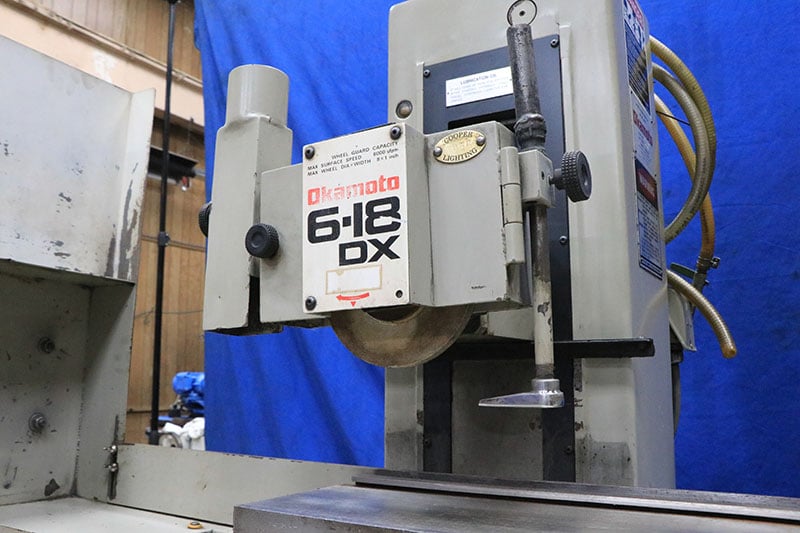

6" X 18" OKAMOTO…"HIGH-PRECISION" SURFACE GRINDER
W/"DX" SERIES PROGRAMMABLE AUTO INCREMENTAL DOWNFEED
MODEL: ACC-618-DX3… S/N: 45640… NEW: 2003
NOMINAL GRINDING CAPACITY .................. 6" x 18"
MAXIMUM HEIGHT UNDER 8" WHEEL .............. 11.7"
TABLE SPEED, INFINITELY VARIABLE ........... UP TO 82' FPM
MAX. LONGITUDINAL TABLE MOVEMENT, MANUAL ... 24"
AUTO CROSS FEED INCREMENT .................. 0.002" TO 0.40"
AUTO CONINOUS CROSSFEED .................... 4' TO 40' FPM
CROSSFEED, MANUAL, HAND FEED PER REV. ...... 0.25"
GRAD. OF HANDWHEEL ...... 0.0004"
FINE FEED KNOB FOR CROSSFEED, GRAD. ........ 0.00002"
MAX. CROSSFEED, MANUAL ..................... 7"
AUTO INCREMENTAL DOWNFEED INCREMENTS ....... 0.00005" TO .0015"
POWER RAPID WHEEL POSITIONING RATE ......... 16" IPM
SPINDLE MOTOR .............................. 2 H.P.
WHEEL SIZE ................................. 8"DIA. x 1"W x 1.25"B
APPROX. DIMS. FOR OPERATION ................ 85" x 63"D x 70"H
APPROX. MACHINE WEIGHT ..................... 2,500 LBS.
EQUIPPED WITH:
"DX" SERIES PROGRAMMABLE ELECTRONIC AUTO INCREMENTAL DOWNFEED:
-AC SERVO DRIVEN DOWNFEED
-AUTO INCREMENTAL DOWNFEED FOR BOTH SURFACE… PLUNGE
OPERATIONS
-DUAL RATE AUTO DOWNFEED W/COARSE… FINE SELECTIONS
-DIGITAL DISPLAY OF VERTICAL AXIS
-SPARKOUT PASSES (0 TO 5) W/AUTO TABLE PARK AT
COMPLETION OF GRIND CYCLE
-ELECTRONIC HANDWHEEL FOR MANUAL VERTICAL MOVEMENT
W/EACH GRAD. EQUIVALENT TO .00001", .0001" OR .001"
-POWER RAPID WHEEL POSITIONING
HYDRAULIC TABLE TRAVERSE… AUTOMATIC CROSSFEED

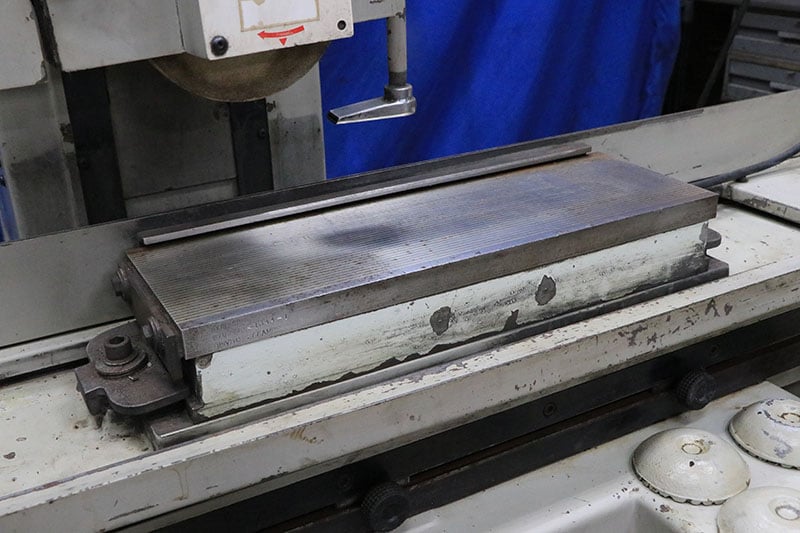

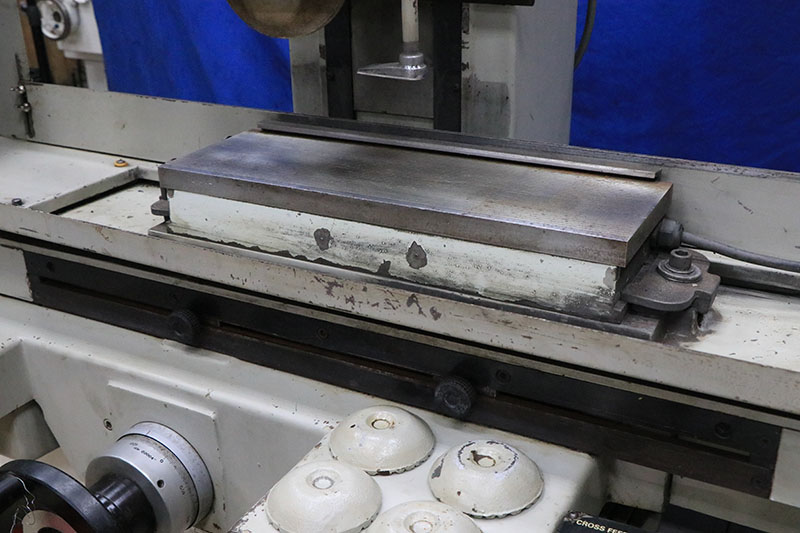

6" X 18"…"LBP" FINE-DIVISION ELECTRO-MAGNETIC CHUCK
VARIABLE HOLD NEUTROFIER CONTROL ON MACHINE'S CONSOLE
COOLANT SYSTEM
2 H.P./220-230-440-460 VOLT SPINDLE MOTOR
MACHINE IS PRESENTLY SET UP FOR 460 VOLTS, 2.8 KVA
LINK TO VIDEO: https://youtu.be/8rnMNsXR07s?si=c4fRt90Vc-7yFWgB
** EXCELLENT CONDITION… APPEARANCE - ORIGINAL PAINT **
** INSPECT UNDER POWER IN OUR HARRISON, NJ WAREHOUSE **
