6" x 18" Kent #KGS618, Manual Hand Feed Surface Grinder, 19.5" Table Travel, 8.5" Saddle Travel, 8" x 1" x 1.25" Grinding Wheel, 1.5 kW, 3470 RPM, 240 V

Description

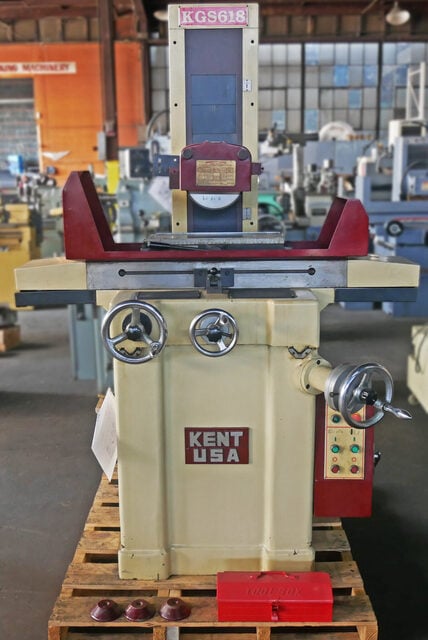

Kent 6″ x 18″ Manual Hand Feed Surface Grinder, KGS618

Inventory # 9861

Model: KGS618

S/N: 40010N

Specifications:

Working Capacity: 6″ x 18″

Table Travel: 19 1/2″

Saddle Travel: 8 1/2″

Grinding Wheel Capacity: 8″ x 1″ x 1 1/4″

Spindle Speed: 3,470 RPM

Vertical Graduation: 0.0002″

Vertical Revolution: 0.050″

Spindle Travel: 21″

Spindle Motor: 1.5 KW / 240v / 3ph

Standard Features:

Roller ball on linear table ways for easy and smooth longitudinal movements

Ultra-high super rigid H-frame column with 21″ spindle center to table for more clearance under the wheel

Flange-mount 3.35″ diameter spindle cartridge design provides unmatched heavy grinding with superior side-grinding rigidity

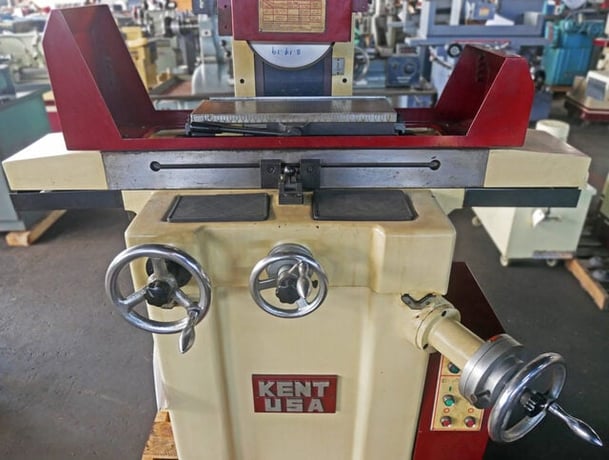

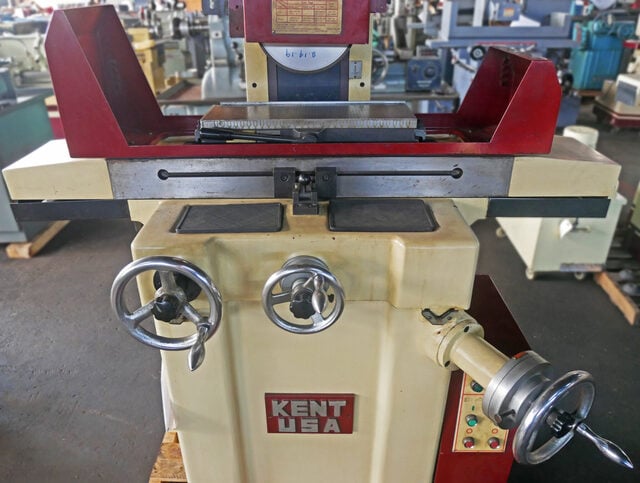

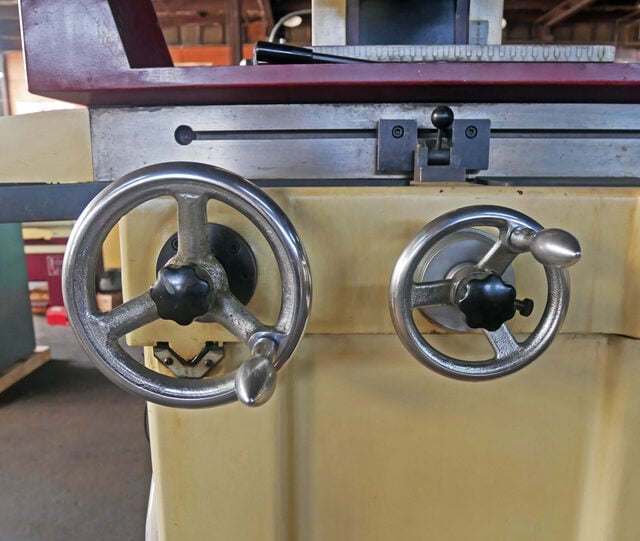

Large metal hand wheels on all axes for long-lasting dependability and easy operation

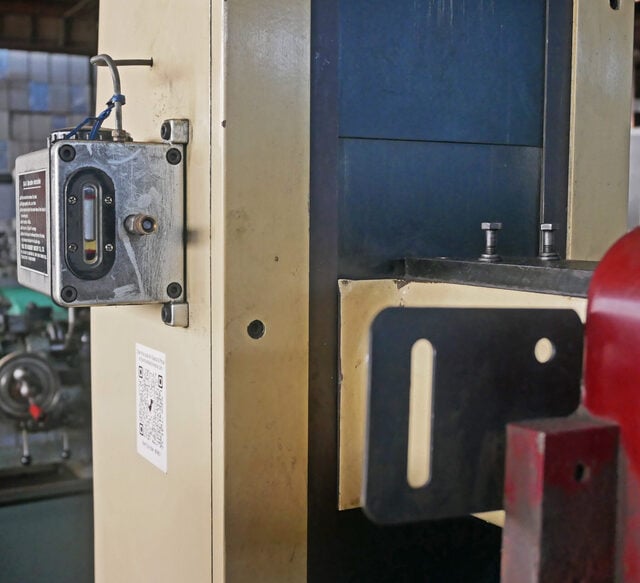

A centralized one-shot lubrication system provides lubrication to all points

Safety 24V control circuit power

Equipment Included:

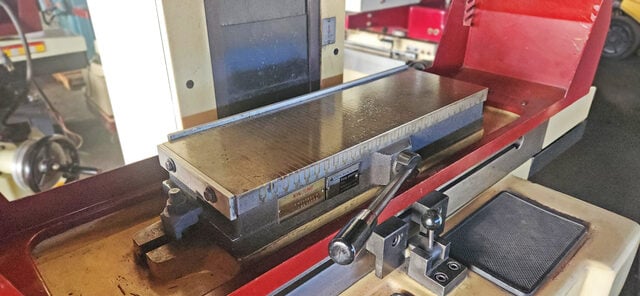

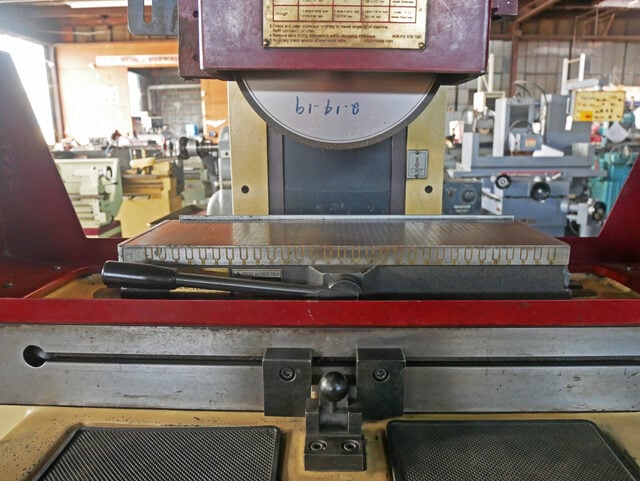

6″ x 18″ Permanent Magnetic Chuck

Splash Guards

One Shot Lube

Toolbox

Mechanical Specifications:

Dimensions: 72″ x 60″ x 72″ H

Weight: approx. 2,750 lbs.

FOB Our Baltimore, MD Warehouse
