Manufacturer: Chevalier
Model: FSG-618M
Year: 2020
Width/Cross: 6.0
Length/Longit.: 18.0
Stock # 179065
1 / 6
Click to zoom in
1 / 6
For Sale by Machinery Values Inc
Surplus Record Dealer Since 1997
Location: Harrison, NJ
Contact Andrew Valitt
Phone Number: 973...> Show Phone Number 973-497-7600
Let the seller know you found their listing on Surplus Record!
Description

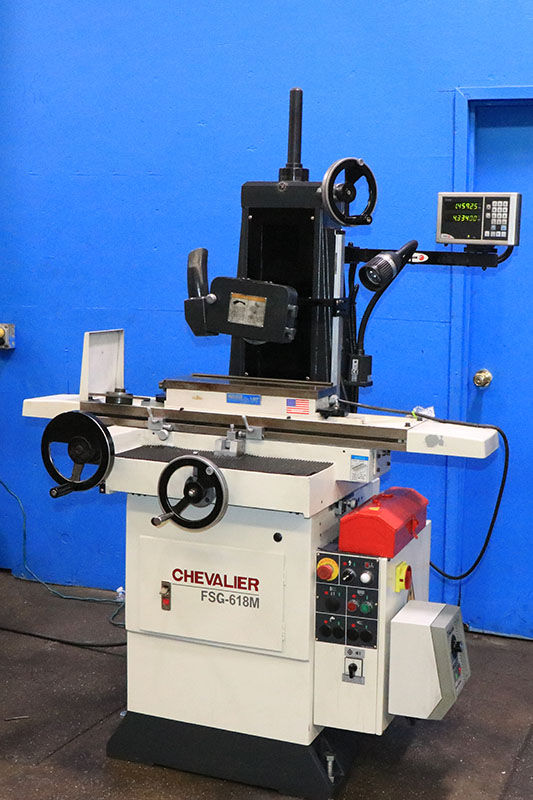

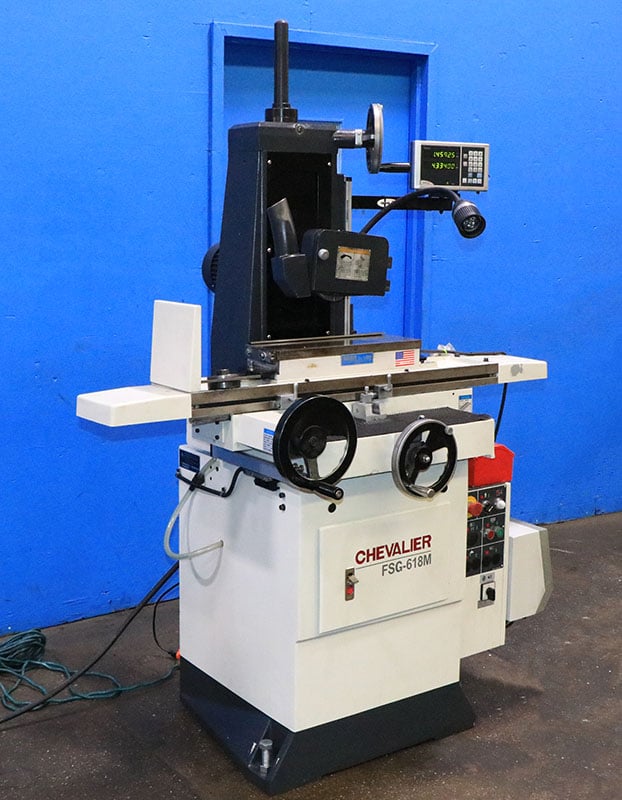

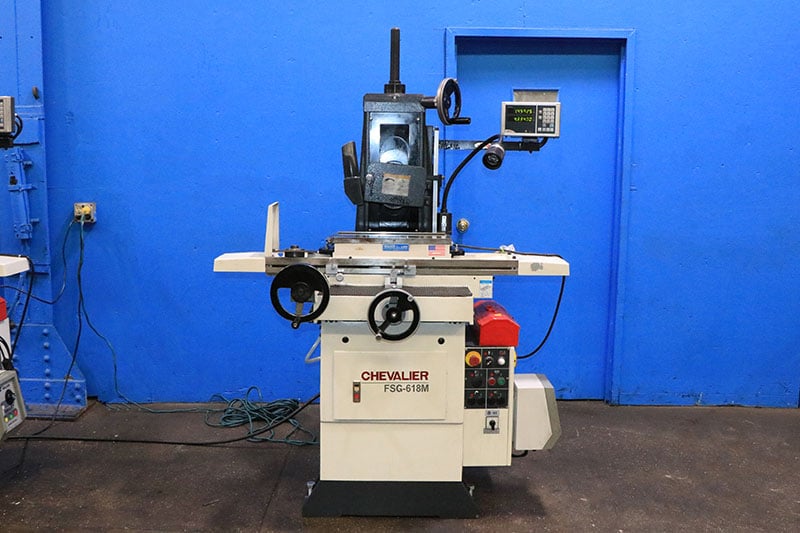

6" x 18" Chevailer Hand Feed Surface Grinder
with Roller Bearing Table
** Equipped With…"Fagor"…"Innova" 2X DRO **
Model: FSG-618M… S/N: FA3198002… New: 2020
Specifications:
Maximum grinding length:............... 18"
Maximum grinding width:................ 6"
Maximum table travel,
longitudinal: ........................ 19"
cross: ............................... 7"
Maximum distance from table
working surface to spindle center .... 18"
Cross handwheel graduations: .......... 0.0005"
Cross handwheel per rev. .............. 0.100"
Downfeed handwheel graduations ........ 0.0001"
Vertical handwheel per rev. ........... 0.050"
Spindle speed:.........................″,450 RPM
Wheel size:...................... 8" x 1/2"W x 1-1/4"B
Approximate weight: ................... 1,500 lbs
Approximate Dimensions: ......... 41"W x 47"D x 76"H
Machine Features:
All meehanite cast iron construction
Hardened and ground table guideways with steel balls
Double V Guideways laminated with Turcite-B
for saddle travel
Automatic lubrication of leadscrews and ways
2 HP″/60/230-460 volt spindle motor
Equipped with:

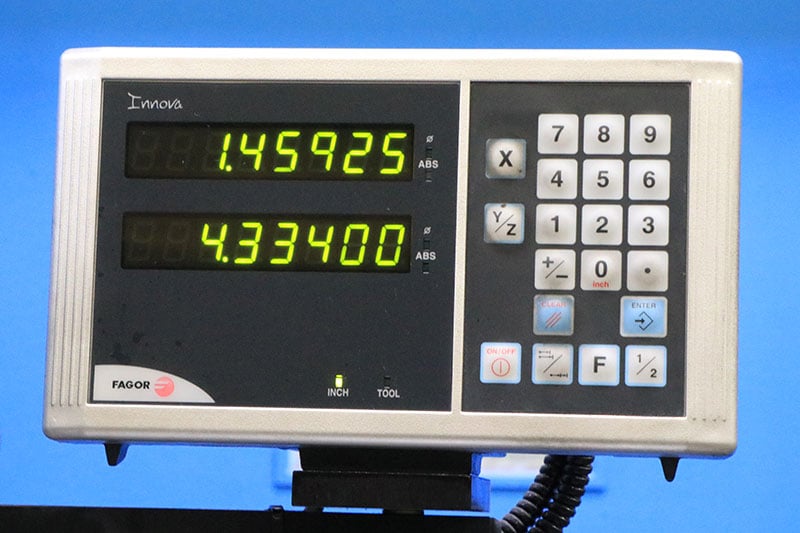

"Fagor"…"Innova" 2-Axis Digital Readout
Wheel Cover, with Dust Inlet

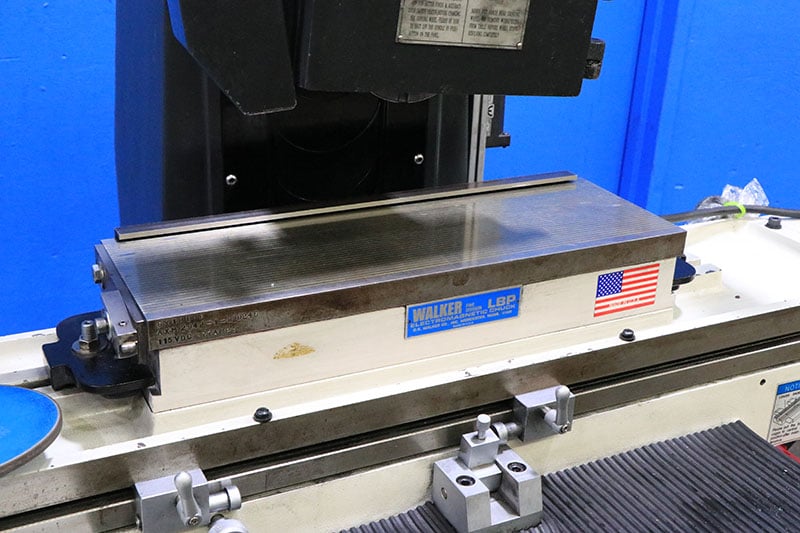

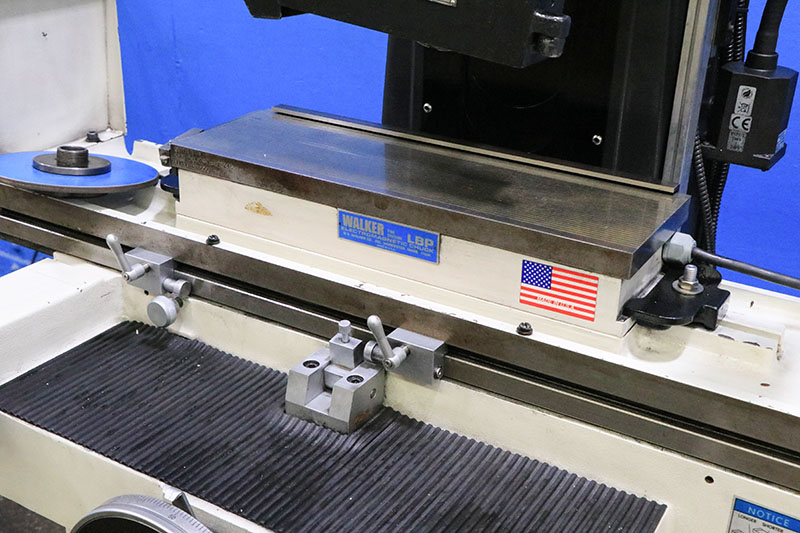

"O.S. Walker"…"LBP" Fine-Division…
Electro-Magnetic Chuck
O.S. Walker…"Smart Series" Variable Hold Neutrofier
Chuck Control
LINK TO VIDEO: https://youtu.be/_WdjESu8URM?si=0uQTp1SKb93ihyEy
**…"Like New" Condition… Appearance (Original Paint) **
** Inspect Under Power in our Harrison, NJ Warehouse **
Get Your Price from Machinery Values Inc!
Buyers Who Viewed This Listing Also Viewed:
JUST ADDED!

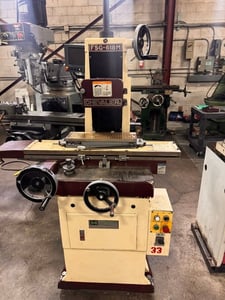

6" x 18" Chevalier #FSG-618M, Manual Surface Grinder, 19" X, 7" Y, 8" grinding wheel diameter, 1.25" bore, 3 HP, 3450 RPM
