Manufacturer: Mitsui
Model: MSG-200MH
Year: 1985
Width/Cross: 6.0
Length/Longit.: 12.0
Stock # 161368
1 / 6
Click to zoom in
1 / 6
For Sale by Machinery Values Inc
Surplus Record Dealer Since 1997
Location: Harrison, NJ
Contact Andrew Valitt
Phone Number: 973...> Show Phone Number 973-497-7600
Let the seller know you found their listing on Surplus Record!
Description

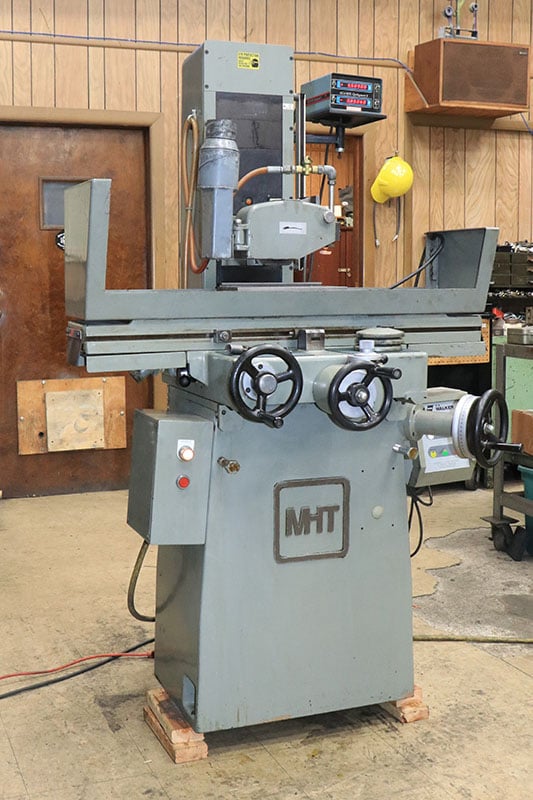

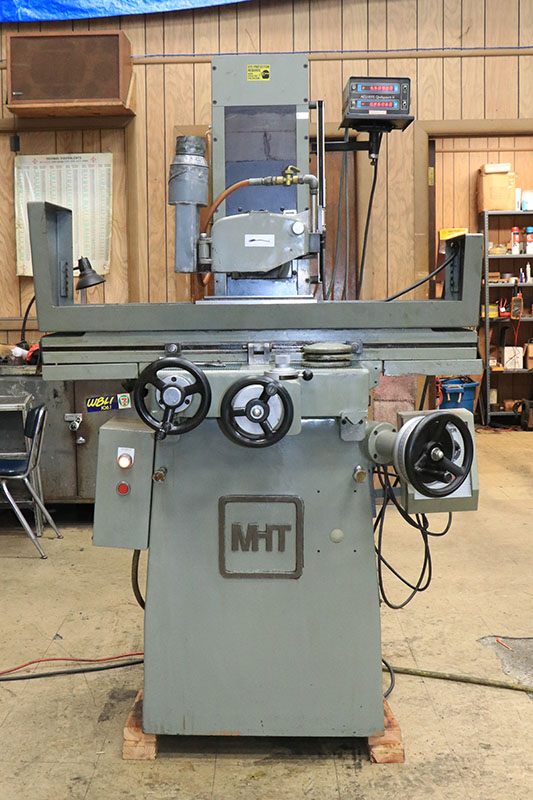

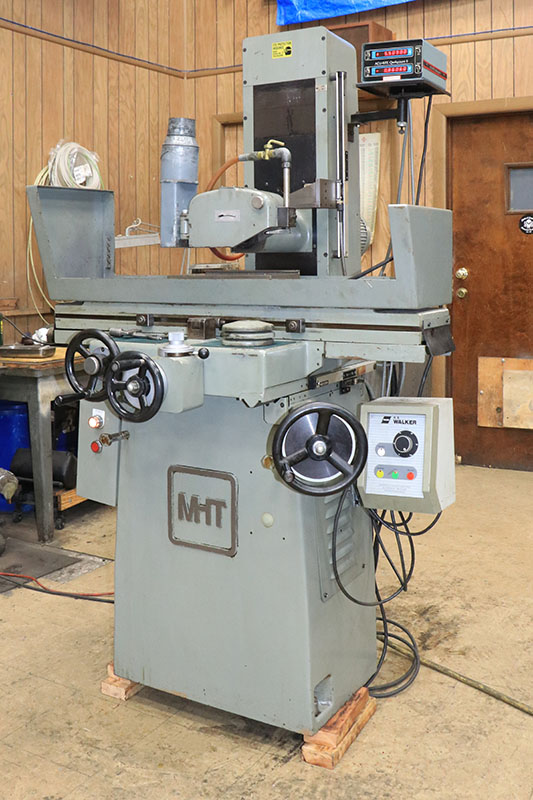

6" X 12" MITSUI…"HIGH-PRECISION" (MADE IN JAPAN)
HAND FEED SURFACE GRINDER w/ROLLER BEARING TABLE
** FINE FEED CROSS AXIS (0.000050" GRAD.)
**… ACU-RITE 2-AXIS DIGITAL READOUT DISPLAY **
MODEL: MSG-200MH… S/N: 85045753… NEW: 1985
WIDTH& LENGTH GROUND ...................... 6" X 12"
TABLE TO SPINDLE CENTER ................... 18"
HEIGHT UNDER 8" WHEEL TO CHUCK SURFACE .... 11"
LONGITUDINAL TABLE TRAVEL ................. 15"
CROSS TRAVEL .............................. 8"
GRINDING WHEEL CAPACITY ............... 8" x″/4" x 1-1/4"
CROSS FEED PER REV. OF HANDWHEEL
(.001" GRAD.) ............................. 0.100"
VERTICAL FEED PER REV. OF HANDWHEEL
(.0001" GRAD.) ............................ 0.0500"
FINE FEED SYSTEM FOR CROSS FEED, GRAD. TO .. 0.00005"
APPROX. WEIGHT ............................ 1,500 LBS.
APPROX. DIMENSIONS ........................ 58" X 46" X 71"H
EQUIPPED WITH:

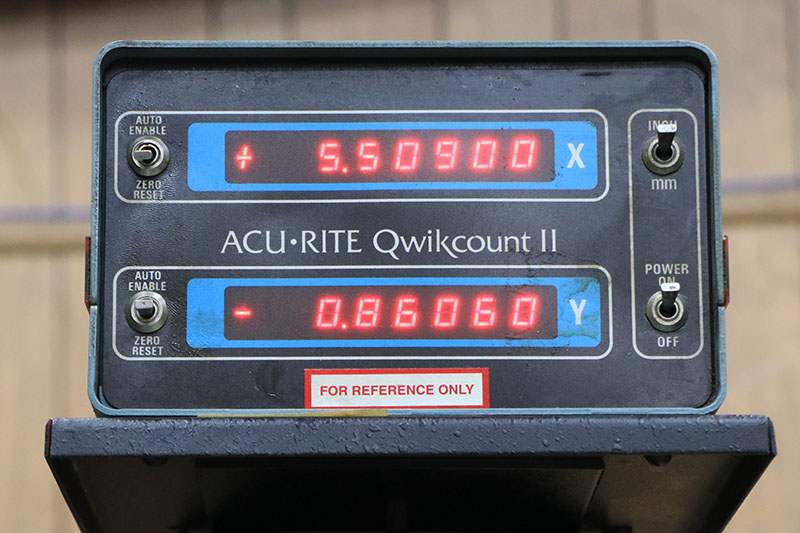

"ACU-RITE" 2-AXIS DIGITAL READOUT DISPLAY
FINE FEED OPTION FOR CROSS AXIS, 0.000050" GRADUATION ON DIAL
TABLE MOVES ON LINEAR BALL BEARINGS (REMOVABLE)
MOUNTED BETWEEN (3) VEE WAYS& (1) FLAT WAY ...
DRIVEN BY CABLE SYSTEM
HARDENED… REPLACEABLE STEEL WAYS ON TABLE,
CARRIAGE/SADDLE… COLUMN
CROSS FEED HANDWHEEL (.0001" VERNIER)
PRECISION CARTRIDGE SPINDLE DESIGN
1-1/3 HP SPINDLE MOTOR
AUTOMATIC LUBRICATION SYSTEM

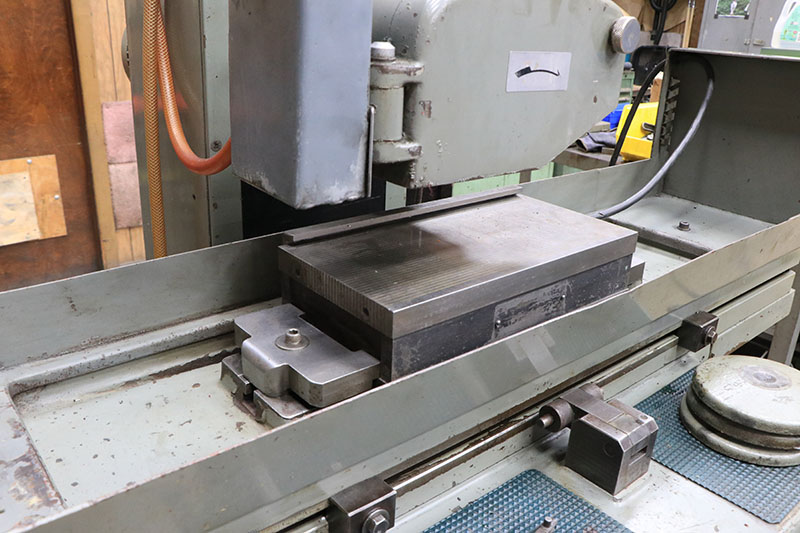

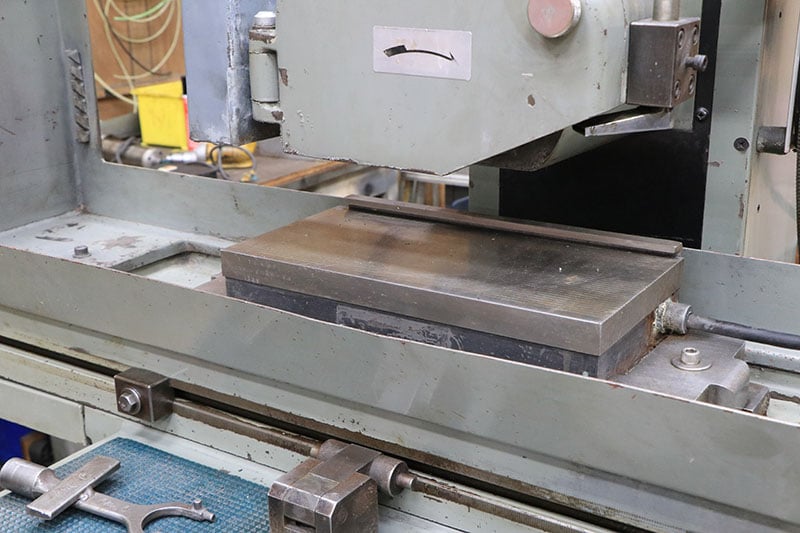

6" X 12"…"O.S. WALKER" FINE-DIVISION ELECTRO-MAGNETIC CHUCK
O.S. WALKER…"SMART SERIES" VARIABLE HOLD CHUCK CONTROLLER
HAS OPTIONAL COOLANT GUARDING, COOLANT PUMP… TANK
CAN BE PROVIDED FOR ADDITIONAL COST
MACHINE IS WIRED FOR″/60/220 VOLT ELECTRICS
LINK TO VIDEO:… https://youtu.be/tdrPDSsUQPw
** INSPECT UNDER POWER OUR HARRISON, NJ WAREHOUSE **
** EXCLELLENT CONDITION… APPEARANCE - ORIGINAL PAINT **
