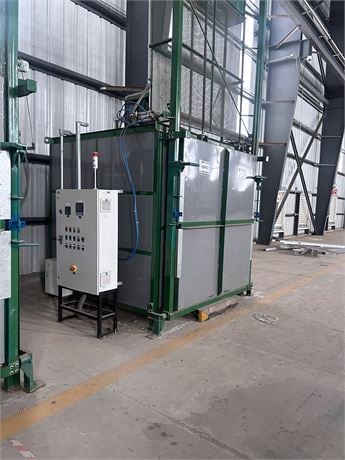

59" width x 59" H x 59" D Prefinsa #HR-AG-150-3.4/800-PE, box furnace, 1472°F max., 96 kW, 3 ton load, 460 V., 3 Ph., pneumatic lift door, 2021

Prefinsa HRAG 1503.4/800PE Furnace (2021)

Description

Maximum Temperature: 800°C (1472°F)
Heating Power: 96 kW (≈327,500 BTU/hr)
Temperature Differential: ±8°C

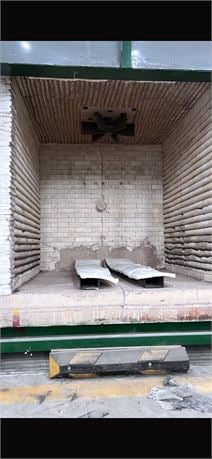

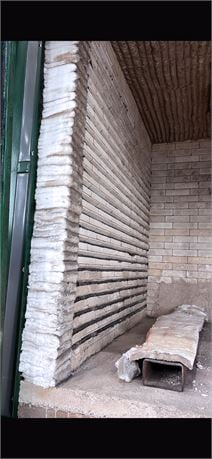

Usable Chamber Size: 150 cm W × 150 cm D × 150 cm H (59" × 59" × 59")
Total Chamber Size: 170 cm W × 170 cm D × 175 cm H (67" × 67" × 69")
Usable Chamber Volume: 3.37 m³ (119 ft³)
Load Capacity: 3 tons
Power Requirements: 460V, 3Phase
External Dimensions: 270 cm W × 230 cm D × 340 cm H (106" × 91" × 134")
Weight: 25,000 lbs

Equipped With

Electric resistance heating system

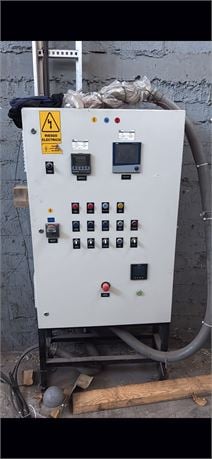

Digital temperature controller with ramp programming
3channel digital temperature recorder
(3) fixed thermocouples (control, safety, monitoring)

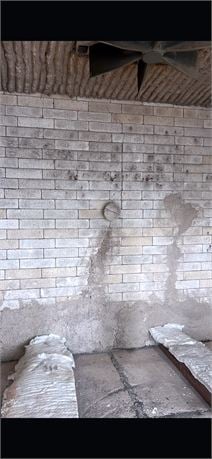

Internal forcedair circulation system

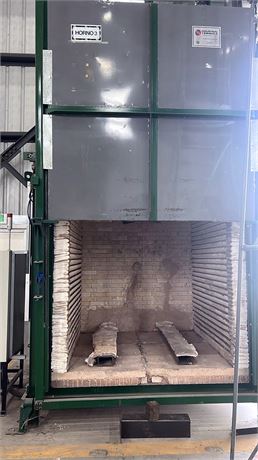

Pneumatic frontlifting door
(9) TUS ports
External lower guide rail for loading/unloading equipment
