550 lb. Hofmann #18.1, Balancer, 35" diameter x 75" centers

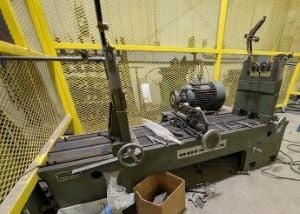

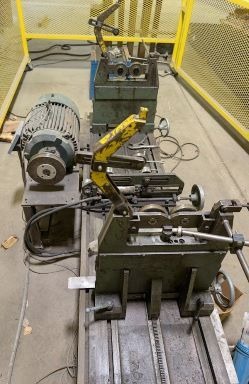

HOFMANN (USED) MODEL 18.1 BALANCER MACHINE
660 LBS MAXIMUM OVERLOAD WEIGHT OF ROTOR (SYMMETRICAL)
550 LBS MAXIMUM NORMAL OPERATING WEIGHT OF ROTOR
275 LBS MAXIMUM WEIGHT PER PEDESTAL
2 LBS MINIMUM WEIGHT OF ROTOR
35" MAXIMUM DIAMETER OF ROTOR OVER BELT TENSIONER
50" MAXIMUM DIAMETER OF ROTOR OVER REST OF BED
75" MAXIMUM LENGTH OF ROTOR BETWEEN CENTERS OF BEARINGS
5.5" MINIMUM LENGTH OF ROTOR BETWEEN CENTERS OF BEARINGS
45" CENTER HEIGHT FROM FLOOR
BALANCING SPEEDS INFINITELY VARIABLE
- DEPENDENT ON DRIVE DIAMETER OF ROTOR
5.25" LARGE DRIVE PULLY DIAMETER
2.5" SMALL DRIVE PULLY DIAMETER
10 MICROINCH ACCURACY (DISPLACEMENT OF C.G.)
0.25 GMM/KG SENSITIVITY
600 X 10/6 LBS X RPM/2 WN/2
95% UNBALANCE REDUCTION RATIO
2 HP AC POWR OF MOTOR
1.5 KW POWER CONSUMPTION
3.5 AMP @ 480 VOLT, APPROX FULL CURRENT LOAD
5 BAR AIR REQUIREMENTS
