54" x 6.5" Stamco, Slitting Line, 25000 lb., .015" - .125" Gauge Range, 16" - 28" ID Cone Uncoiler, 56"/60" Wide Arm Turnstile, 54" Drum Recoiler

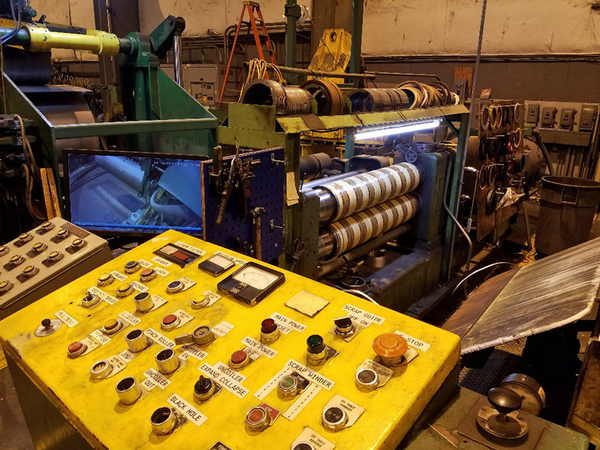

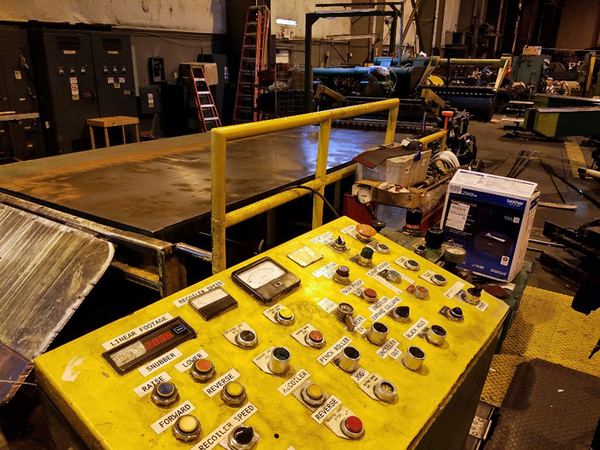

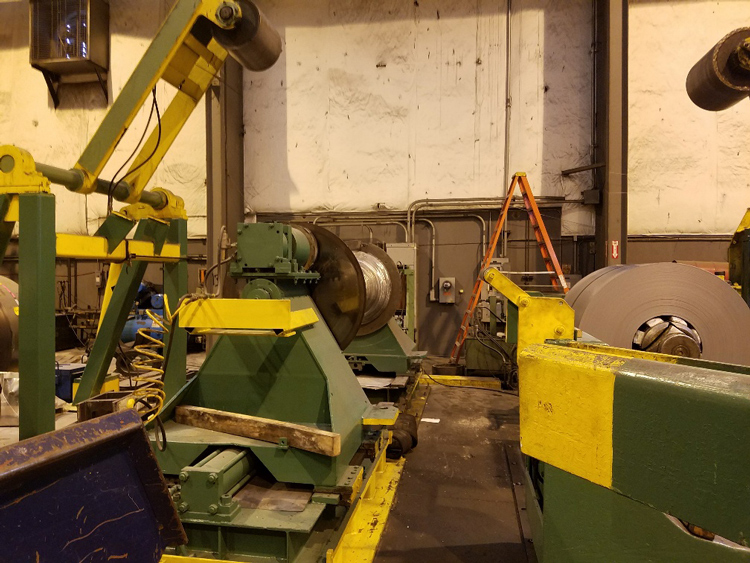

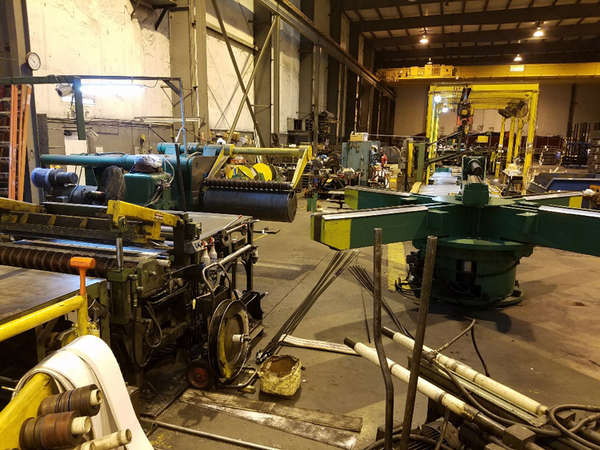

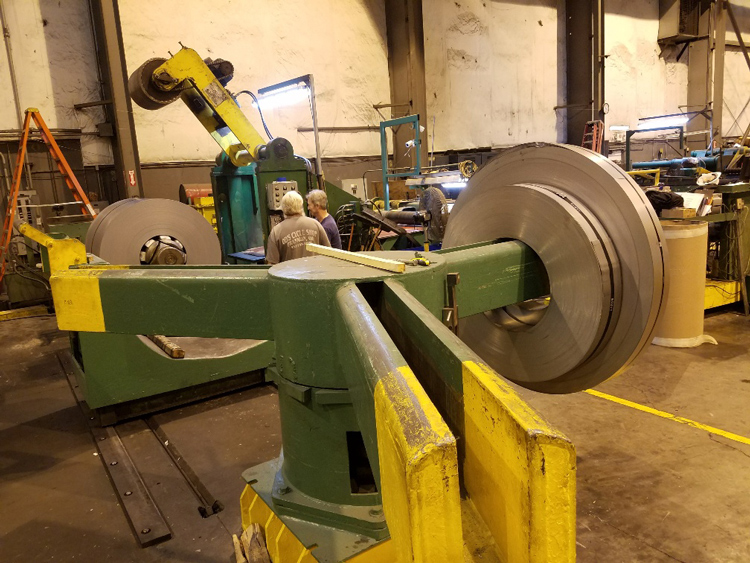

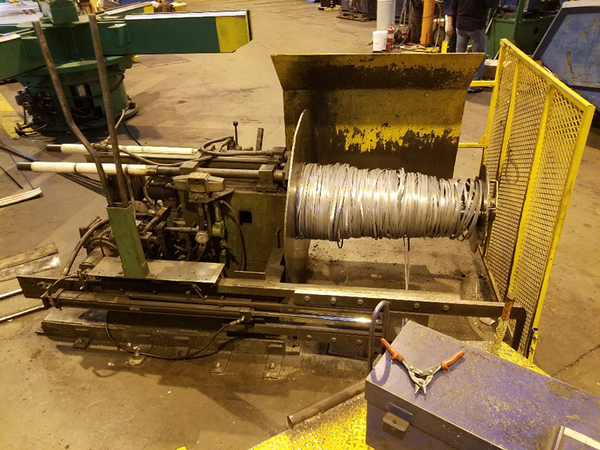

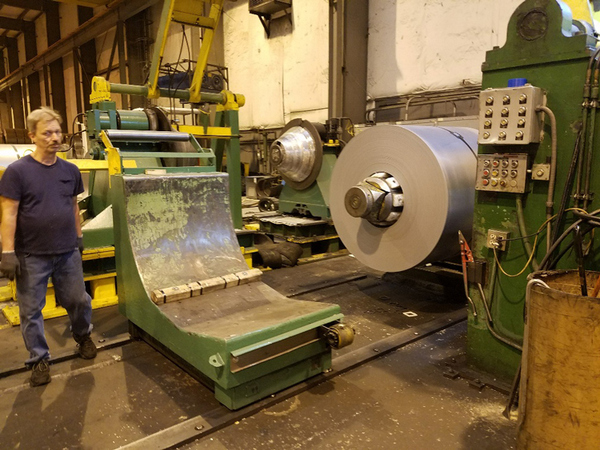

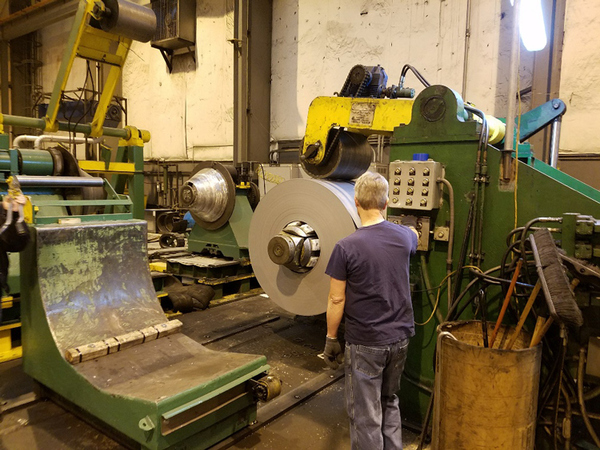

The 54" x 0.125" x 25,000 Lb. Stamco Slitting Line, manufactured by Stamco, is a robust used machine designed for precision slitting operations. It can handle a maximum width of 54 inches and accommodates materials with thicknesses ranging from 0.015 to 0.125 inches. With a coil weight capacity of 25,000 lbs, this system operates smoothly in a left-to-right direction, making it suitable for large-scale industrial applications. Essential features include a 40,000 lb capacity cone uncoiler with a 16”-28” coil ID, and a free-standing hold-down system. The entry and exit mechanisms are well-designed, with an entry turnstile that supports 25,000 lbs per arm and a 54" wide recoiler driven by a powerful 100 HP Baldor motor. This line is also equipped with a hydraulic oscillating eye scrap winder and self-contained hydraulics for efficient material handling. The slitting line is powered by solid-state DC rectifiers and controlled by an Allen-Bradley Motor Control Center, ensuring reliable and responsive operations. The combination of these features makes the Stamco Slitting Line an efficient and effective solution for businesses looking to enhance their metal processing capabilities.
54"0.015"0.125"25,000 lbs.Left to Right
