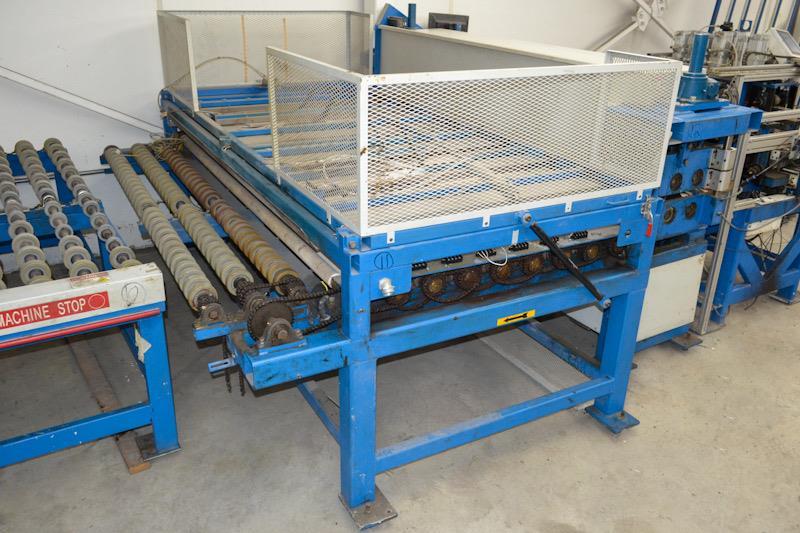

53" wide x 99" long, GED #MHMO355013S624T00000, Heated Roller Press, 6" x 88" rolls, 480 V., 2008

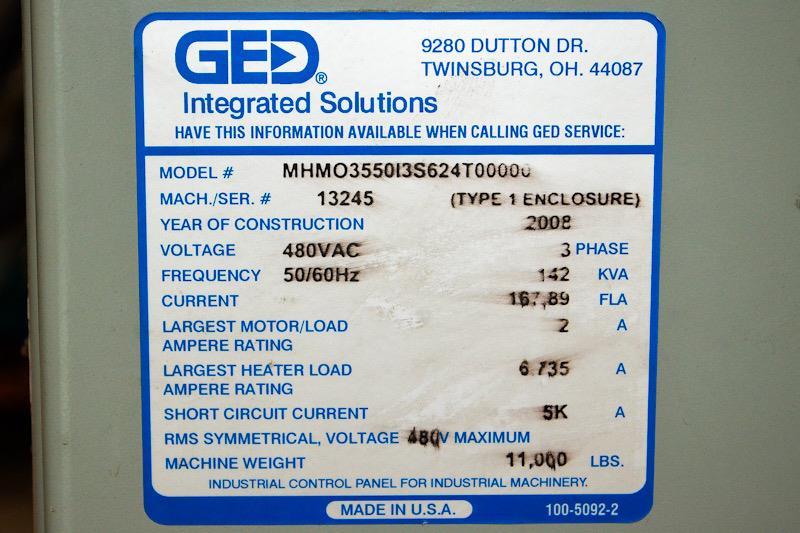

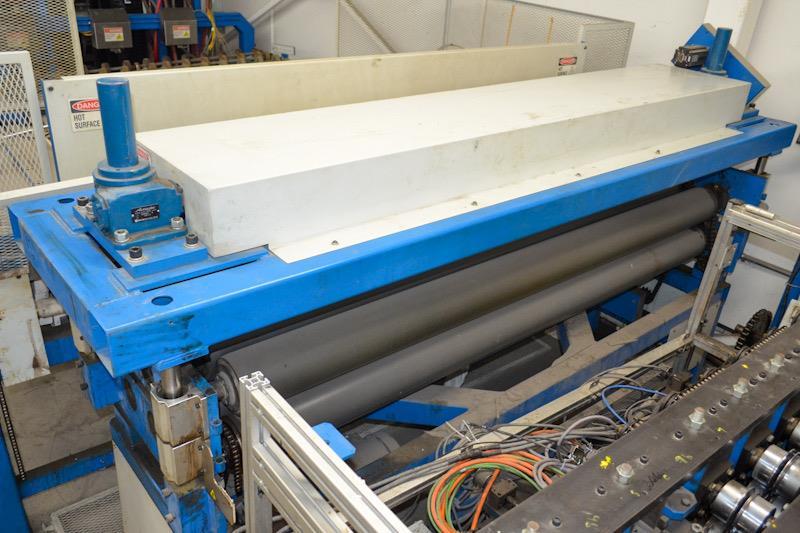

GED - MHMO355013S624T00000 3550: High-Efficiency Oven & Roll Press i-3 - 24 EmitterThe fastest, most "energy efficient" way to produce IGUs, the Oven & Roll Press offers significant energy savings of ...50% on units less than 42"; (1067 mm) wide over other IG ovens. With its high intensity infrared emitters and intelligent control, it ensures even heating across the length and width of every unit with just a fraction of the energy.(3) Operating modes virtually eliminate interruptions and fit any need. The shape of the emitters and the gold plating direct energy to the seal line for consistent wet-out using less energy, and high-temperature ceramic rolls allows for a quick shutdown and no warping. Components are located outside the heated section for longer life and reduced maintenance & downtime. Sensors will not allow emitters to energize until the oven shafts are spinning.Features: -- (3) Top & (3) Bottom 6"; Dia. x 88"; L Rolls. -- IGU Thickness adjustment for continuous operation. -- (3) Operating modes: Manual, Semi-automatic, or Fully automatic. -- Low-E Detection option. -- Preset IGU recipes for various types of units; optimal heat & speed settings & adjustment for Low-E or other glass types. -- Individual control of each emitter. -- High temperature ceramic rolls eliminate warping. -- Nonstick press rolls for quick, easy cleanup. -- No blowers for low energy costs & noise levels. -- Outside access for electrical & drive train connections. -- Extra wide oven design heats consistently. -- Independent automatic dual-zone design. -- Operator screen tracks idle time & units processed. -- Automatic idle feature reduces energy consumption by up to ...25%. -- Shadow technology energizes & de-energizes emitters. -- High-efficiency infrared emitters.Infeed Conveyor Dimensions: 99" x 53" x 40" H.Oven Dimensions: 118" x 74" x 65" H.Roll Press Dimensions: 112" x 34" x 68" H.Electrical Cabinet Dimensions: 46" x 22" x 65" H.NOTE: This High-Efficiency Oven & Roll Press is also part of a "complete" GED Horizontal Intercept IGU (Insulated Glass Unit) Manufacturing Line (https://www.glassandwindowmachinery.com/Detail/GM-011067), which is also available for purchase.
