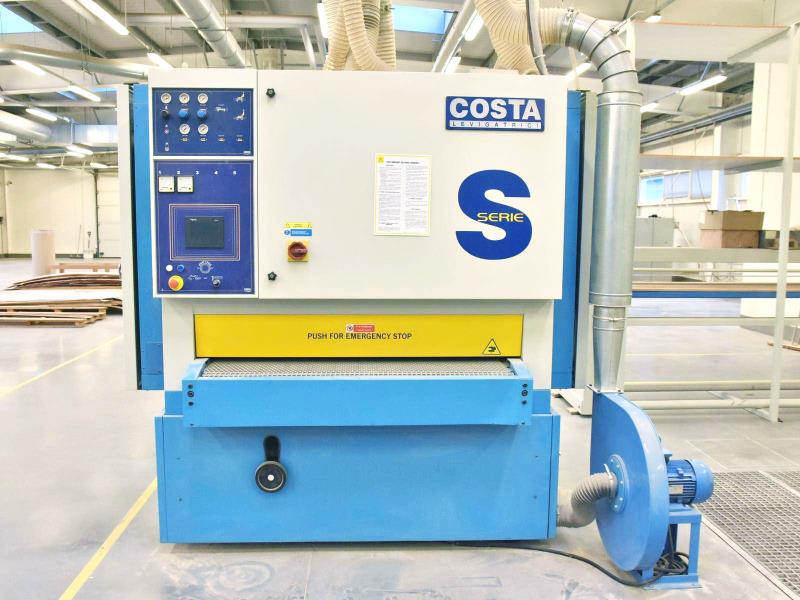

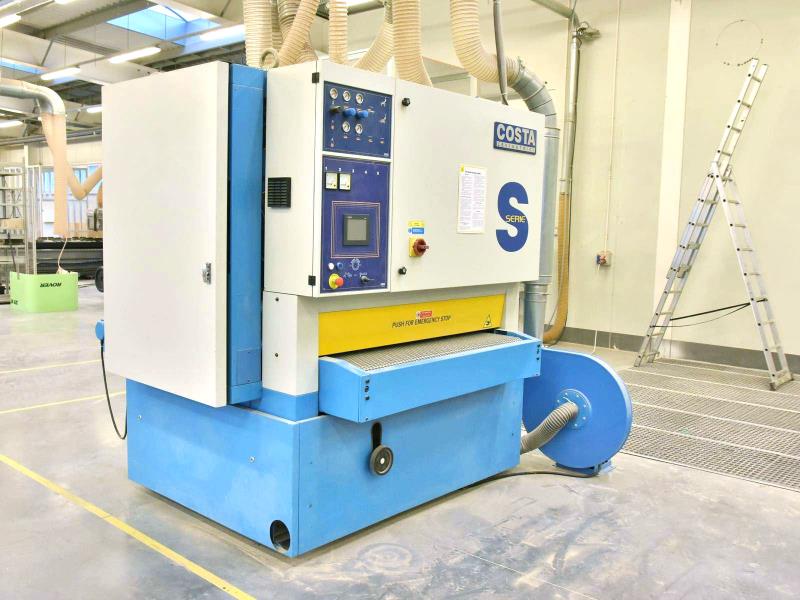

53" Costa #S-A-1/TRIT-1350, 2-head belt sander, 16-82 FPM, emergency stop, 2009

Estimated monthly payment valid upon approved credit.

Request Formal Quote

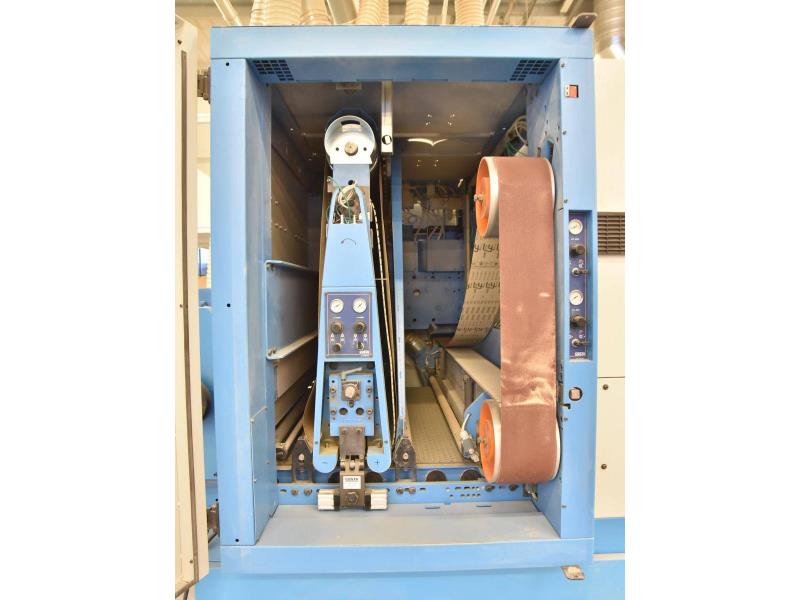

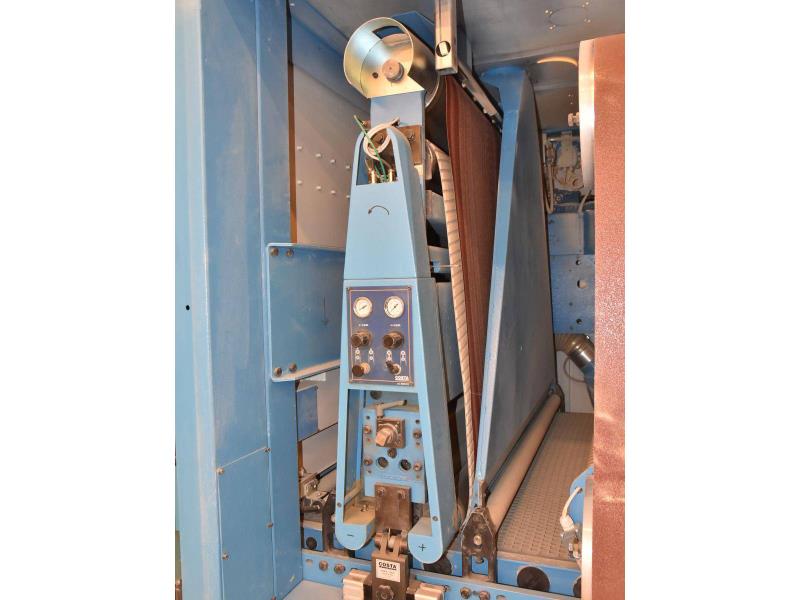

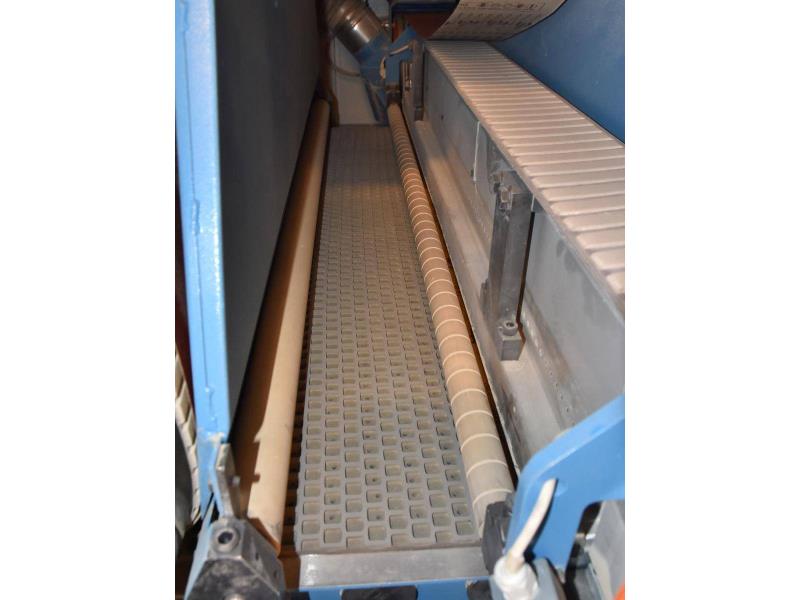

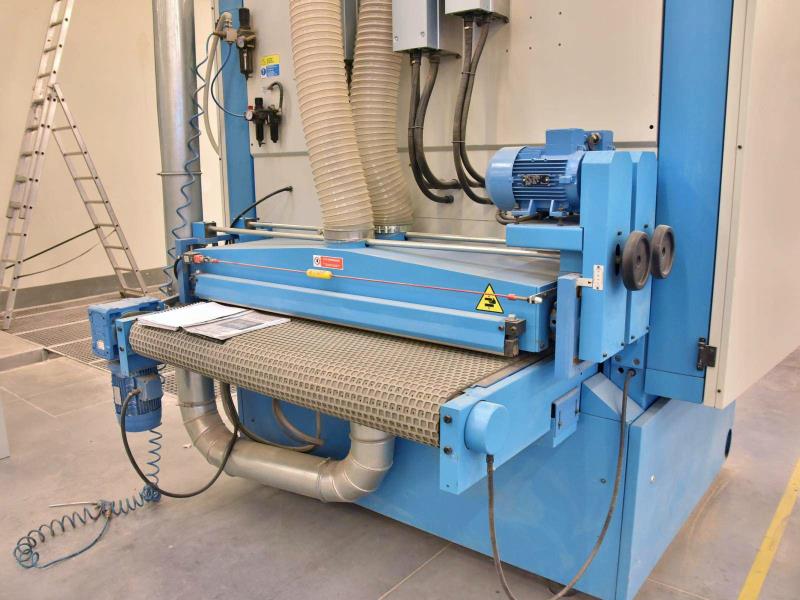

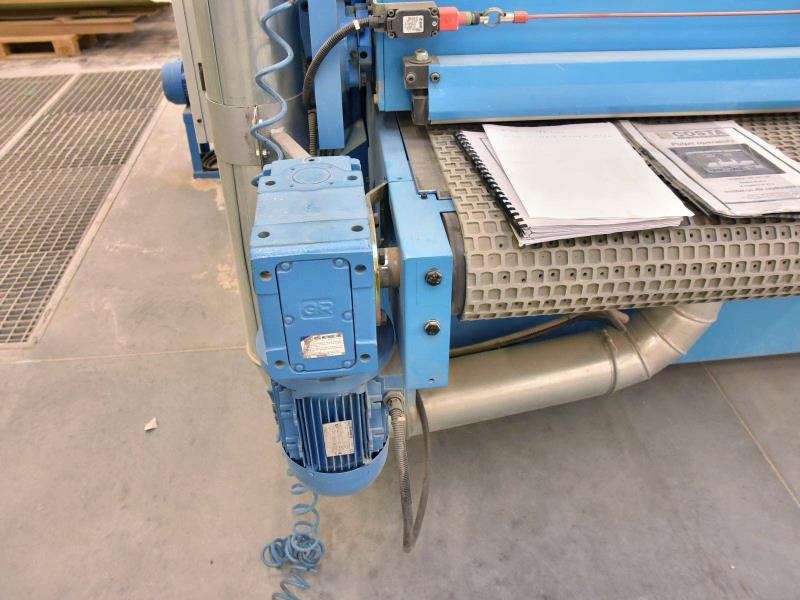

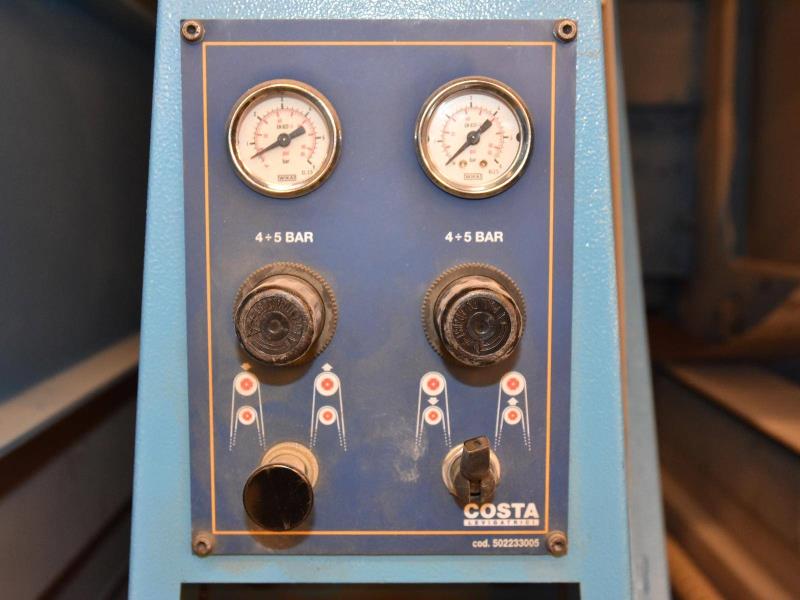

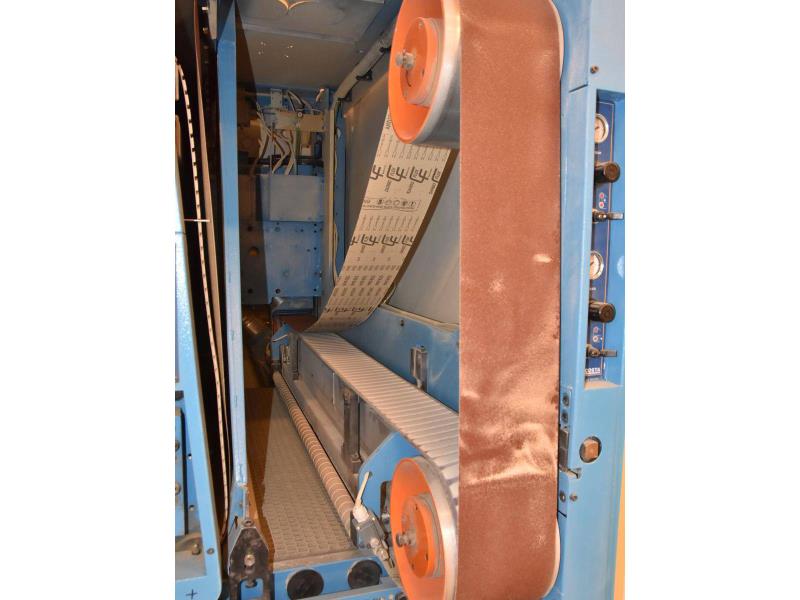

COSTA SA 1/ TRIT 1350 ... Wide Belt Sander - 2-Head, 1,350 mm (53") working width. With (1) Cross belt sanding head, segmented, (1) "Superfinish" segmented finishing platen, and (1) Outfeed Rotary Panel Cleaning brush.Head configuration: -- 1st Head: Segmented cross belt with computer controlled narrow segments that conform to part shape and size. Driven by 11 kW (15 HP) motor, 5.650 mm x 150 mm (222" x 6") wide abrasive belt with inside chevron belt. -- 2nd Head: "Superfinish" TP32 segmented finishing platen, (32) electro-pneumatically controlled narrow segments conform to panel width and length for thin veneer or sealer sanding. With inner chevron belt. Driven by 7,5 kW (10 HP) motor. Abrasive belt dimensions 1.380 x 2.620 mm (54-5/16" x 103-1/8"). -- All heads equipped with: infinitely variable sanding belt speeds, oscillating air jet blowers for abrasive belt cleaning, pneumatic belt tensioning and electronic tracking. -- Pos. 3: Outfeed Rotary Panel Cleaning brush. -- Feed system: ● Variable feed speed conveyor 5-25 m/Min (16-82 FPM), ● Vacuum conveyor bed assembly with suction fan and motor assembly. ● Constant pass line height. ● Spring loaded hold downs. ● Powered raise & lowering of conveyor bed, with 3-160 mm (1/8" - 6-5/16") opening. ● Infeed protection against oversized work pieces. -- Machine management: SCHNEIDER ELECTRIC MAGELIS. Infeed of machine settings and cycle-start function. Operated by electromechanical panel placed in front panel of the machine. -- Equipped with: Load meters. Emergency stops. -- Connections: Total power requirement 32 kW; air pressure required 6 bar (87 psi). -- CE ConformityActual model is COSTA SA 1/ TRIT 1350 ... Wide Belt Sander - 2-Head, 1,350 mm (53") working width. Note: EX-FACTORY’s Logistic Department is experienced and set up to provide “Full Service Logistics"; from Overseas Suppliers to your Door. …Packaging, Container Loading, Ocean Freight, Marine Insurance (door to door), US or Canadian Customs, Duty and domestic shipping to your Plant Door.
