Description

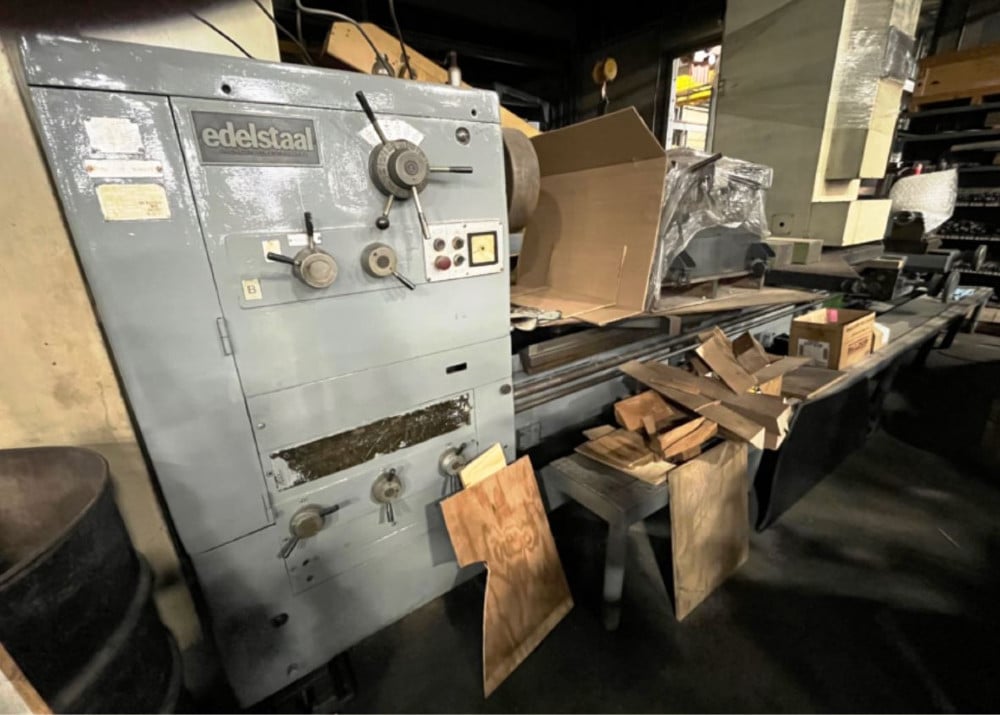

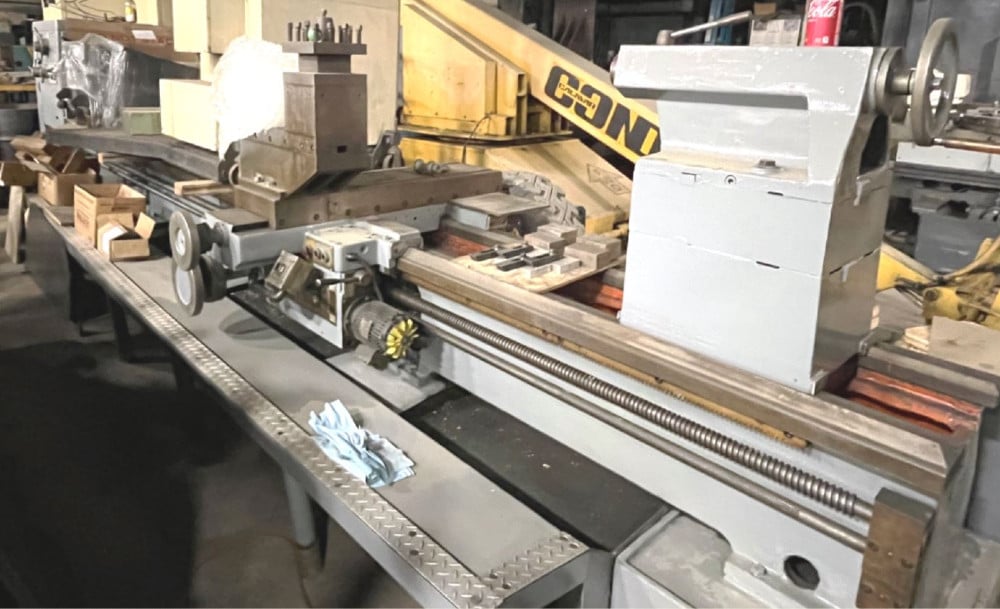

1-(used) Edelstaal 52" x 200" Heavy Duty Engine Lathe, New 1978.
SPECIFICATIONS:
Swing over bed........................................... 52"
Swing over cross slide................................ 36"
Swing in gap............................................ 61.5"
Distance between centers........................ 200"
Spindle nose (Camlock)........................ D-1-11
Hole in spindle........................................ 4-1/8"
Spindle speeds (23)................... 8 – 1,250 rpm
Feeds (44 each)
Longitudinal......................... 0.0024 - 0.56 ipr
Cross................................... 0.0012 – 0.28 ipr
Rapid traverse (long./cross)........... 150/75 ipm
Threading;
English (40)................................... 1/4 - 80 tpi
Metric (43).................................... 1 – 176 mm
Diametral (40)................................. 2-1/2 – 64
Module (39)........................................ 0.5 – 80
Cross slide travel............................... 19-11/16"
Top slide travel..................................... 17-5/16"
Tail stock spindle travel.......................... 12-3/4"
Tail stock spindle taper............................ #6 MT
Main motor.......................... 30Hp/3/60/220/440
Weight (approx.)................................ 16,750 lb.
EQUIPPED WITH:

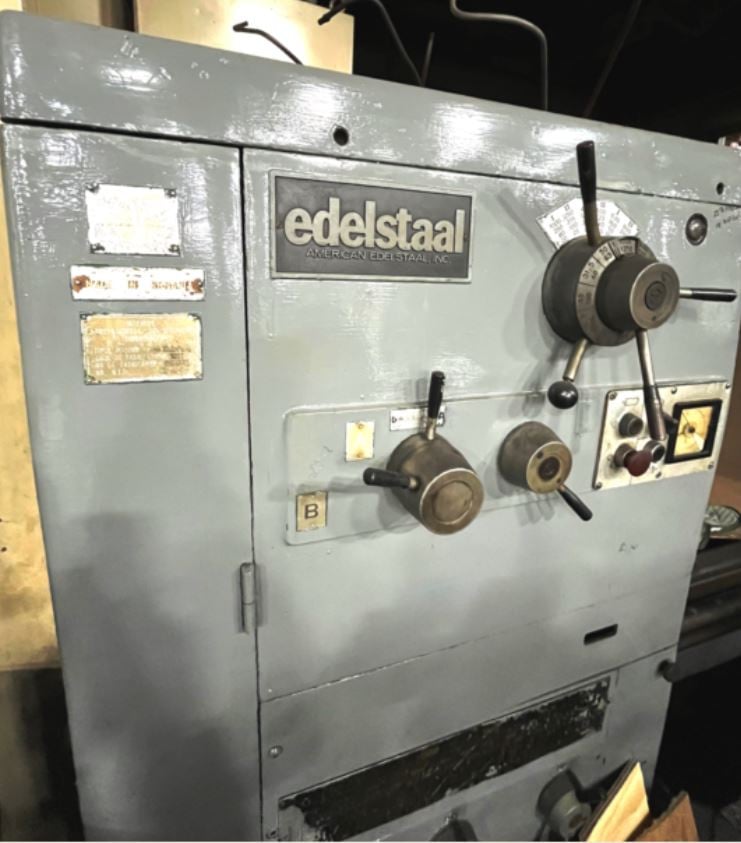

Raised head stock
In/Met threading
Hardened & ground bed ways
19.5" 3-Jaw chuck
4-Way tool post

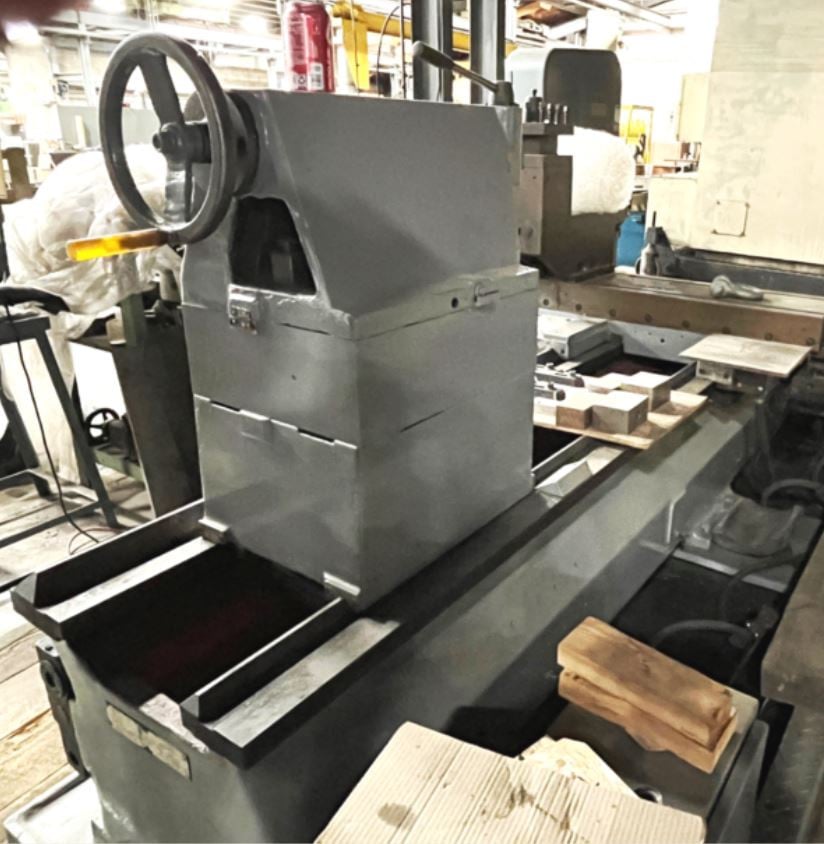

Tail stock
Taper attachment
4-Way rapid traverse
SPECIFICATIONS:
Swing over bed........................................... 52"
Swing over cross slide................................ 36"
Swing in gap............................................ 61.5"
Distance between centers........................ 200"
Spindle nose (Camlock)........................ D-1-11
Hole in spindle........................................ 4-1/8"
Spindle speeds (23)................... 8 – 1,250 rpm
Feeds (44 each)
Longitudinal......................... 0.0024 - 0.56 ipr
Cross................................... 0.0012 – 0.28 ipr
Rapid traverse (long./cross)........... 150/75 ipm
Threading;
English (40)................................... 1/4 - 80 tpi
Metric (43).................................... 1 – 176 mm
Diametral (40)................................. 2-1/2 – 64
Module (39)........................................ 0.5 – 80
Cross slide travel............................... 19-11/16"
Top slide travel..................................... 17-5/16"
Tail stock spindle travel.......................... 12-3/4"
Tail stock spindle taper............................ #6 MT
Main motor.......................... 30Hp/3/60/220/440
Weight (approx.)................................ 16,750 lb.
EQUIPPED WITH:
Raised head stock
In/Met threading
Hardened & ground bed ways
19.5" 3-Jaw chuck
4-Way tool post
Tail stock
Taper attachment
4-Way rapid traverse
