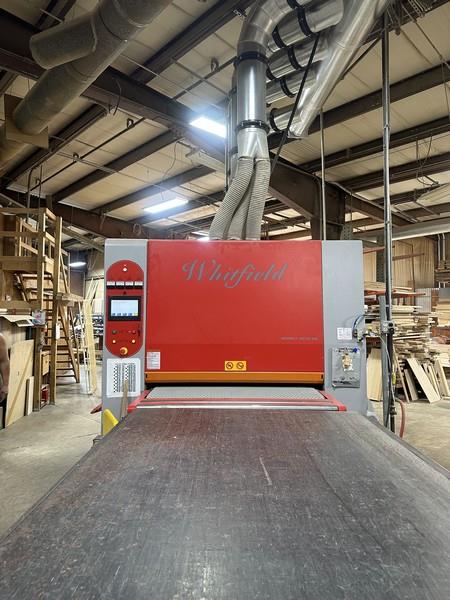

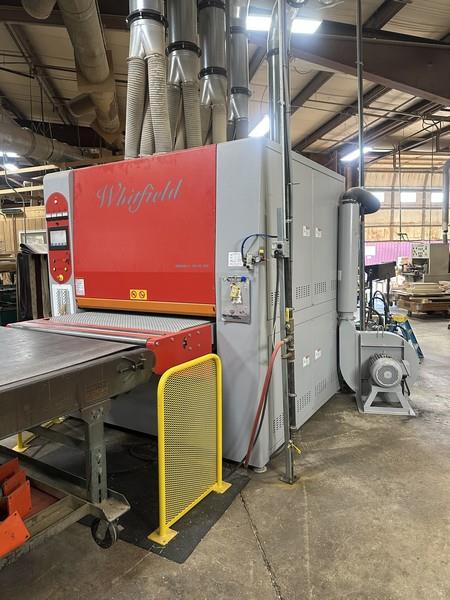

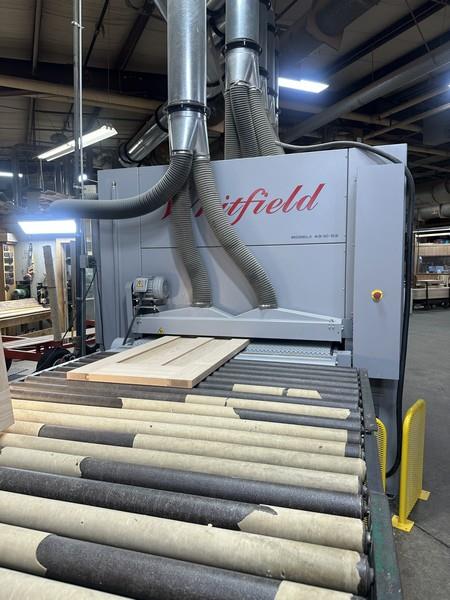

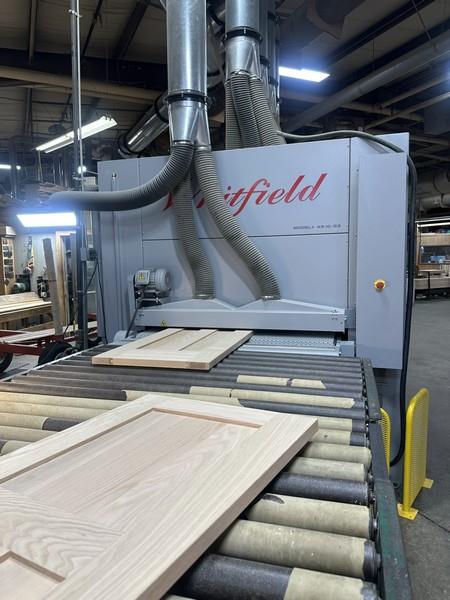

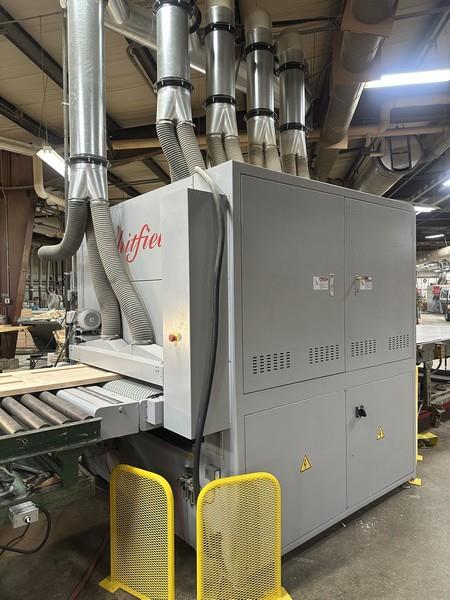

52" Whitfield #43-1C-53, 4-head top wide belt sander, 2026

Estimated monthly payment valid upon approved credit.

Request Formal Quote

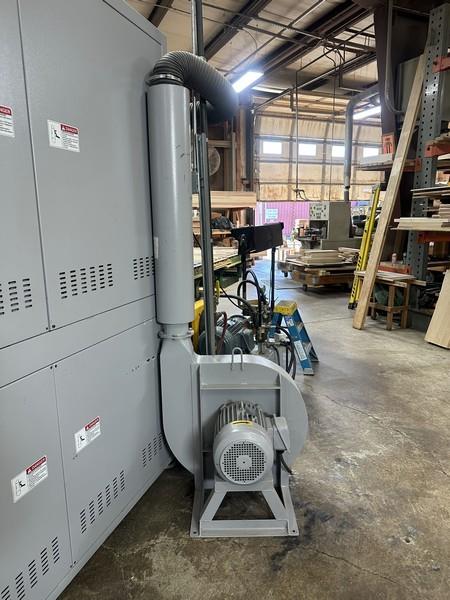

WHITFIELD 43-1C-43 Wide Belt Sander (4) Heads52" wide belt with Steel drum, Rubber drum, Rubber drum and Combi headSpecifications: -- Maximum working width 52" -- Maximum working height 5" -- Heavy-duty structure with base consisting of a cast iron base integrated with stress-relieved steel to ensure machine rigidity and flatness -- The bottom transfer bed is, guided on re-circulating guides and driven by 4 precision ball-screws to ensure a perfect flatness of the working bed.FEEDING SYSTEM -- Bottom rubber vacuum belt driven by hydraulic motor to ensure consistent feed speed as load varies. -- Vacuum suction unit with 7.5 HP motor and noise dampening silencer -- Infeed safety switchMachine configured as follows: Pos.1- -- Steel Drum 300mm diameter x 1350mm length -- 40HP auto oscillating belt with through beam sensors to control belt tracking. -- Lead in and lead out hold down shoes -- Dust collection at exit of belt -- Belt brake switch -- Mechanical braking -- Belt cleaning with oscillating air blow off -- Belt Size 54" x 103" Pos.2 - -- Rubber Drum 300mm diameter x 1350mm length -- 40HP auto oscillating belt with through beam sensors to control belt tracking. -- Lead-in and lead-out hold-down shoes -- Dust collection at exit of belt -- Belt brake switch -- Mechanical braking -- Belt cleaning with oscillating air blow off -- Belt Size 54" x 103"Pos.3 - -- Rubber Drum, Inverter driven for control of rotation direction and speed; 300 mm diameter x 1350 mm length -- 30HP auto oscillating belt with through beam sensors to control belt tracking. -- Lead in and lead out hold down shoes -- Dust collection at exit of belt -- Belt brake switch -- Mechanical braking -- Belt cleaning with oscillating air blow off -- Belt Size 54" x 103"Pos.4 -- Combi Head 160mm diameter x 1350mm length -- 25HP auto oscillating belt with through beam sensors to control belt tracking. -- Lead in and lead out hold down shoes -- Dust collection at exit of belt -- Belt brake switch -- Mechanical braking -- Belt cleaning with oscillating air blow off -- Belt Size 54" x 103" --Combi Head 160mm diameter x 1350mm lengthAlso Included: -- Panel Cleaning Brush mounted at Out-Feed --1HP motor -- Dust extraction portControl -- Mitsubishi Touch screen and PLC to control; -- Thickness setting -- Manage 1/0 -- Control Belt Feed Speed -- Head 3 Rotation Direction and Speed -- Display 1/0 for trouble shootingNote: Installed in January 2025 and ran until July 2025
