Description

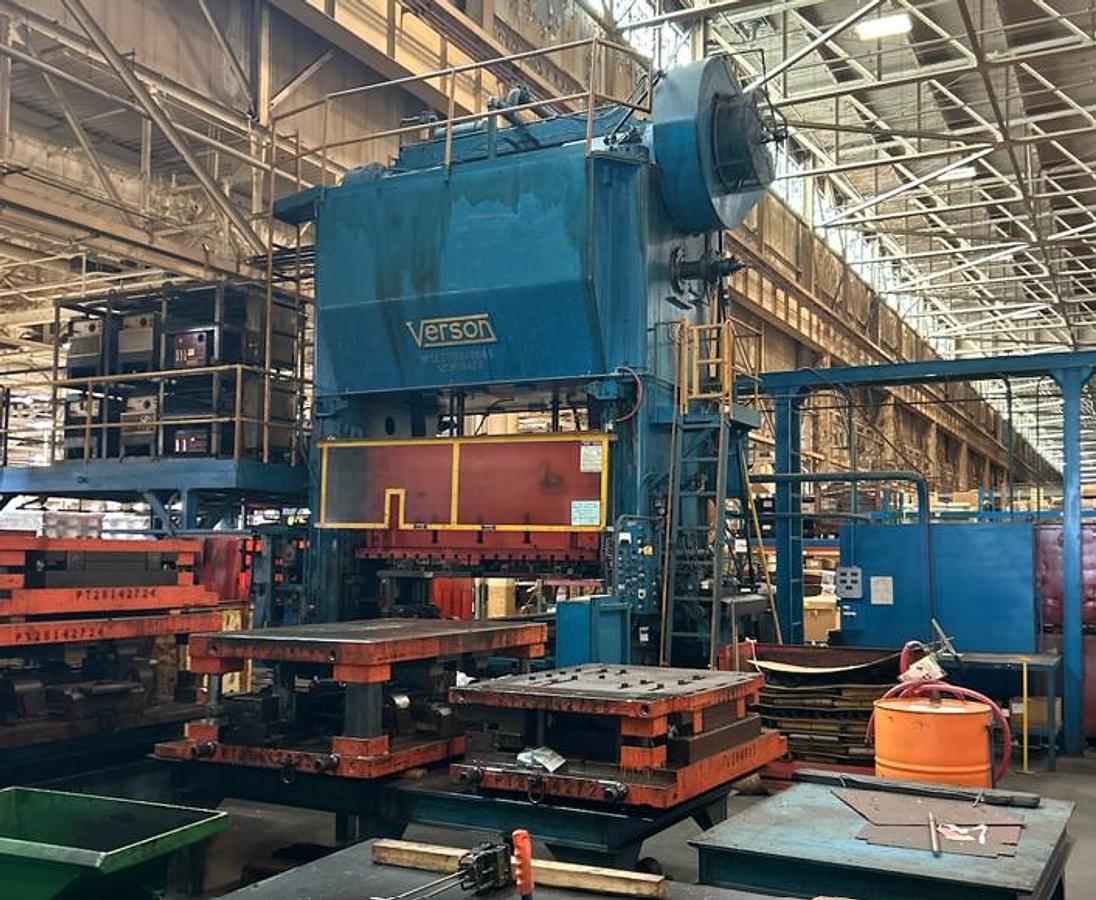

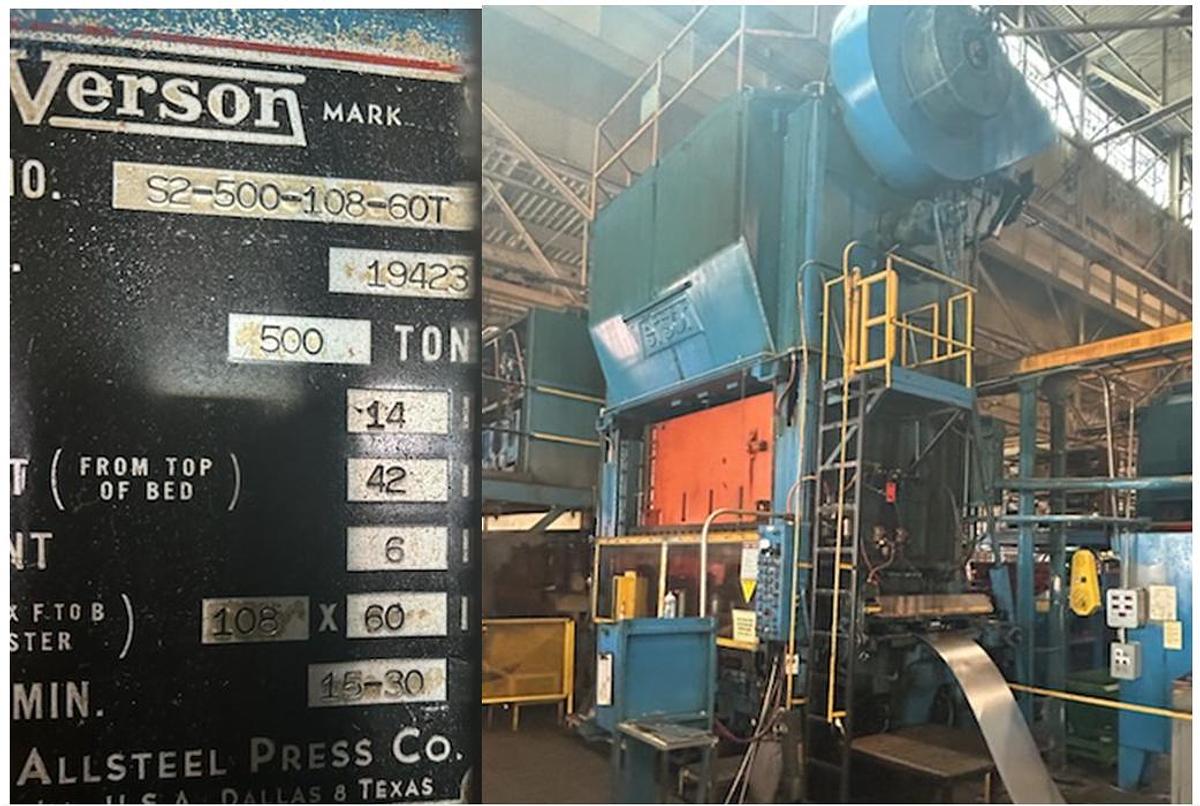

This used Verson S2-500-108-60 (1970) is a press available from R.A.B. Industries. It is equipped with the nan controller.1-USED VERSON S2-500-108-60 SSDC PRESS WITH WINDOWS IN SIDE COLUMNSSERIAL NUMBER 19432DATE OF MFG. 1970STK#105395==========================================SPECIFICATIONS WHILE OBTAINED FROM SOURCES DEEMEDRELIABLE ARE SUBJECT TO CHANGE WITHOUT NOTICEAND TO VERIFICATION BY BUYER:SPECIFICATIONS:BED AREA 108" X 60"RAM AREA 108" X 60"STROKE 14"SHUT HEIGHT SDAU 42"ADJUSTMENT OF RAM 6"SPEED 15-30 SPMWINDOWS IN SIDE COLUMNSFLOOR STANDINGPOWER TAKE OFF ON CRANK FOR FEEDERTIE ROD CONSTRUCTIONAIR CLUTCHAIR BRAKEBUYER TO LOADCALL FOR INSPECTION APPOINTMENT
The 1970 Verson S2-500-108-60 is a straight side double crank (SSDC) press featuring tie rod construction and a floor-standing design. This unit provides a 500-ton capacity with a bed and ram area both measuring 108 inches by 60 inches. The press operates with a 14-inch stroke and a shut height of 42 inches on the bed ...more
Tonnage 500 tons, Stroke 14 inches, Shut Height 44 inches, SPM No attached, Vari Speed (Yes/No) yes, Bed W 108 inches, Bed L 60 inches, Crank (Single/Double) No attached, Air Clutch (Yes/No) No attached, CNC Control No attached, Type of CNC Control No attached, Dimensions No attached, 500 ton Bliss Straight Side ...more
Tonnage 500, Stroke 14 inches, Shut Height 44 inches, Adjustment 12 inches, Bed Size 108" LR x 60" FB, Ram Area 108" LR x 60" FB, SPM 20-50 VSPM, Standard, 500-ton Bliss Straight Side Mechanical Press, Metal Stamping Press Model# SC2-500-108-60, Full Remanufacture in Process - Complete 2025, 14" Stroke, 44" Shut ...more
capacity500 tons @ 1/2" stroke14" max shut height to bed32" (sdau) bed area84" x 42" (RL x fb) speed18 - 36 spm ram adjustment15" (motorized) ram area84" rl x 42" fb (REBUILT & TIGHTENED UP INCLUDES NEW RAM ADJUSTMENT MOTOR) bolster plate7" h x 84" rl x 42" fb dist uprights / floor to bed85" / 40" (TO FEET) window ...more
