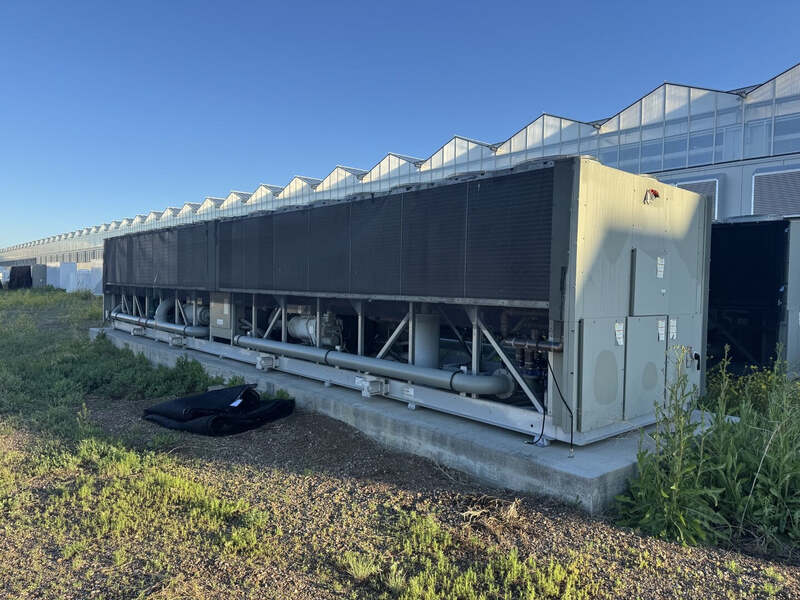

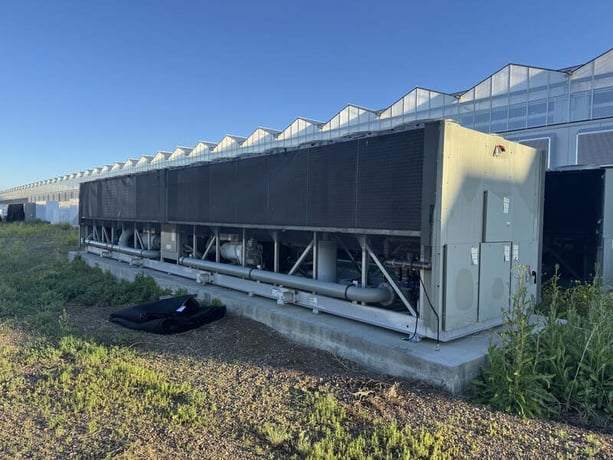

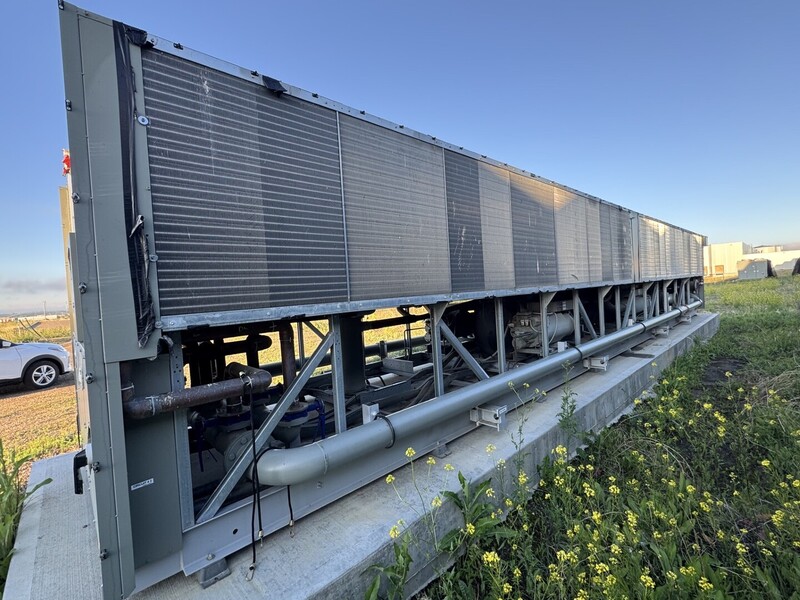

500 Ton, Trane, Air-Cooled Helical Rotary Chiller, 350 psig, (4) 1.5 HP fan motors, R134A refrigerant, 575 Volts, 3PH

$248,500 USD

Request Formal Quote

SKU: 156467

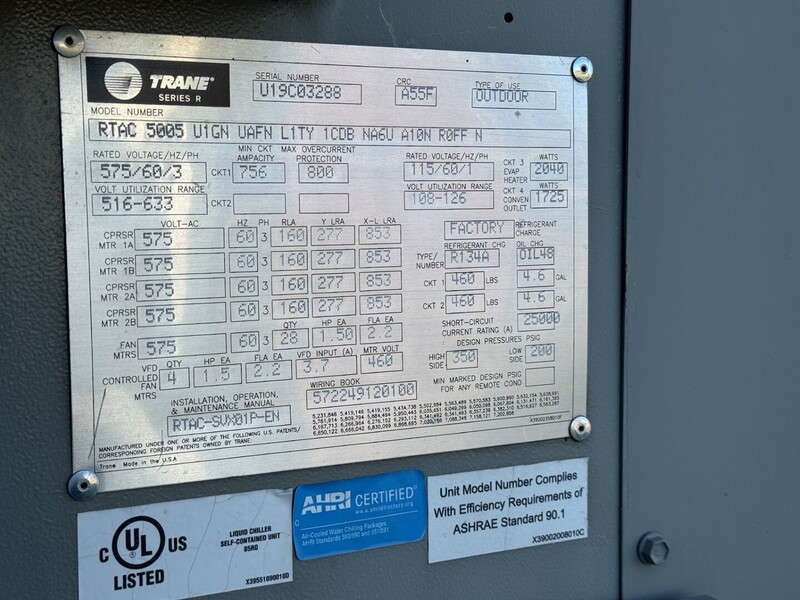

Model: RTAC 5005 U1GN UAFN L1TY 1CDB NA6U A10N R0FF N
Condition: Used
S/N: U19C03288
Made In: UNITED STATES
Dimensions: 100.00 (H) x 90.00 (W) x 545.00 (L) inches
Additional Description:
Type Of Use: Outdoor
Nominal Capacity: 500 tons
Rated Voltage: 575 V, 60 Hz, 3-ph
Volt Utilization Range: 516-633 V
Min. Circuit Ampacity: 756 A
Max. Overcurrent Protection: 800 A
Compressor Qty: 4
Compressor Motors: 575 VAC, 60 Hz, 3-ph, 160 RLA, 277 Y LRA, 853 X-L LRA
Fan Qty: 28
Fan Motors: 1.5 HP, 575 VAC, 60 Hz, 3-ph, 2.2 FLA
VFD Controlled Fan Motors (4): 1.5 HP, 2.2 FLA, 3.7 A VFD Input, 460 Volt
Evaporator Heater: 2040 Watts, 115 VAC, 60 Hz, 1-ph
Convenience Outlet: 1725 Watts, 108-126 Volt Utilization Range
Refrigerant: R134A, 460 lbs each, for circuit 1 & circuit 2
Oil: OIL48, 4.6 Gal each, for circuit 1 & circuit 2
Short Circuit Current Rating: 25000 A
High Side Design Pressure: 350 psig
Low Side Design Pressure: 200 psig
Condenser Fin Material: Standard Aluminum Slit Fins
Operating Weight: 27912 lbs (includes refrigerant and water)
