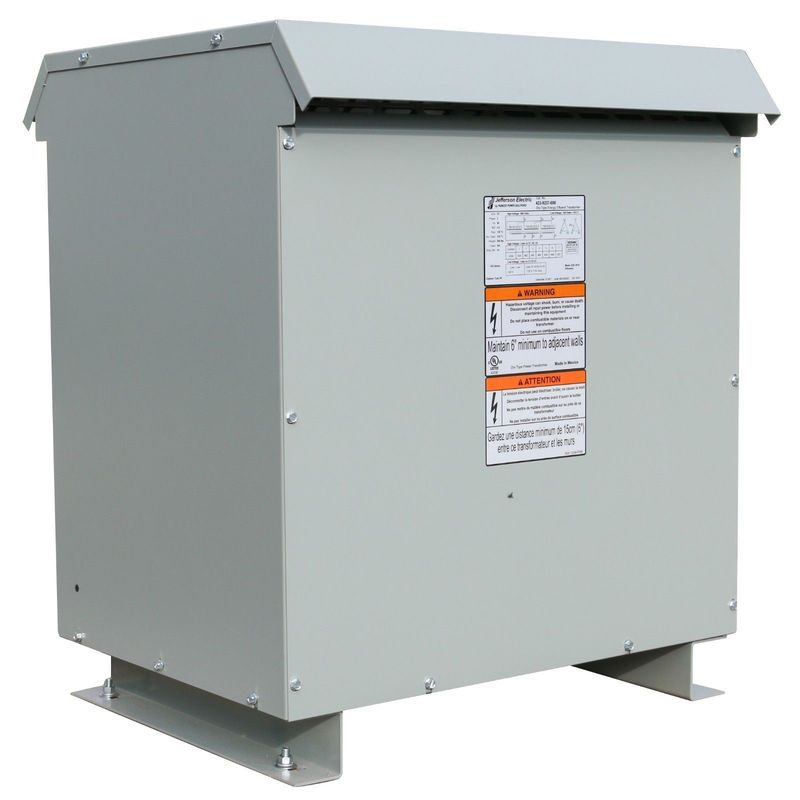

500 KVA 480 Delta Primary, 208Y/120 Secondary, Jefferson, dry, warranty, new, free shipping

Estimated monthly payment valid upon approved credit.

Request Formal Quote

CONDITION: -Factory New Dry Type Energy Efficient Transformer
-10 YEAR LIMITED WARRANTY

***FREE Shipping to Business Addresses only*** Continental USA Only. LIFTGATE FEE is $150.00. We NEED to know if a liftgate is needed at the time of order. NO RESIDENTIAL ADDRESSES

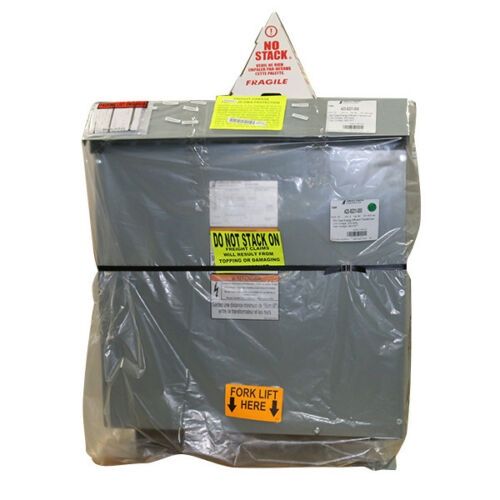

These transformers may ship directly to you from the factory or from our Wisconsin warehouse depending on stock and location.

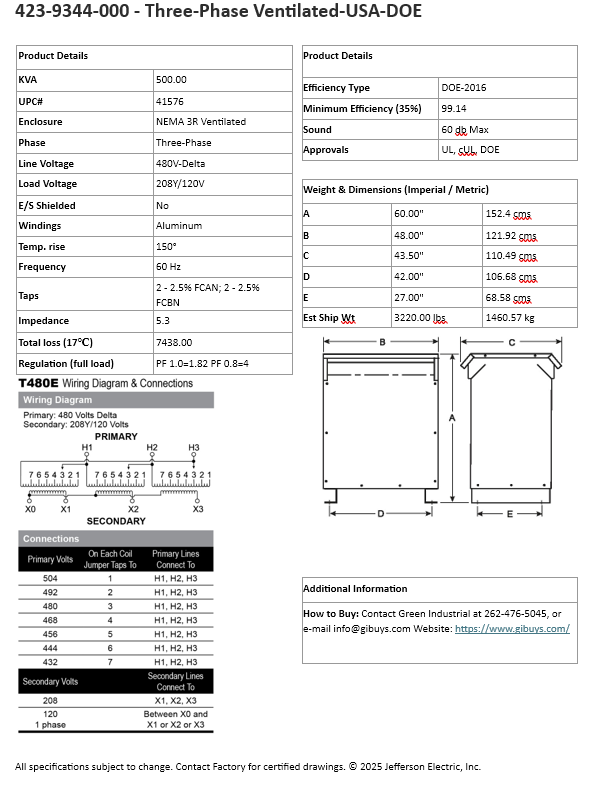

Manufacturer : Jefferson Electric
Catalog Number : 423-9344-000
KVA : 500
Phase : 3

PRIMARY VOLTAGE / INPUT / LINE SIDE : 480 Volts Delta, 3 Wire (3 Phase)
Primary Feed Input Amps / Line Side : 601 Amps of 480 volt, 3 phase, 3 Wire
SECONDARY VOLTAGE / OUTPUT / LOAD SIDE : 208Y/120 Volts, 4 Wire (3 Phase)
Secondary Output Amps / Load Side : 1388 Amps of 208Y/120, 3 phase, 4 Wire
This means that you feed this transformer 601 Amps of 480 Delta, 3 Phase, 3 Wire and you will receive 1388 amps of 208Y/120, 4 wire.

Max Temp Rise : 150 Deg C
Efficiency : Meets DOE-2016 Efficiency Standards
Enclosure Type : NEMA 3R (Indoor AND Outdoor Rated)
Winding Material : AL / AL
Primary Side Taps : YES 504, 492, 480, 468, 456, 444, 432
Condition : Factory New
Warranty : 10 Year Limited Warranty

GIBUYS Item Number : JH-423-9344-000
