Description

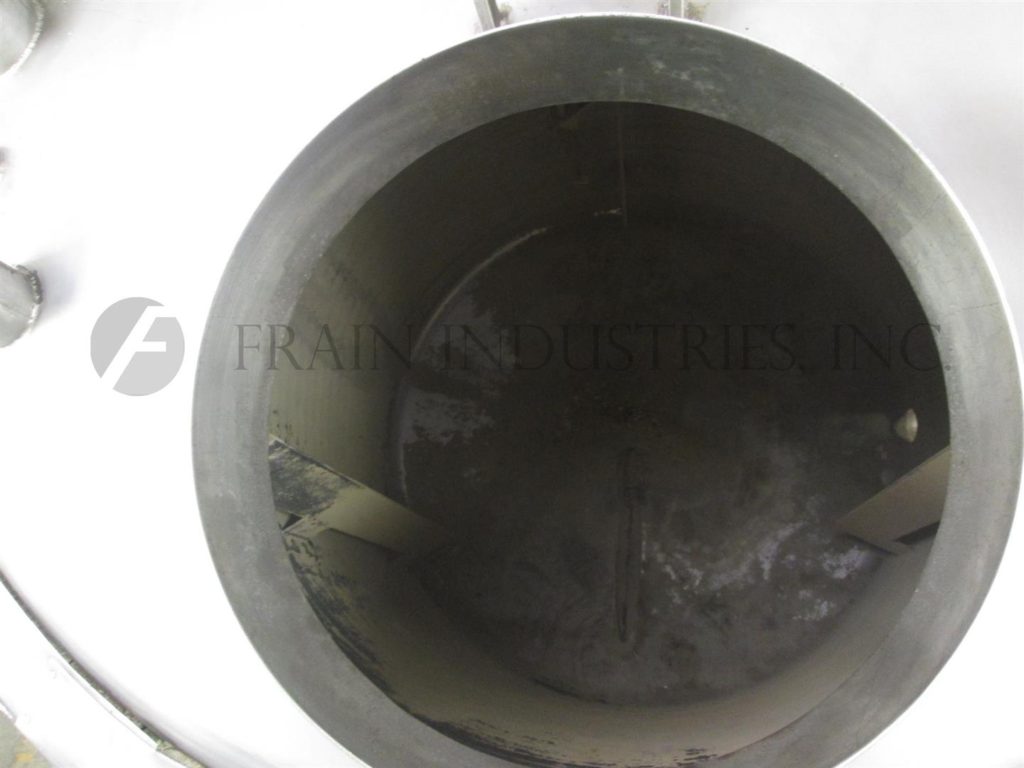

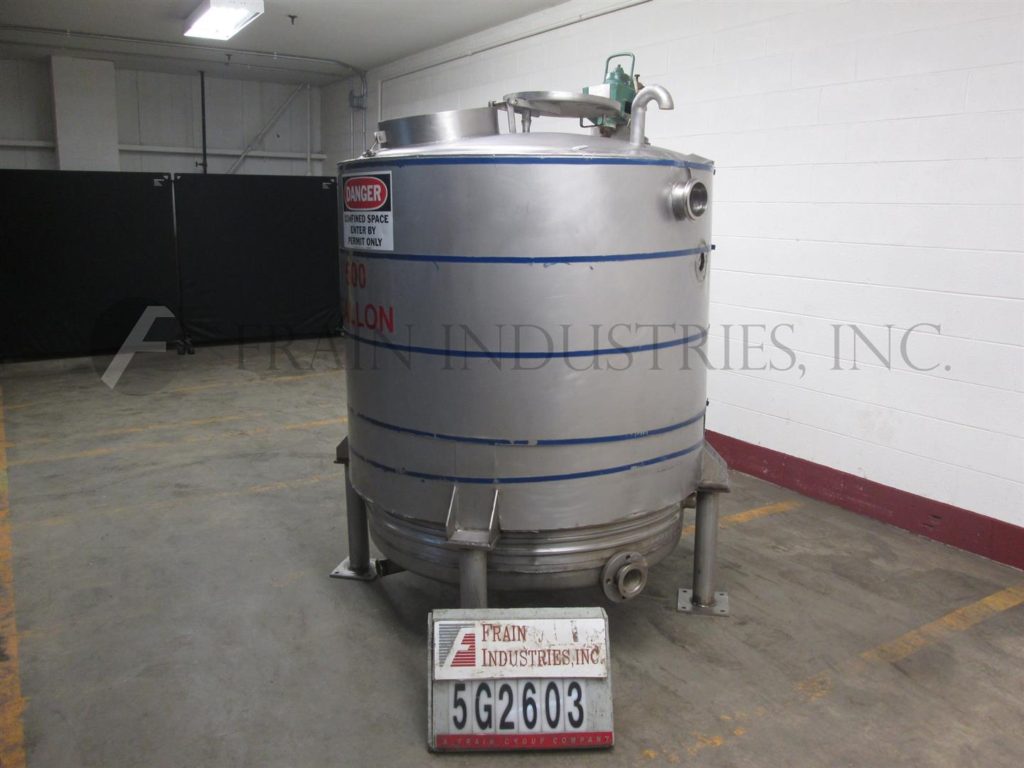

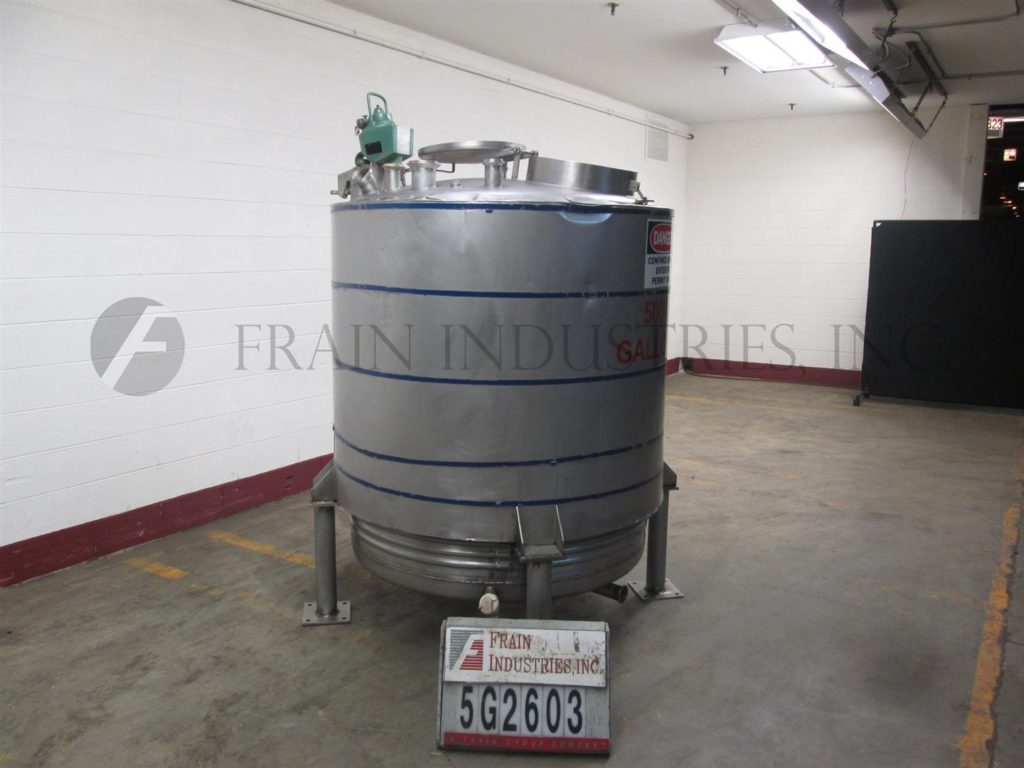

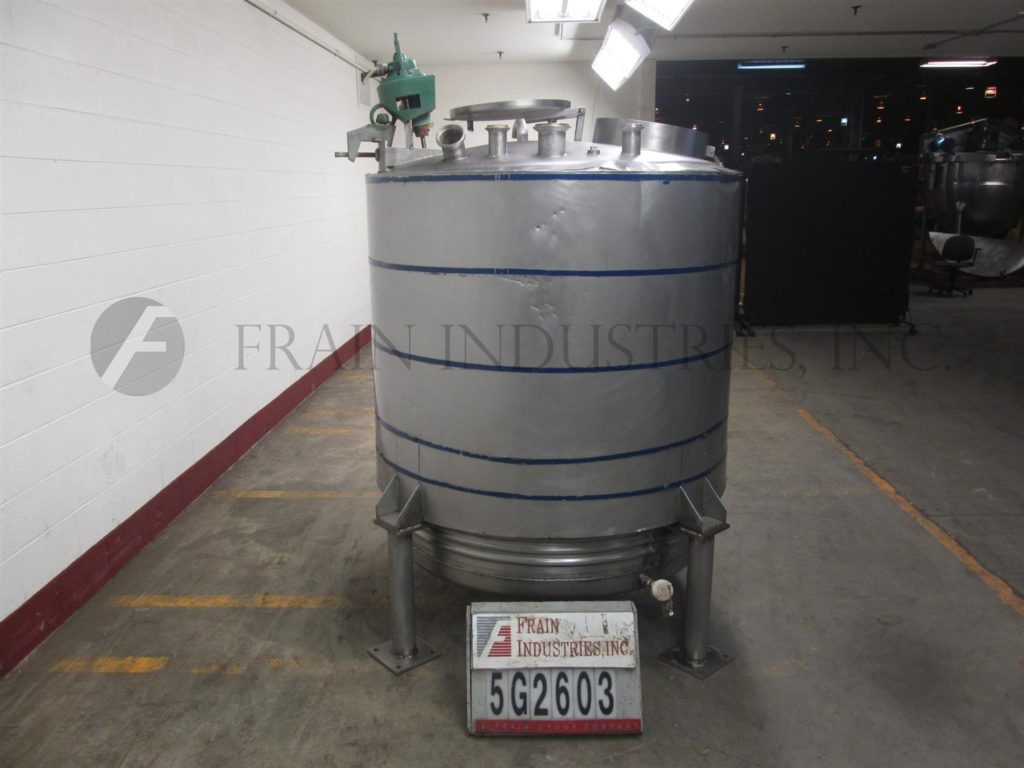

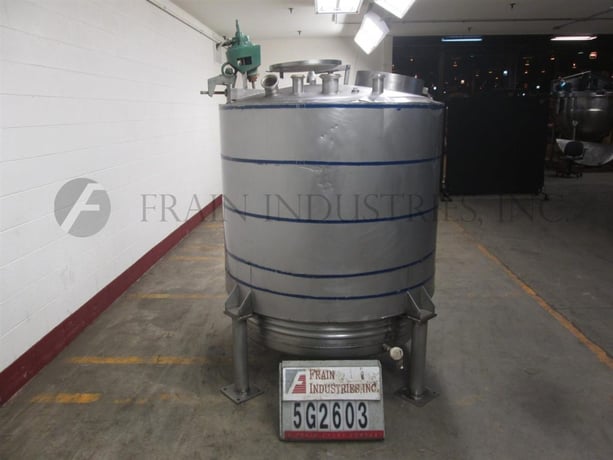

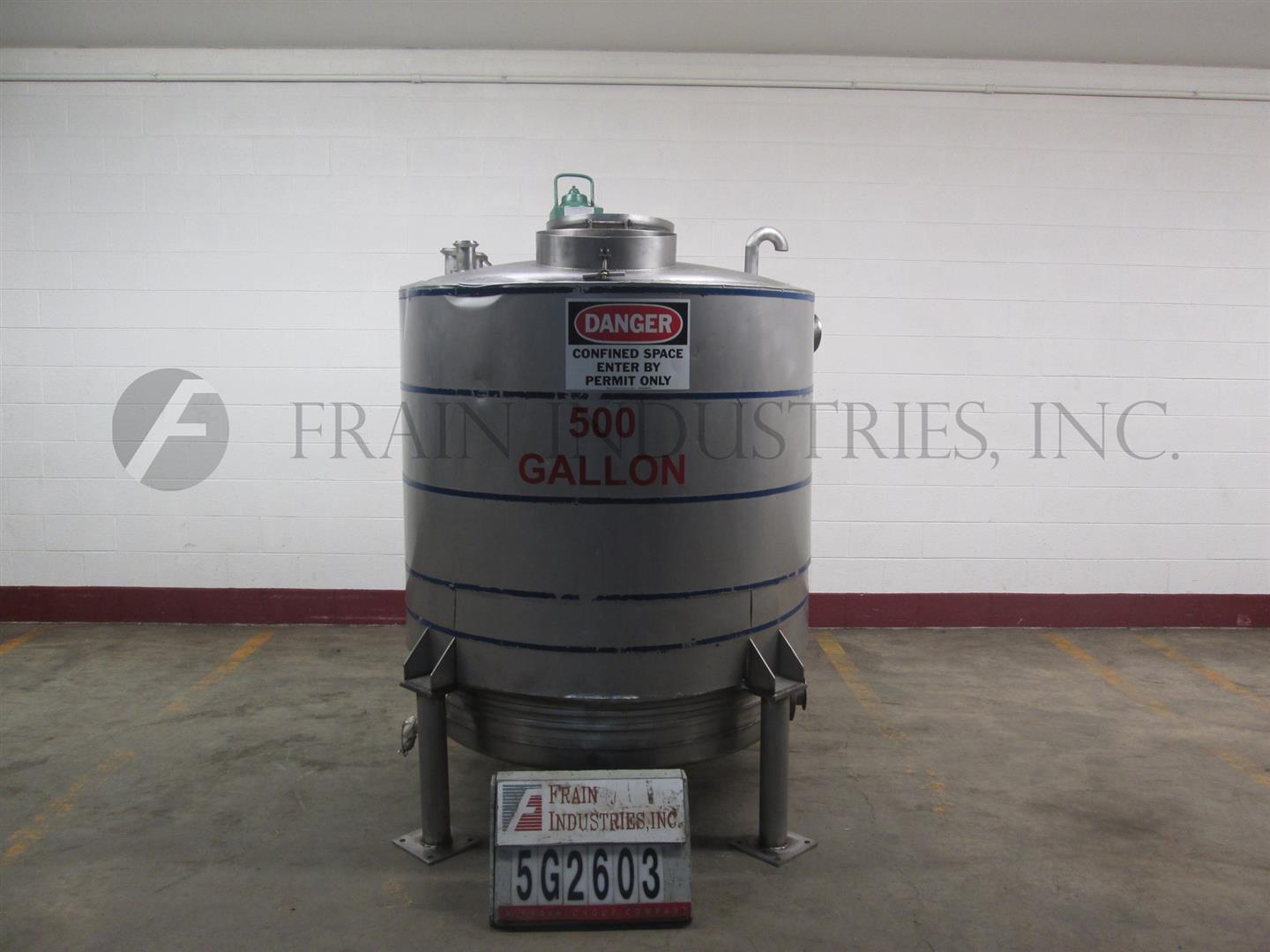

Feldmeier, 500 gallon, 316 stainless steel, low pressure jacketed tank. 51" diameter x 60" straight wall. Side mounted prop style agitator is pneumatically powered. Low pressure jacket has (2) 1.5" ID inlet/outlet connections. Vessel has a dome top with (1) 17" manway, (1) 3.5"ID, (1) 3" ID, (2) 2.5" ID, (1) 1.75" ID and (1) CIP spray nozzle. The sidewall has (1) 4.5" ID and (1) 7.5" diameter four-bolt pattern flange fittings with 3.25" ID. Dish bottom has (1) 2.5" ID side discharge with 18" ground clerance. Mounted on (4) stainless steel legs.
OAD: 70" L x 70" W x 82" H
Get Your Price from Frain Industries!
Buyers Who Viewed This Listing Also Viewed:
500 gallon Ross #FDA-500, 316 Stainless Steel mixing tank, 55" diameter x 60" deep with a 55" straight wall, flat top, dish bottom mounted on 4 leg painted frame
Category: Stainless Steel Food Tanks
Seller: Frain Industries
Location: Carol Stream, IL
Mfr: Ross
Ross, Model FDA-500, 500 gallon, 316 stainless steel mixing tank. Vessel Dimensions: 55" diameter x 60" deep with a 55" straight wall. flat top, 16" OD flip-up / clamp down man way, center bridge mounted 25 Hp scrape surface agitator, 50 Hp high speed saw tooth mixer and (3) CIP spray balls. Dish ...more
460 gallon Stainless Steel Cheese Processing Tank
Category: Stainless Steel Food Tanks
Seller: Genemco
Location: Hearne, TX
Mfr: S/s
Stainless Steel Melt Tank. Approximate capacity: 460 gallons. Carbon steel steam coil overall dimensions: 3 ft. 10 in. L x 2 ft. x 9 in. W. Steam coil has a 2 in. header with 1 in. branches 6 in. apart. Inlet / outlet connections: (2) 1-1/2 in. Outlets, (1) 1 in. Inlet. (1) 1/2 in FNPT connection. Overall dim: 4 ft. 4 ...more
475 gallon Stainless Steel Open-Top Tank, 50" diameter x 60" straight side, 2.5" center bottom outlet, 4' H discharge
Category: Stainless Steel Food Tanks
Seller: Machinery & Equipment Co
Location: Brisbane, CA
Mfr: S/s
Stainless steel open-top tank, approximately 475-gallon capacity. Tank measures 50" diameter X 60" straight side with slight dome bottom leading to 2-1/2" center-bottom outlet with 3' discharge height. Mounted on four (4) steel legs. Measurements: 50" diameter X 60" straight side with slight dome bottom, Gallons: ...more
525 gallon Sprinkman, Stainless Steel Tank, DT/CB, 48" diameter x 48" straight side, 2010
Category: Stainless Steel Food Tanks
Seller: Machinery & Equipment Co
Location: Brisbane, CA
Mfr: Sprinkman
Year: 2010

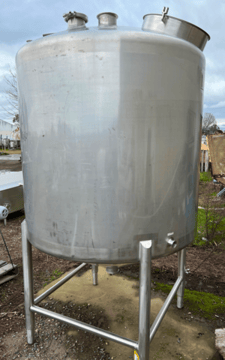

Sprinkman Stainless Steel 525 Gallon Tank with Dish Top and Slight Cone Bottom. Vessel measures 48" diameter x 48" straight side with 4" diameter center bottom outlet (20" clearance from ground). Top head includes 16" diameter top manway, 2" center top opening, (1) 1.5 port", and (5) 4" diameter openings with ...more
