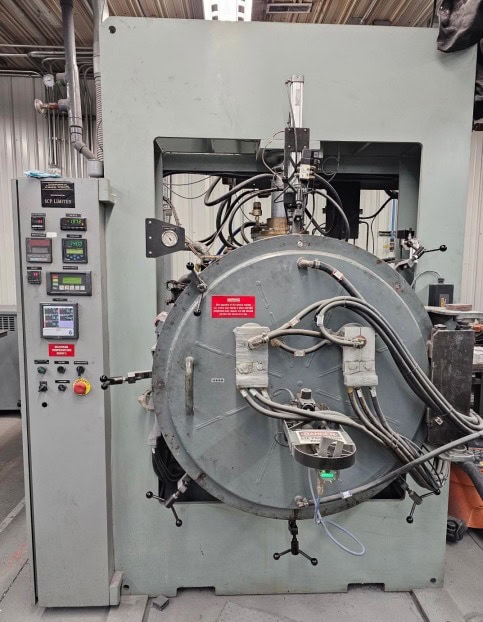

50-ton SCP Limited, Vacuum Hot Press, Yokogawa GX10 Control, 2016 (2 available)

Maximum Temperature/Power:
• 2000°C
• Power: 480VAC 3-Phase / 264FLA

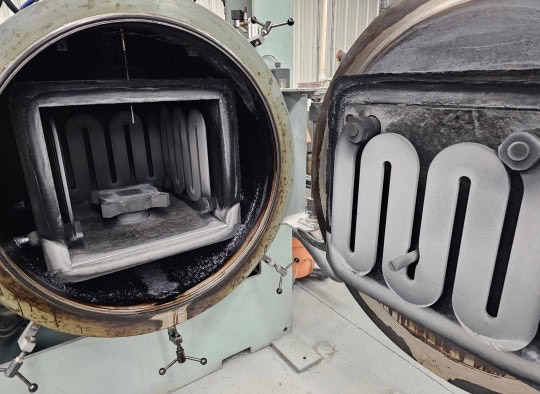

Hot Zone:
• 19” Wide x 21” Deep x 14” Tall
• Ram Window: 10.4”-16.0” (Top Ram Down – Up)
• 2” Graphite Insulation Board
• 5” Diameter Iso-pressed graphite rams
• Four elements / Four-Sided heating
Vessel Atmosphere Control Modes:
• Roughing Vacuum Operation
• Partial Pressure Operation
• Atmosphere (positive pressure) up to approximately 0.5 PSI with maximum flow rate of 1 LPM.

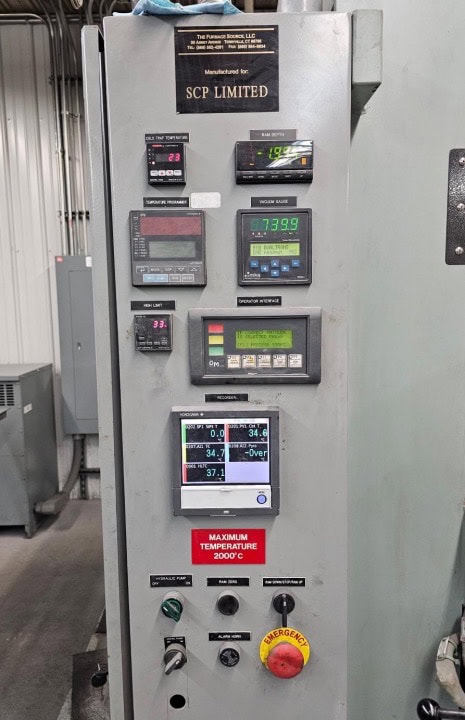

Controls:
• Yokogawa GX10 Program Controller and Datalogger
o Network enabled

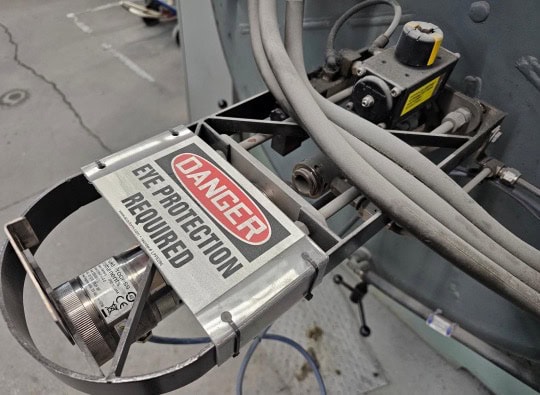

• Fluke Endurance Series Pyrometer
o Thermal Operation above 1300C
• Type C Thermocouple
o Control and Over-temp
o Automatic retraction
• MKS PDR900 Vacuum Controller
o MKS 910 DualTrans Transducer

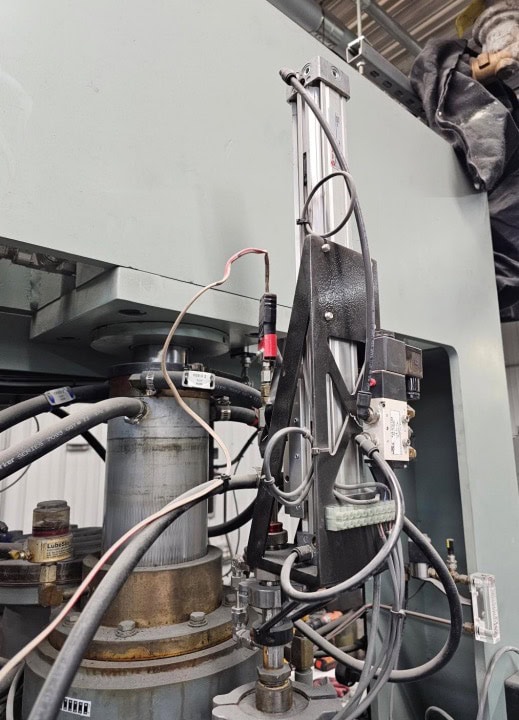

• Digital Ram Movement Encoder
o Accuracy to nearest .001”
• VPN Modem for remote diagnostics with furnace manufacturer
Features:
• Exhaust check valve
• Exhaust bubbler
• 0-9 Automatic pump down and backfill cycles prior to program start.
• Automatic leak check prior to program start.
• Stokes 148 Piston pump
• Edwards EH250 Roots Blower
• Ultimate pump down can reach below 100mTorr
• Cold Trap w/ Filters for vacuum and exhaust operation.
o Liquid Nitrogen can be used
• 120KW Power Supply
