Manufacturer: Peddinghaus
Model: PEDDIWORKER-1
Year: 2009
90° Angle Shear Capacity" L: 5.00
90° Angle Shear Capacity" W: 5.00
Shear Capacity: .375
Ton: 100
Stock # 179362
1 / 6
Click to zoom in
1 / 6
For Sale by Machinery Values Inc
Surplus Record Dealer Since 2011
Location: Harrison, NJ
Contact Rick Lazarus
Phone Number: 973...> Show Phone Number 973-497-7600
Let the seller know you found their listing on Surplus Record!
Description

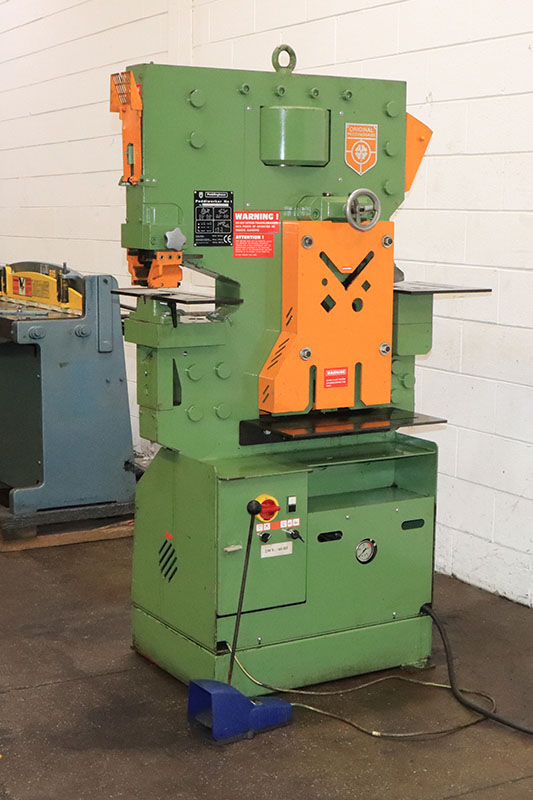

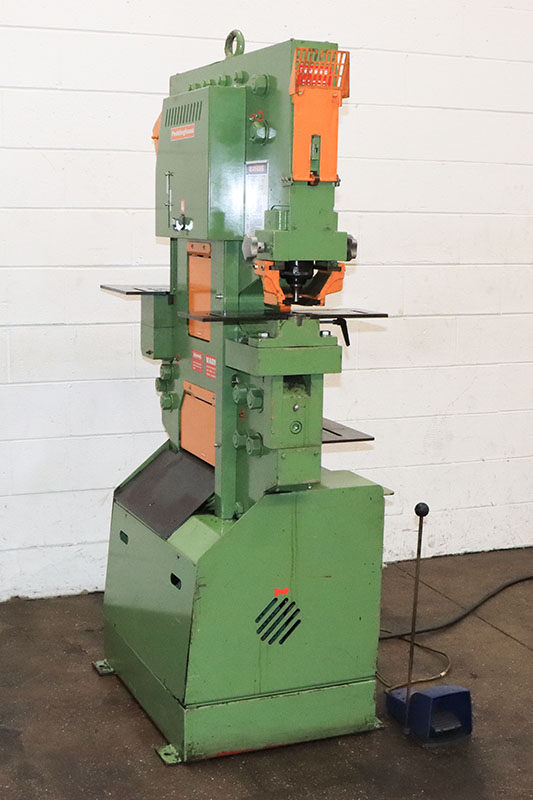

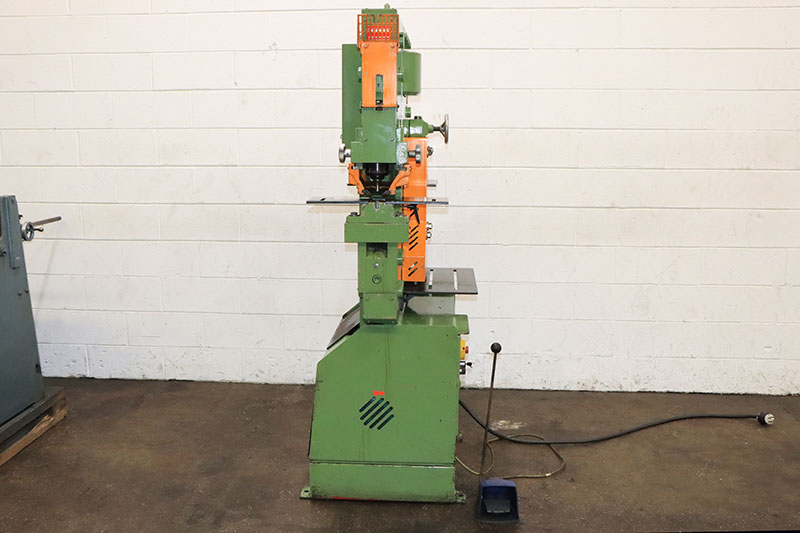

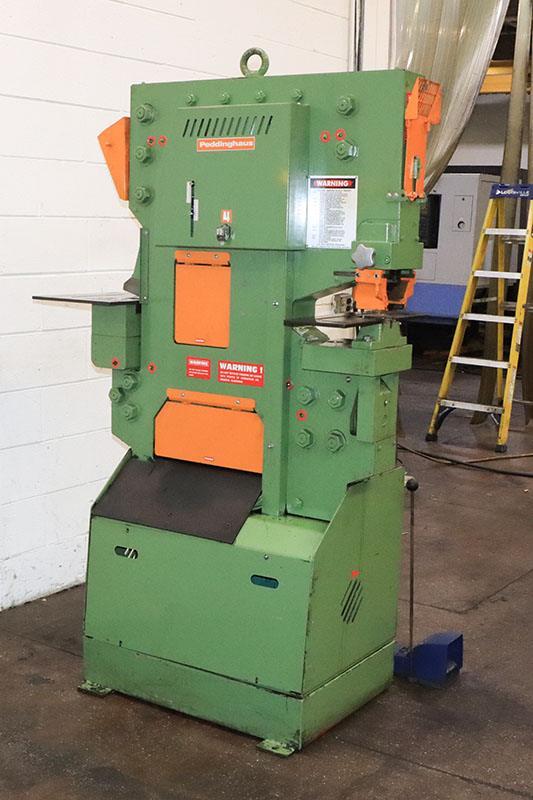

100 TON PEDDINGHAUS HYDRAULIC IRONWORKER
MODEL PEDDIWORKER 1
S/N 4090023009004… NEW 2009
Punching:
Maximum punch capacity ........ 100 TONS
Depth of throat ............... 10"
Working height ................ 46-1/4"
Stroke, variable ..............″/8" to 1-5/8"
Speed at″/4" stroke .......... 26 S.P.M.
Standard punch diameter ....... 1-1/4" in 7/8"
Shearing:
Angles at 90 degrees .......... 5" x″/8"
Angles at 45 degrees .......... 5" x 1/2"
Rounds ........................ 1-5/8"
Squares ....................... 1-5/8"
Working Height ................ 47-1/4"
Flat Shear .................... 16" x″/4"
Length of Cut ................. 16-3/4"
Working Height ................″1-1/2"

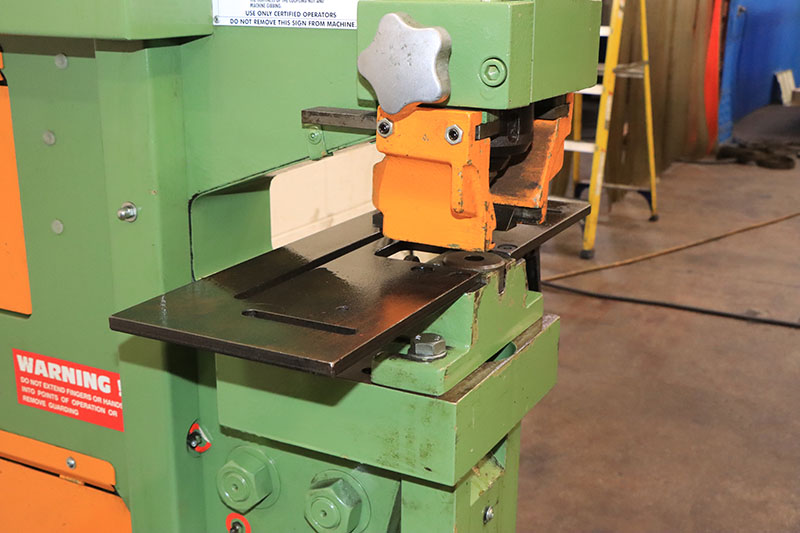

Notching:
Flat Bar ...................... 1/2"
Angle Iron ....................″" x″/8"
Channels in Flange ............″" - 5"
I-Beams in Flange .............″" - 6"
Working Height ................ 46-1/4"
Width… Depth ................. 2" x 2-3/4"
Equipped with:
- 5.5 HP Motor
- 12 Gallon Reservois
- Hydraulic design with infinitely variable stroke and stroke position setting

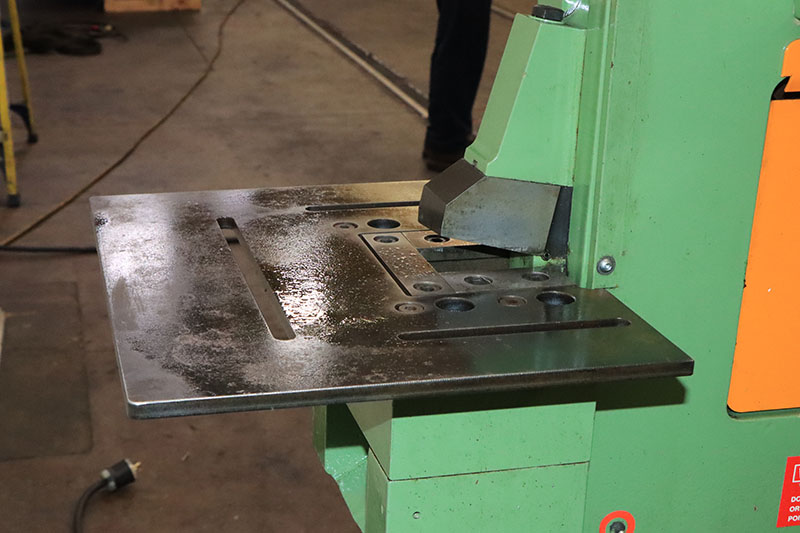

- Material support table with gauge stops on the flat shear station
- Quick-change punching attachment
- Square notcher with material support table on shear end
- Dual voltage (230-460) electrics
- Foot Pedal
Approximate Weight: 2,700 Lbs.…
Approximate Dimensions: 48" Long x 27" Wide x 76" High…
Get Your Price from Machinery Values Inc!
