Description
Spec
Specifications & Configurations May Vary Depending on Heavy Bend 1500 Model & Automation Level
Maximum Mild Steel Tube Capacity: 150 x 12 mm
Maximum Stainless Steel Tube Capacity: 120 x 10 mm
Maximum Aluminum/Copper Tube Capacity: 170 x 12 mm
Maximum Bending Radius: 750 mm
Useful Length on Clamp: 6,000 mm
Useful Length on Mandrel: 8,000 mm
Maximum Bar Passage Diameter: 140 mm
Head Clearance Radius: 380 mm
Power Supply: 400/480 V
Operating Frequency: 50/60 Hz
Maximum Power: 85 kW
Approximate Machine Weight: 13,500 kg
Heavy-Duty CNC Bending Technology
Left or Right Bending Capability
Integrated 3D Part Simulation
File Import Programming Capability
Brushless Servo-Controlled Axes
Hydraulic & Pneumatic Axis Integration
Made in Italy
ISO 9001:2008 Certified System
Description

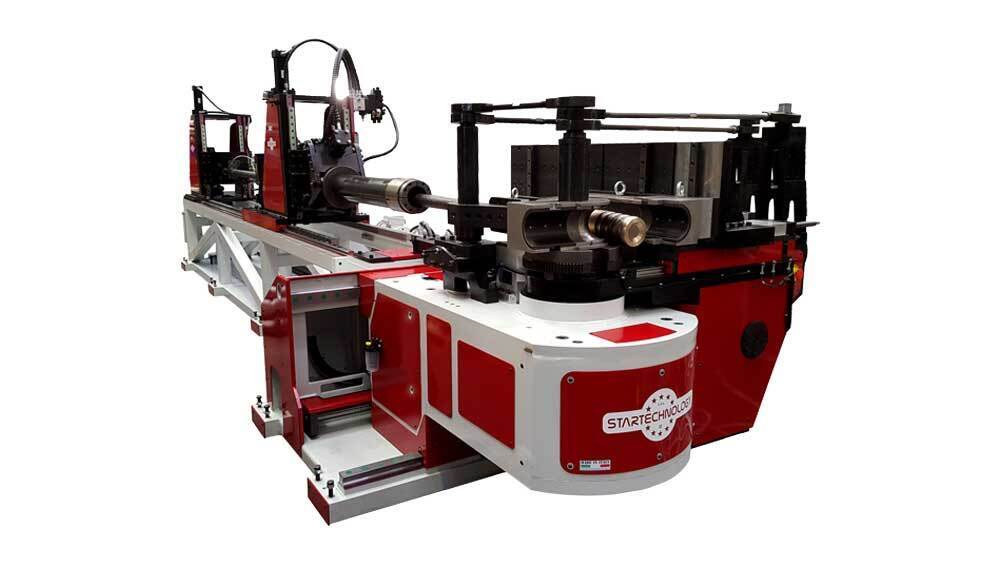

The Heavy Bend 1500 Series from Star Technology is a heavy-duty CNC tube and pipe bending solution engineered for extreme large-capacity bending, advanced automation, and demanding industrial manufacturing environments. Manufactured in Italy, the Heavy Bend 1500 Series offers multiple automation levels and configurable machine layouts to support complex heavy-duty tube fabrication applications.
