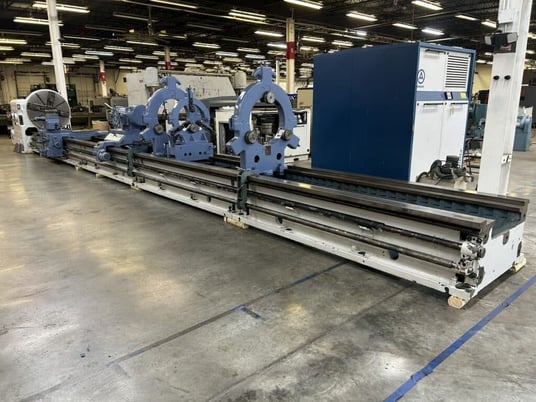

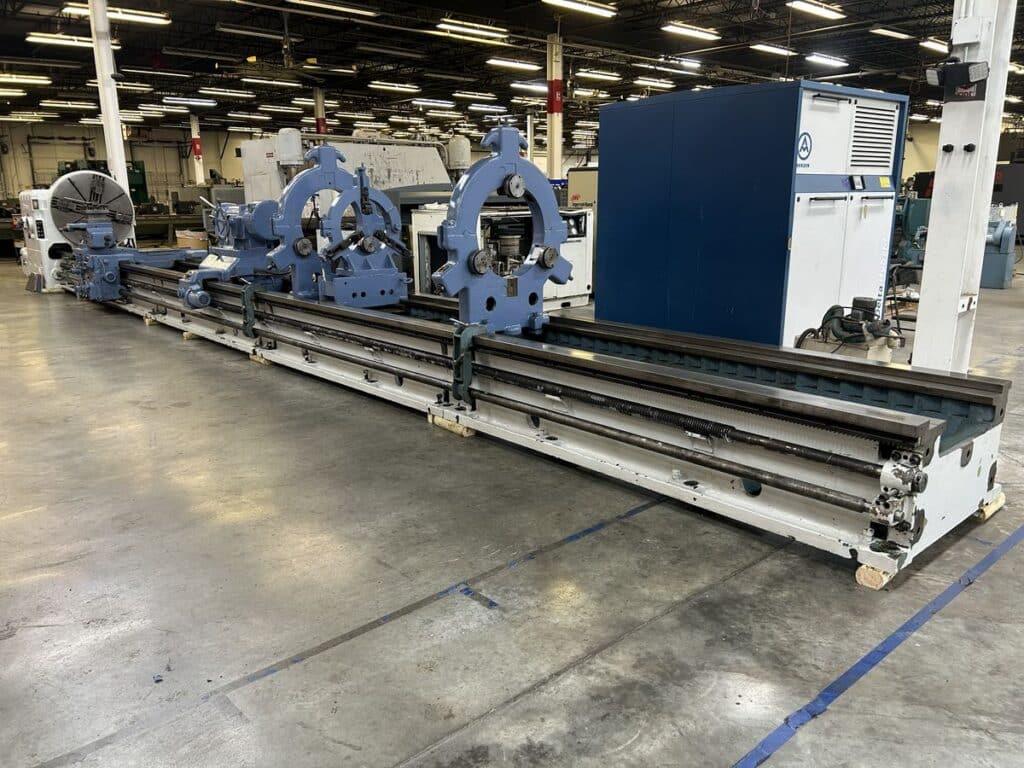

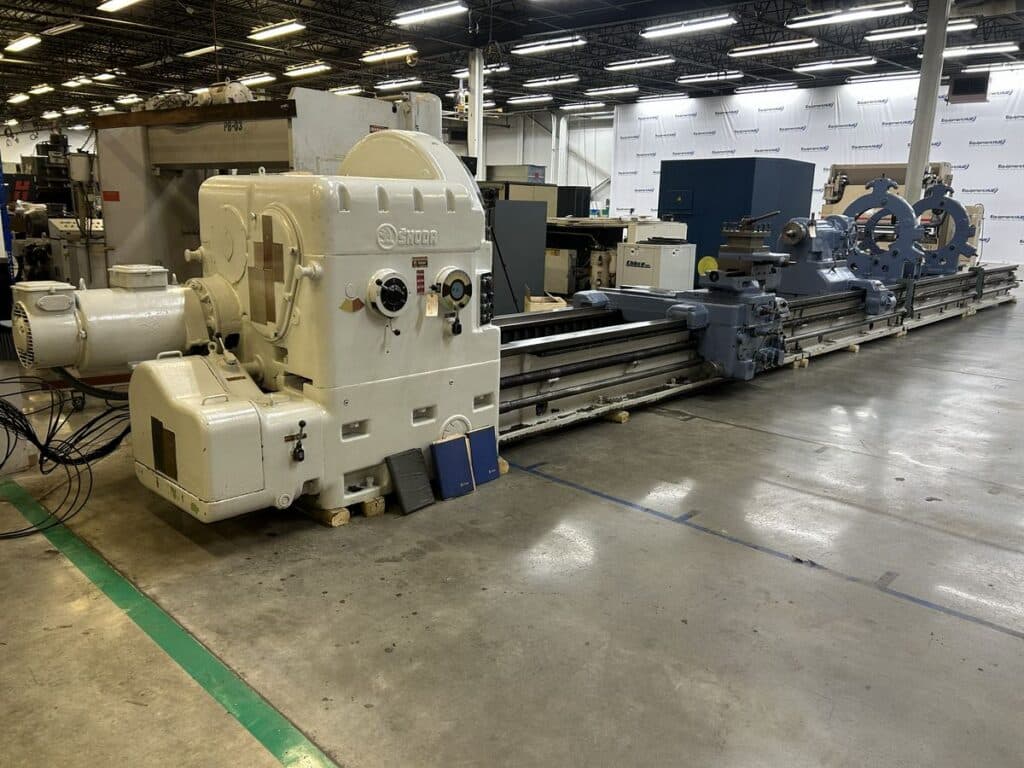

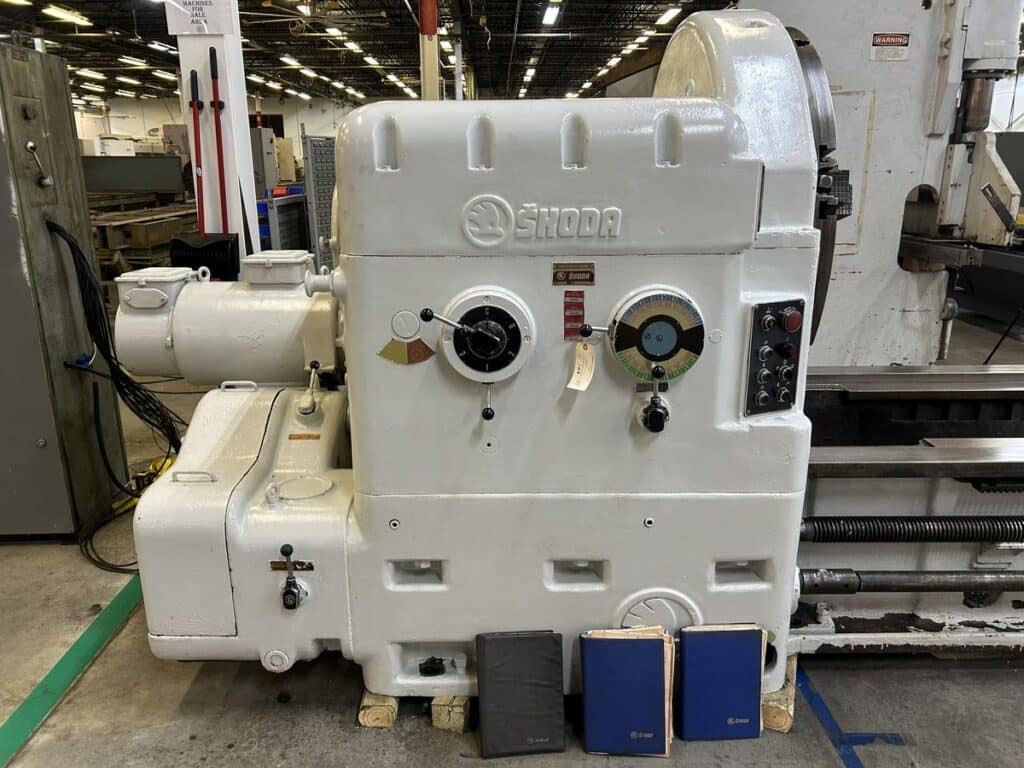

General Info Stock #: 180250032 Location: Decatur, GA Brand: Skoda Model: SRM 125/12-75 Serial #: 20 896 Approx. Shipping Weight: 55,000 Lbs. Approx. Shipping Dimensions: 53' L x 8' W x 7' H Specifications Swing Over Bed: 49" Swing Over Carriage: 35" Distance Between Centers(Approximate): 480" Maximum Torque of Face plate: 22,780 ft.-lbs. Maximum Weight of Workpiece Between Centers(Without Rests): 30,850 Lbs. Height of Bed: 24-1/2" Width of Bed: 43-1/4" Spindle Speeds 1st Range: 1.8 to 90 1.4 to 71 RPM Spindle Speeds 2nd Range: 8 to 400 6,3 to 315 RPM Metric Threads(28): 1 to 50 Module Threads(28): 2 to 20 Whitworth Threads: 24 to 1/2 TPI Main Motor: 50 HP Motor For Rapid Traverse of Carriage: 1.75 HP Motor For Travel of Tailstock: 1.5 HP Overall Bed Length: 542" Electrical: 480V/3PH Equipped With (3) Steady Rest, Powered Tailstock, Powered Carriage Feed, Manuals/documentation Additional Info The Skoda Engine Lathe can be demoed upon request.
General Info
Stock #: 180250032
Location: Decatur, GA
Brand: Skoda
Model: SRM 125/12-75

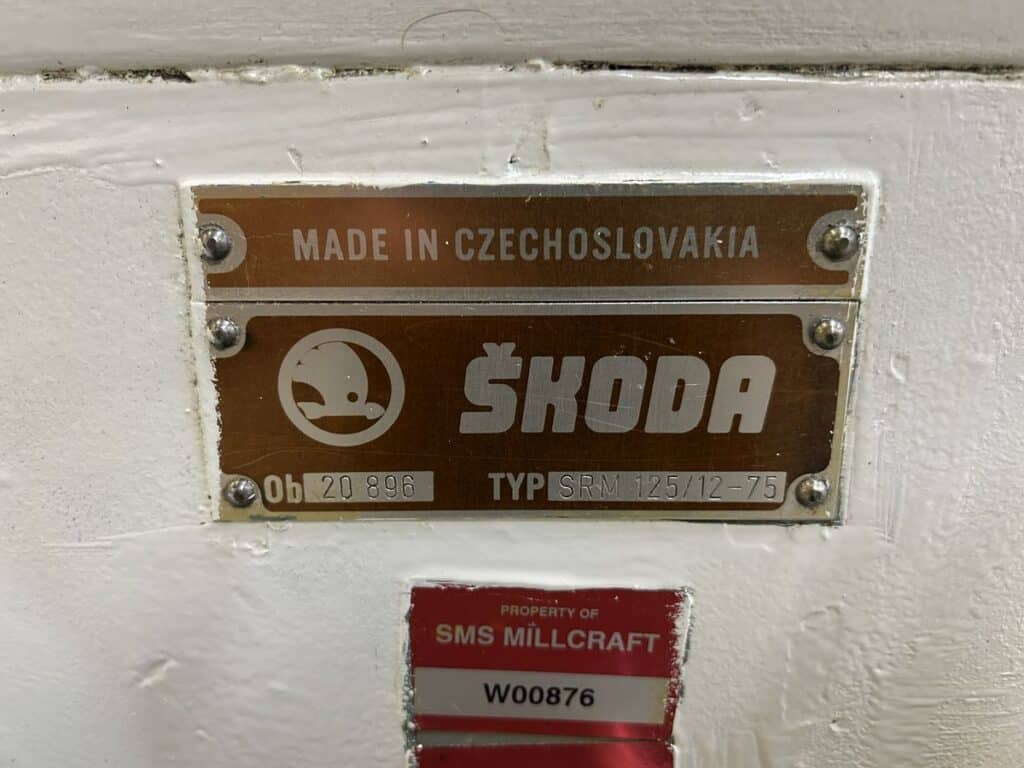

Serial #: 20 896
Approx. Shipping Weight: 55,000 Lbs.
Approx. Shipping Dimensions: 53′ L x 8′ W x 7′ H
Specifications
Swing Over Bed: 49″
Swing Over Carriage: 35″

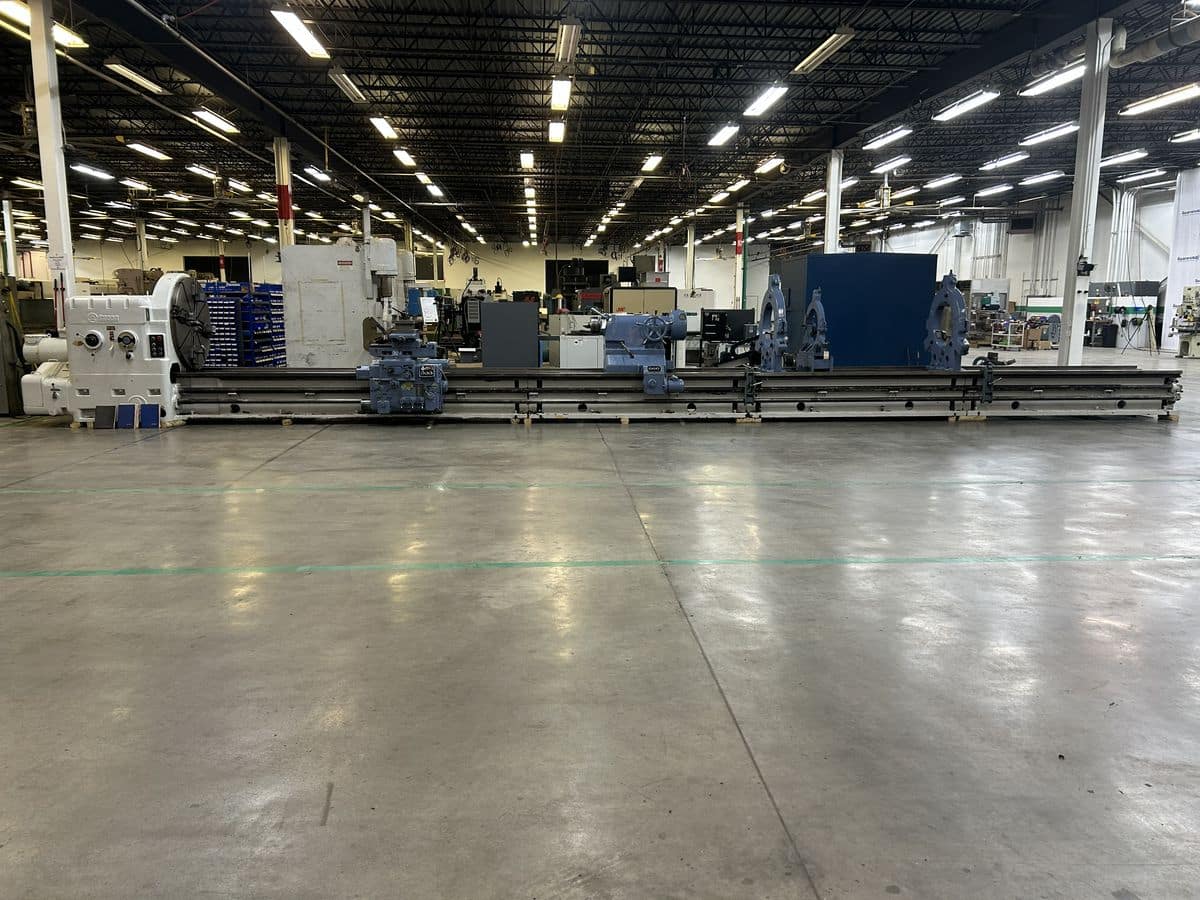

Distance Between Centers(Approximate): 480″

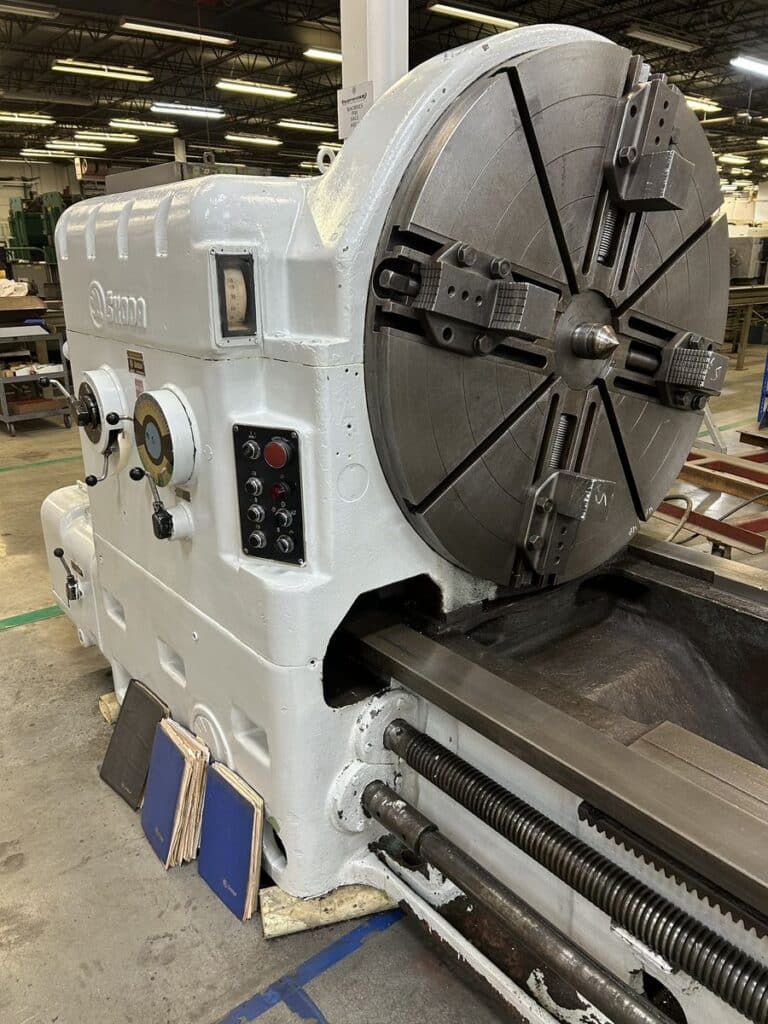

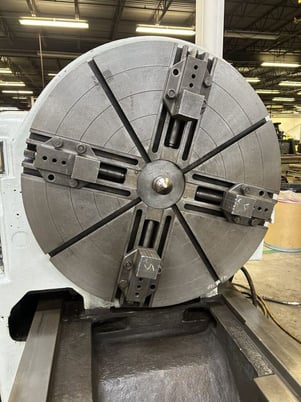

Maximum Torque of Face plate: 22,780 ft.-lbs.
Maximum Weight of Workpiece Between Centers(Without Rests): 30,850 Lbs.
