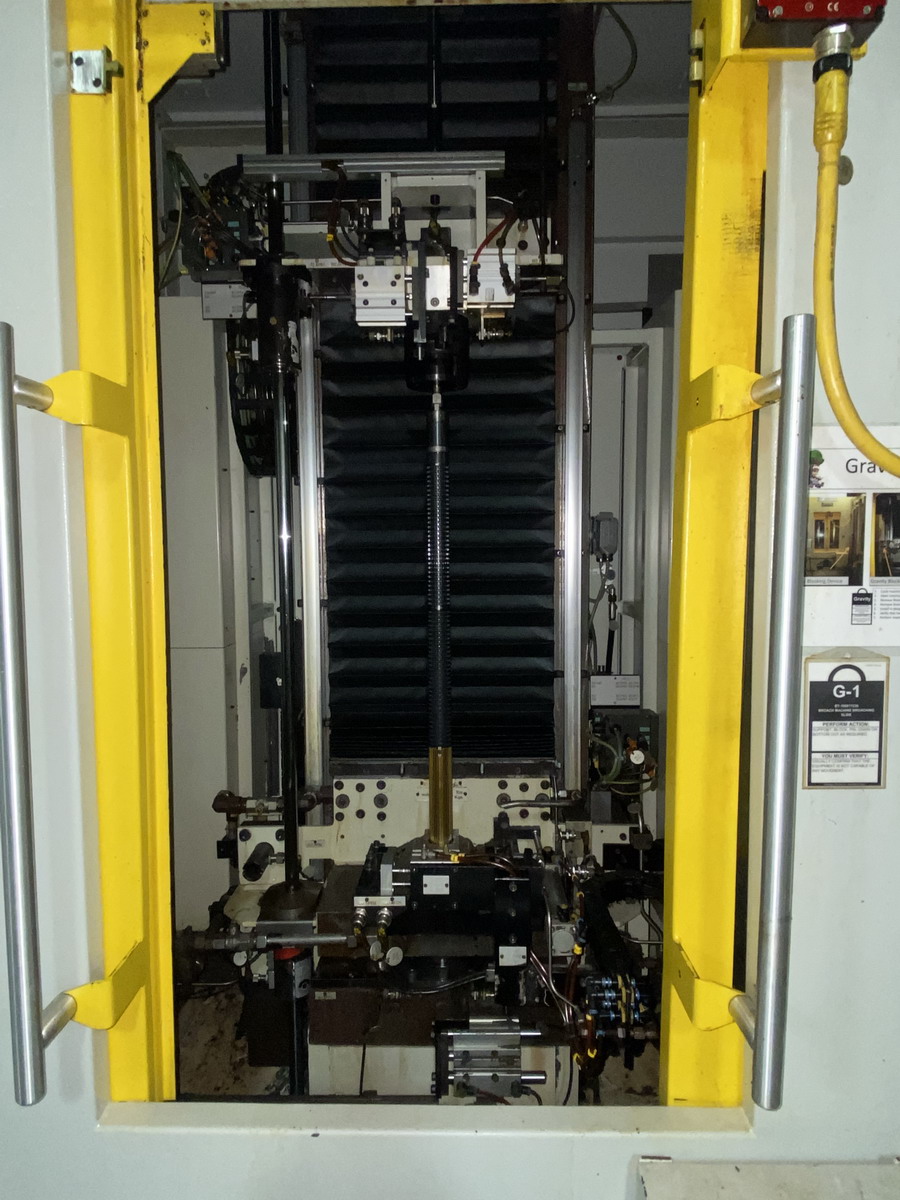

49" stroke, Forst #RISH6.3x1000x320, CNC vertical broach with Siemens Sinumerik controls, 2006

Description
Forst Model RISH 6.6 x 1000 x 320 Vertical pull down CNC Broach, With Siemens Sinumeric CNC controller , 1250 mm max stroke , 91mm max workpiece diameter , 53mm max workpiece height, auro woekpiece handling as well new 2006. Note: this machine is believed to be both a Hard broach and standard broach !!
Specifications

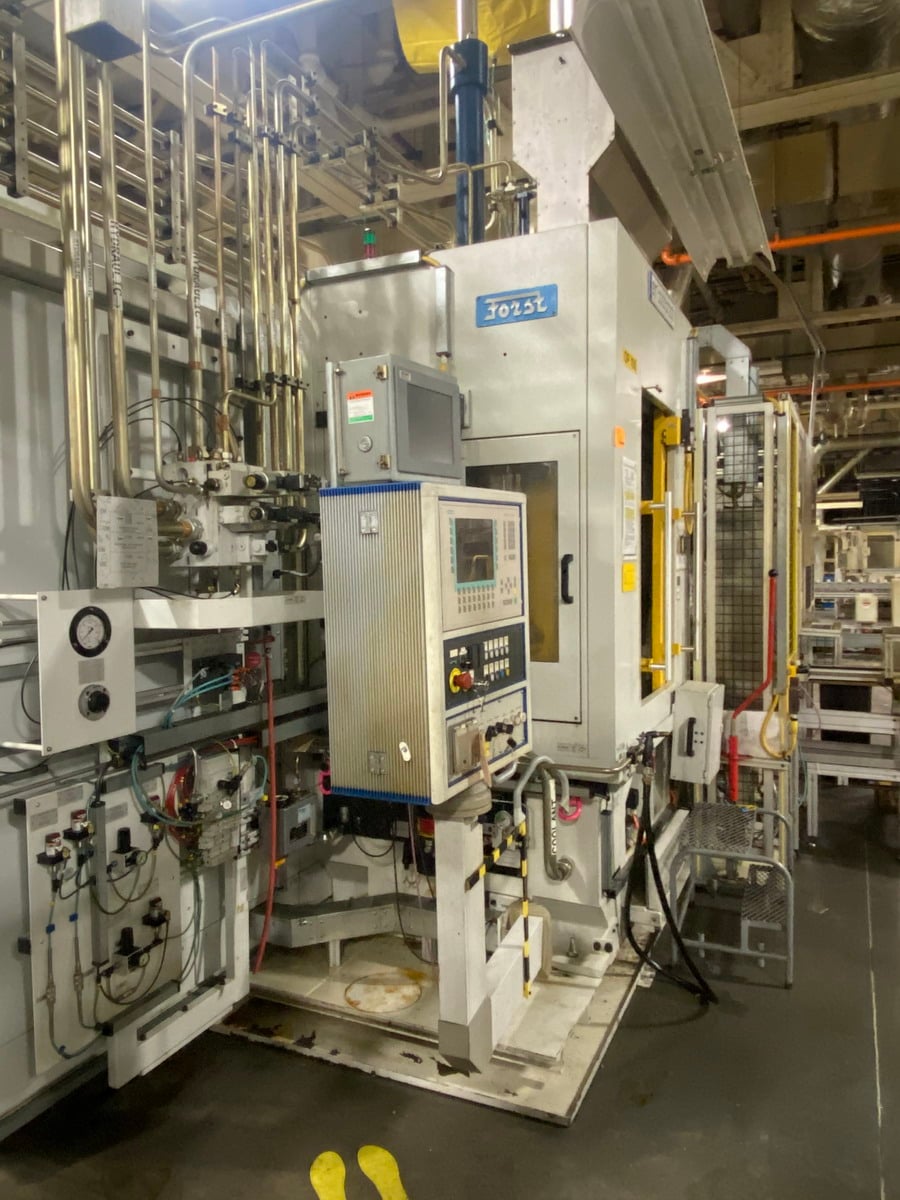

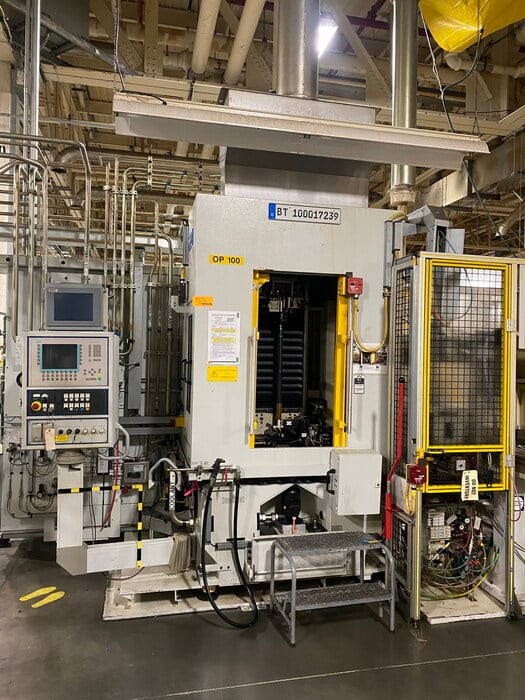

Forst CNC Vertical Pull Down Broach
Model RISH 6.6 x 1000 x 320 Vertical pull down CNC Broach

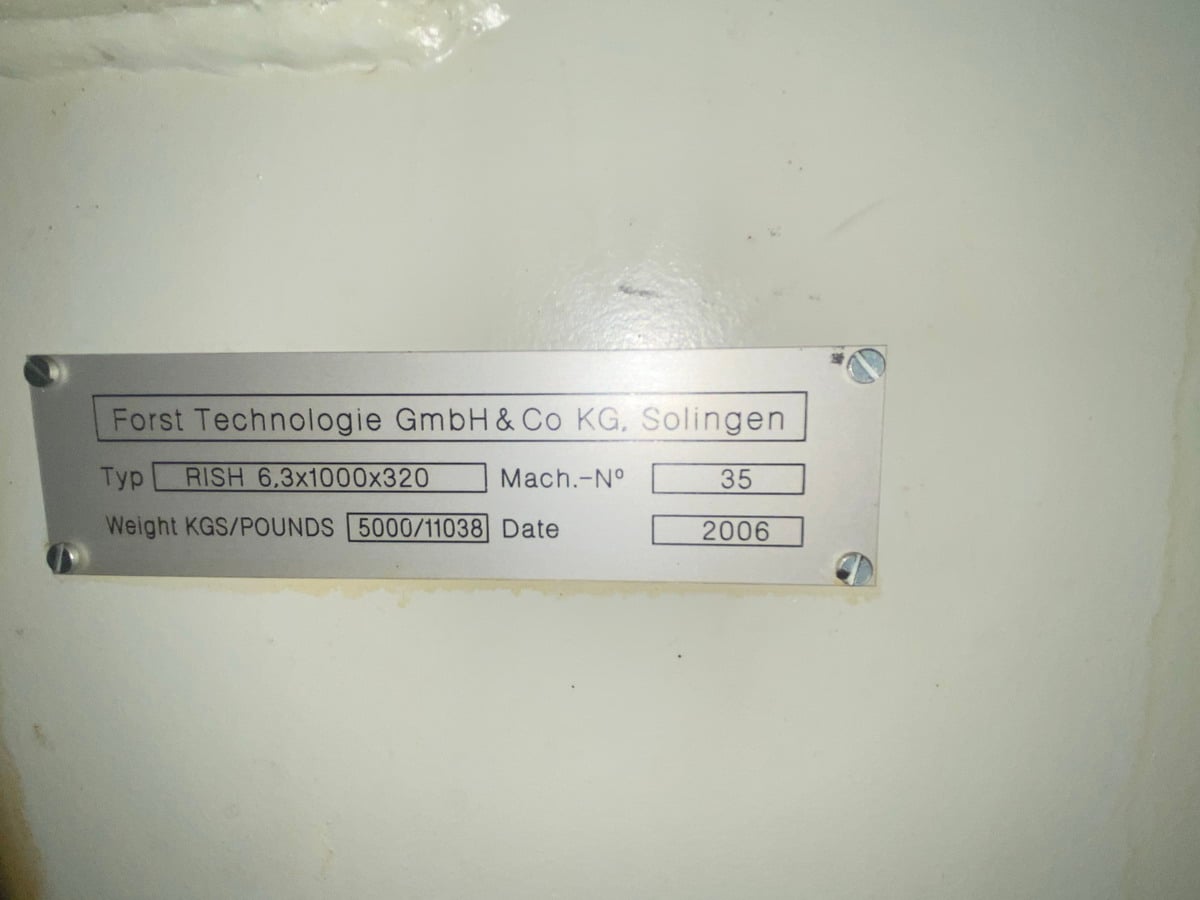

S/N 35 New 2006
Machine is presently set up in customers lab in their Canadian facility
Machine is equipped with:

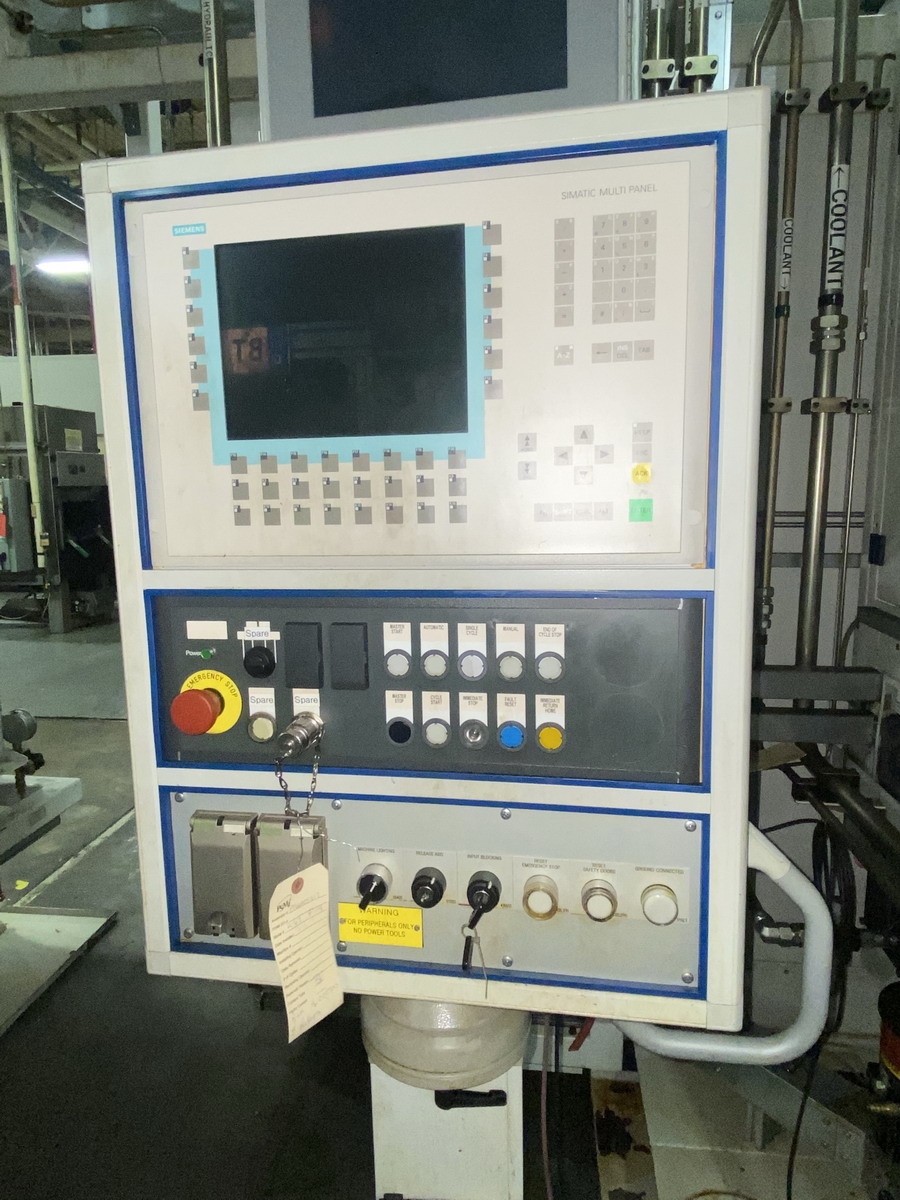

Siemens Sinumerik Control
Rexroth 231 Gal. Hydraulic tank 874 Liters,
400 Psi, 22.37 Hp, Approx.
8' filter loader,( No conveyor)

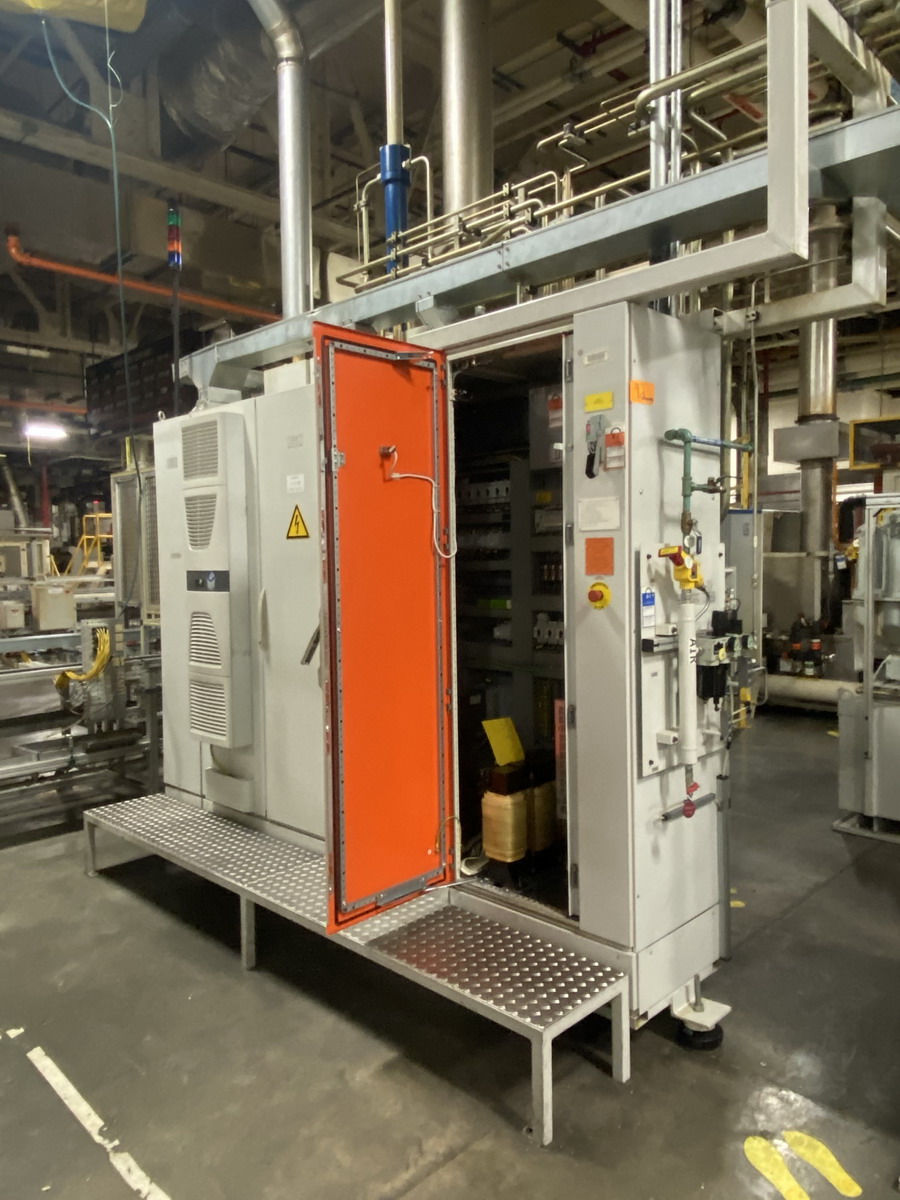

operating voltage: 400V/3 50 Hz -
control voltage: 230AC/24DC V 50 Hz -
nominal current 120A -
max. tensile force: 6,3 kN -
max. stroke: 1250 mm -
max. cutting speed: 8 m/min -
max. reverse speed: 16 m/min -
max. workpiece diameter: 91 mm -
max. workpiece height: 53 mm -
max. tool diameter with standard accessories: 40 mm -
max. tool shaft diameter: 32 mm -
max. tool end piece diameter: 32 mm -
drive power: 5,5 kW -
mit coolant unit,
chip conveyor and metal edge filter -
In- and output device -

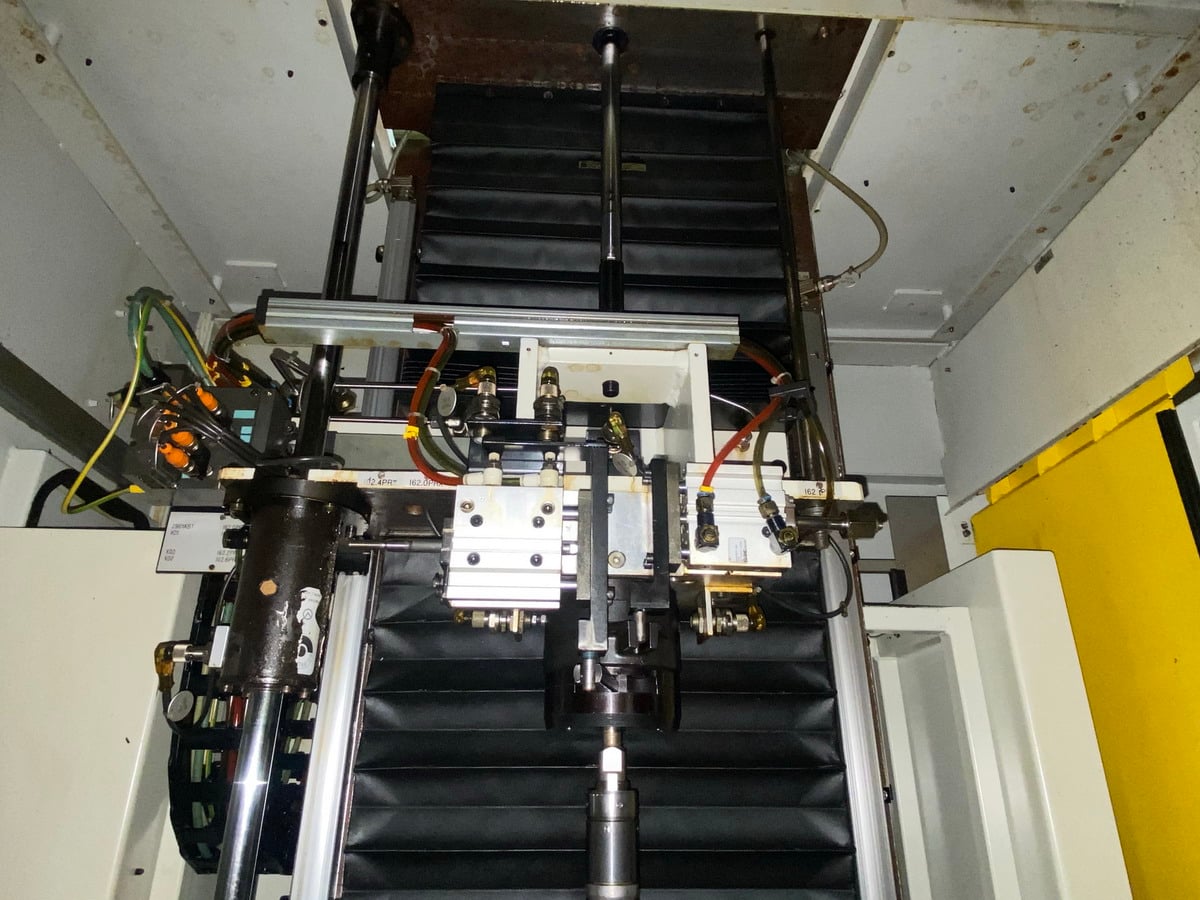

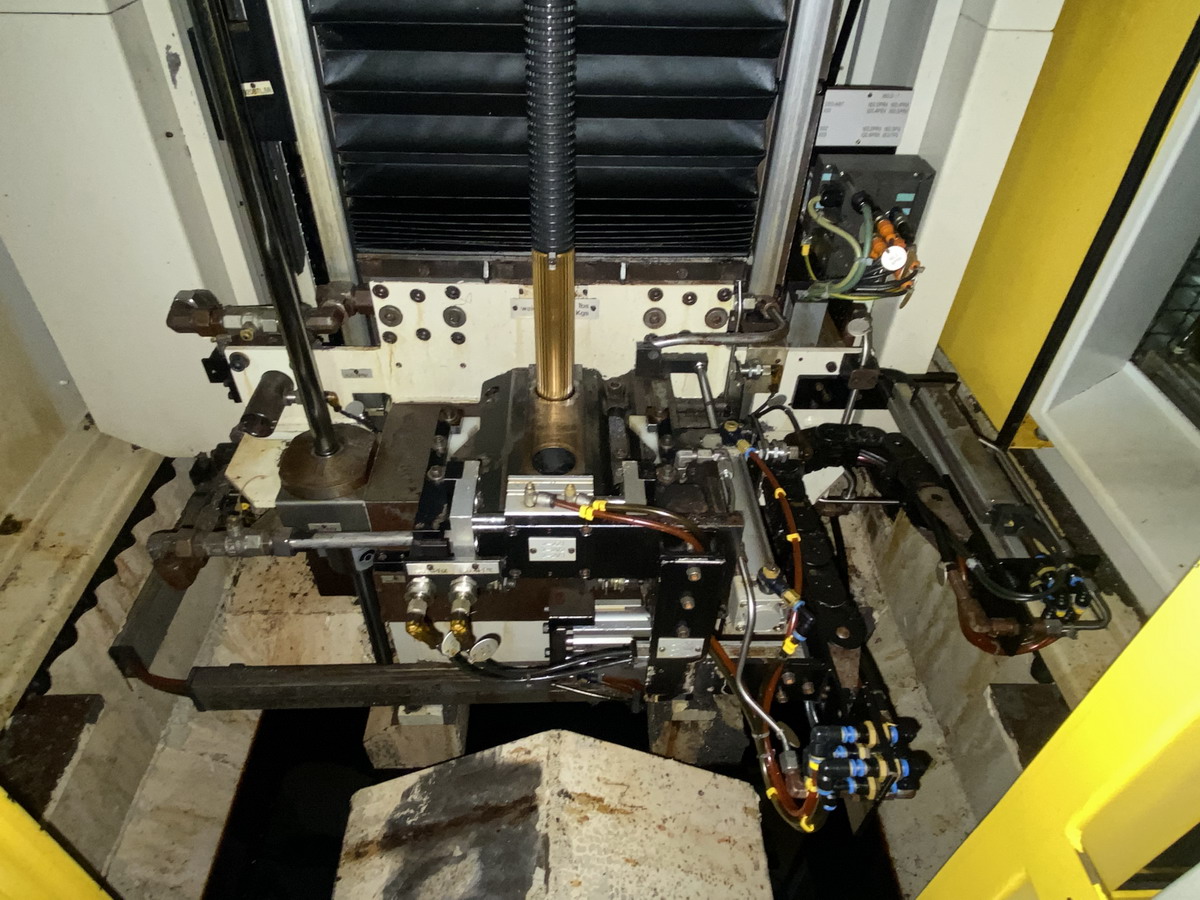

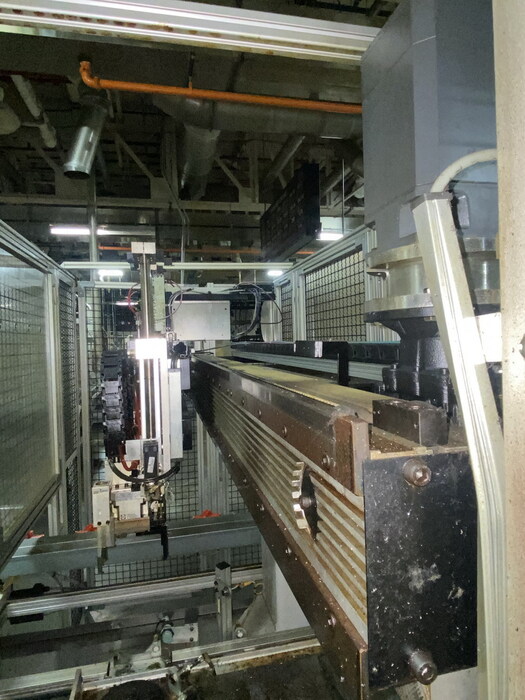

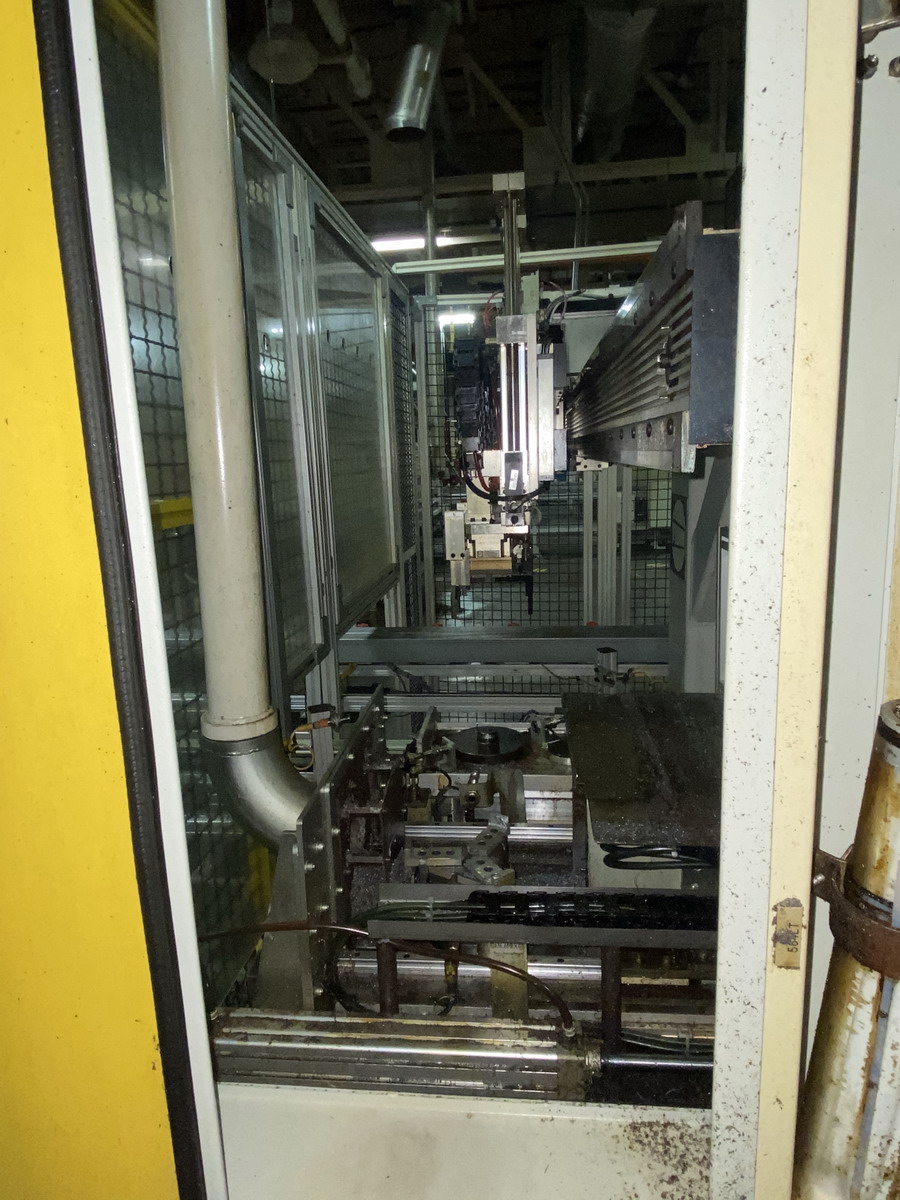

automatic workpiece handling
dimensions (l x w x h) approx.: 4,300 x 2,600 x 4,800 mm,
weight approx.: 15,000 kg
Machine was removed from service. and has been shipped to
present customers location in Canada in a Lab environment
the machine is in excellent mechanical condition. fully
designed to handle both Hard and soft broaching.
