48" Dril-Quip, Hollow Spindle Rotary Table System, w/ Hydraulic Power Unit, QuickPanel HMI Control

Product Specifications

• Manufacturer: Dril-Quip
• Product Type: Hollow Spindle Rotary Table System
• Serial Number: HSRTB1
• Date of Manufacture: June 2005
• Weight: 6,840 lb (nameplate)
• Face Plate Diameter: Approximately 48 in
• Chuck Configuration: 4-jaw independent
• Spindle: Hollow, large center bore
• Drive: Hydraulic, dedicated hydraulic power unit
• Control: Dril-Quip QuickPanel HMI touchscreen with push-button operator station
• Condition: Surplus - Untested

Product Description

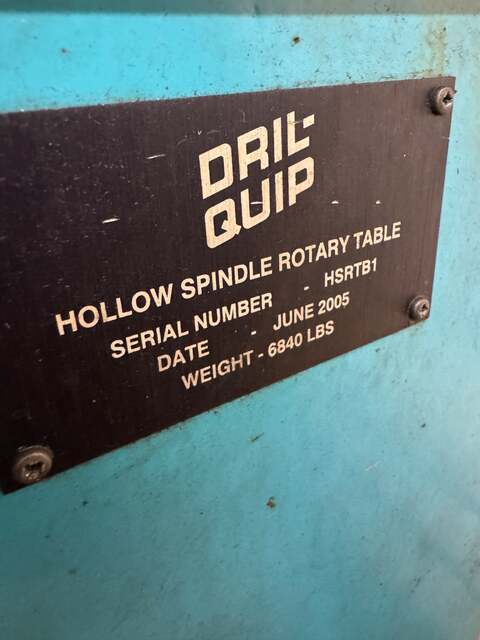

This Dril-Quip hollow spindle rotary table system is a complete, self-contained package consisting of the rotary table assembly and its dedicated hydraulic power unit with integrated control cabinet. The nameplate identifies serial number HSRTB1, a manufacture date of June 2005, and a weight of 6,840 lb.

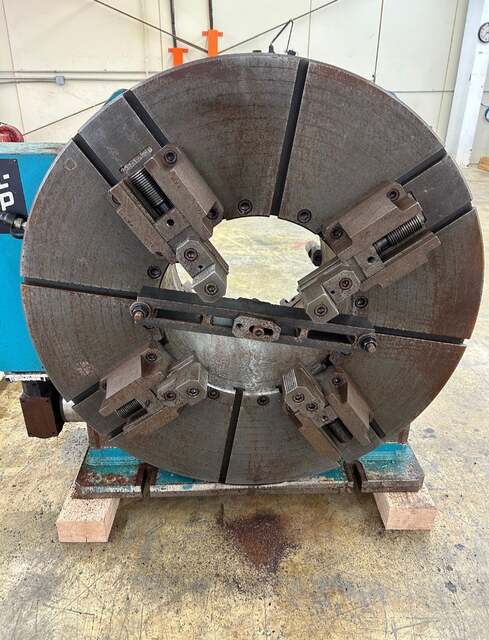

The rotary table carries a large diameter face plate, approximately 48 in, in a 4-jaw independent configuration with a large hollow center bore for pipe and tubular work. Construction is heavy cast iron to oilfield standards, and the table is drive-connected to its hydraulic power unit.

The hydraulic power unit and control cabinet are mounted on a heavy-duty fork-liftable diamond-plate skid with a lifting eye for crane handling. Controls include a Dril-Quip branded QuickPanel HMI touchscreen, push-button operator controls for zero, mode, drill and stop, dump, clockwise and counter-clockwise rotation and speed, and a red emergency stop. The pump and motor assembly and hydraulic line connections are integrated into the same skid.

Systems of this type are used for pipe rotation, casing make-up and break-out, and tubular handling in oilfield tubular running operations, pipe shop work, workover operations and casing inspection facilities. Dril-Quip manufactures subsea and surface wellhead equipment and specialty oilfield tools.

Sold as surplus, untested. Buyers matching this system for replacement or spare inventory should confirm the serial number and the required face plate diameter and bore against their existing setup. Buyer is responsible for inspection, rigging and removal.
