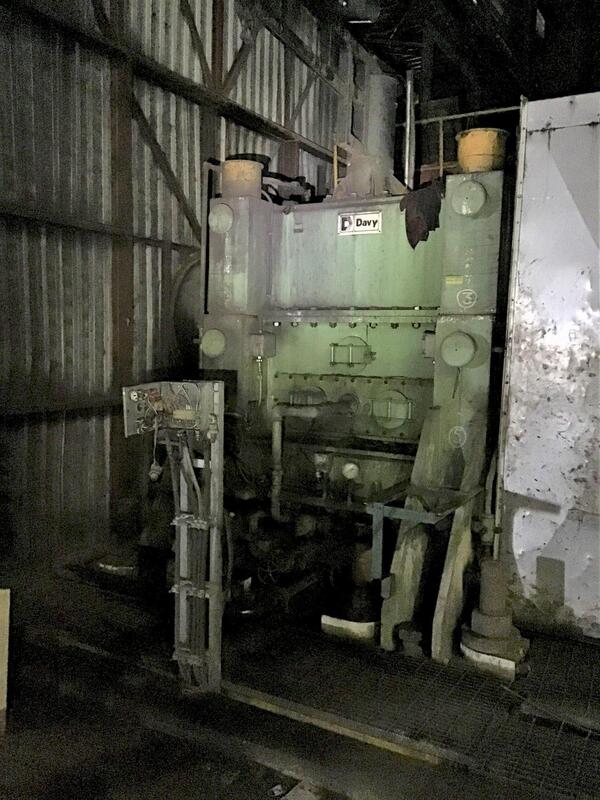

47.5" x 2 Hi, Davy McKee pinion stand, 7000 HP, 50/80 RPM, 2.5 SF, 1:1 gear ratio

MANUFACTURER: Davy McKee
QUANTITY: 1.00
GENERAL SPECIFICATIONS:
MANUFACTURER: Davy McKee
CAPACITY (HP): 7,000 HP (5,222.000 kw)
RPM: 50/80 Rpm
SERVICE FACTOR: 2.5
PINION TYPE: 2-Hi
PITCH DIAMETER (INCHES): 47.250 Inches (1,200.150 mm)
GEARING DESIGN: Helical
GEAR RATIO: 1:1
BEARING TYPE: Roller
D-DIMENSION (INCHES): 27.67 to bottom pinion Inches
INPUT SHAFT DIAMETER (INCHES): 24 Inches (609.600 mm)
INPUT SHAFT LENGTH (INCHES): 37 Inches (939.800 mm)
OUTPUT SHAFT DIAMETER (INCHES): 24.210 Inches (614.934 mm)
OUTPUT SHAFT LENGTH (INCHES): 22.250 Inches (565.150 mm)
OUTPUT SHAFT CENTERS (INCHES): 47.250 Inches (1,200.150 mm)
EQUIPMENT SPECIFICATIONS
APPROXIMATE OVERALL DIMENSIONS (INCHES):
LENGTH (INCHES): 150.600 Inches (3,825.240 mm)
WIDTH (INCHES): 153 Inches (3,886.200 mm)
HEIGHT (INCHES): 121.250 Inches (3,079.750 mm)
APPROXIMATE WEIGHT (TONS): 54 Tons (48.988 mt)
PREVIOUS USE: Roughing Mill Pinion Stand
