Manufacturer: Bliss
Model: C-45
Year: 1976
Ton: 45
Stroke: 3.0
Shut Height: 11.25
Air Clutch: Yes
Stock # 5931
For Sale by Alma Machinery Co-Columbia TN
Surplus Record Dealer Since 1960
Ken King
615-36...> Show Seller's Phone Number 615-369-7788 Let the seller know you found their listing on Surplus Record!
Description
| CAPACITY | 45 TON | STROKE | 3" | MAX SHUT HEIGHT TO BED | 11.25" SDAU | BED AREA | 29.5" X 18" (rl x FB) | SPEED | 100 SPM (50 - 100 spm POSSIBLE for UPCHARGE) | slide adjustment | 3" MANUAL | slide area | 15.25" RL X 11.25" FB | BOLSTER PLATE | NONE CURRENTLY. WILL INCLUDE WITH RECONDITIONED PRICE | DIST UPRIGHTS / FLOOR TO BED | 14" / 41" | CLUTCH | BLISS AIR CLUTCH / BRAKE COMBINATION | PRESS CONTROL | RECONDITIONING WILL INCLUDE new cieco 1100r press control | ELECTRIC MOTOR | RECONDITIONING will include new techtop 5 HP 1150 RPM 208-240/480V-3-60 MOTOR | APPROX DIMENSIONS | 112" H X 5' RL X 5' FB | APPROX WEIGHT | 8,000 LBS | Equipped With | floor standing, cast iron frame, direct drive | Note | __ |
|---|---|
| Location | This Used Press is Located in Our Columbia, TN Warehouse |
Get Your Price from Alma Machinery Co-Columbia TN!
Buyers Who Viewed This Listing Also Viewed …
45 Ton, Bliss #C-45, OBI press, 3" stroke, 12.25" Shut Height, 3" ram adj., 90 SPM, 29.5" x18" bed, air clutch & brake
Seller: D & D Industries Inc
Location: Monclova, OH
Mfr: Bliss
Model: C-45
Width 8 Length 76 Discharge Height 76", 28" x 26.5" hopper, 2008.

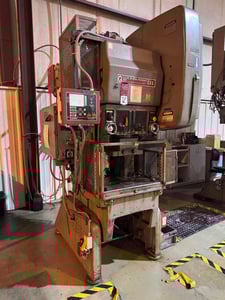

45 Ton, Bliss #C-45, OBI flywheel press, 3" stroke, 12-1/4" Shut Height, 10" throat, air clutch & brake, 120 SPM, 3 HP, 1978
Seller: Yoder Machinery Sales
Location: Holland, OH
Mfr: Bliss
Model: C-45
Year: 1978
SERIAL. H68569-HP51953, MODEL. C-45, YEAR NEW. 1978, CAPACITY. 45 TON, STROKE OF SLIDE. 3", SLIDE ADJUSTMENT. 3", SHUT HEIGHT, SDAU. 12-1/4", AREA OF BED. 29-1/2" X 18", AREA OF SLIDE. 15" X 10-3/4", DEPTH OF THROAT. 10", WIDTH OF HOLE THROUGH BACK. 14", BOLSTER. 29-1/2" X 18" X 2-1/4", STEM HOLE. 2" DIAMETER X 6" ...more
45 Ton, Bliss #C-45, Back Gauge OBI press, 3" stroke, 12.25" Shut Height, 3" adj., 50 SPM, 29" x18"bed
Seller: G-2000
Location: Toledo, OH
Mfr: Bliss
Model: C-45
SERIAL.: H65007, MODEL.: C-45, TONNAGE.: 45, STROKE.: 3", SHUT-HEIGHT.: 12-1/4", ADJUSTMENT.: 3", STROKES PER MINUTE.: 50, BED SIZE.: 29" L-R X 18" F-B, MOTOR HP.: 5, 1800 RPM, APPROX WEIGHT: 8,350 LBS, Machine Type.Presses, O.B.I. Manufacturer.BLISS Model.C-45 Year.N/A Condition.Used.

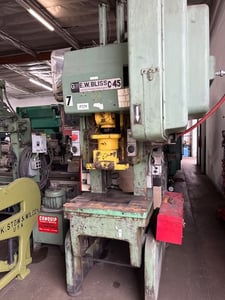

45 Ton, Bliss #C-45, OBI press, 3" stroke, 11.25" Shut Height, 5 HP,air clutch and brake
