400 Amps, Square D, LHL36400, Type LAL, Molded Case Circuit Breaker, 3-pole, 600 VAC/250 VDC, adj. magnetic trip, 35 kA @ 480 Volts

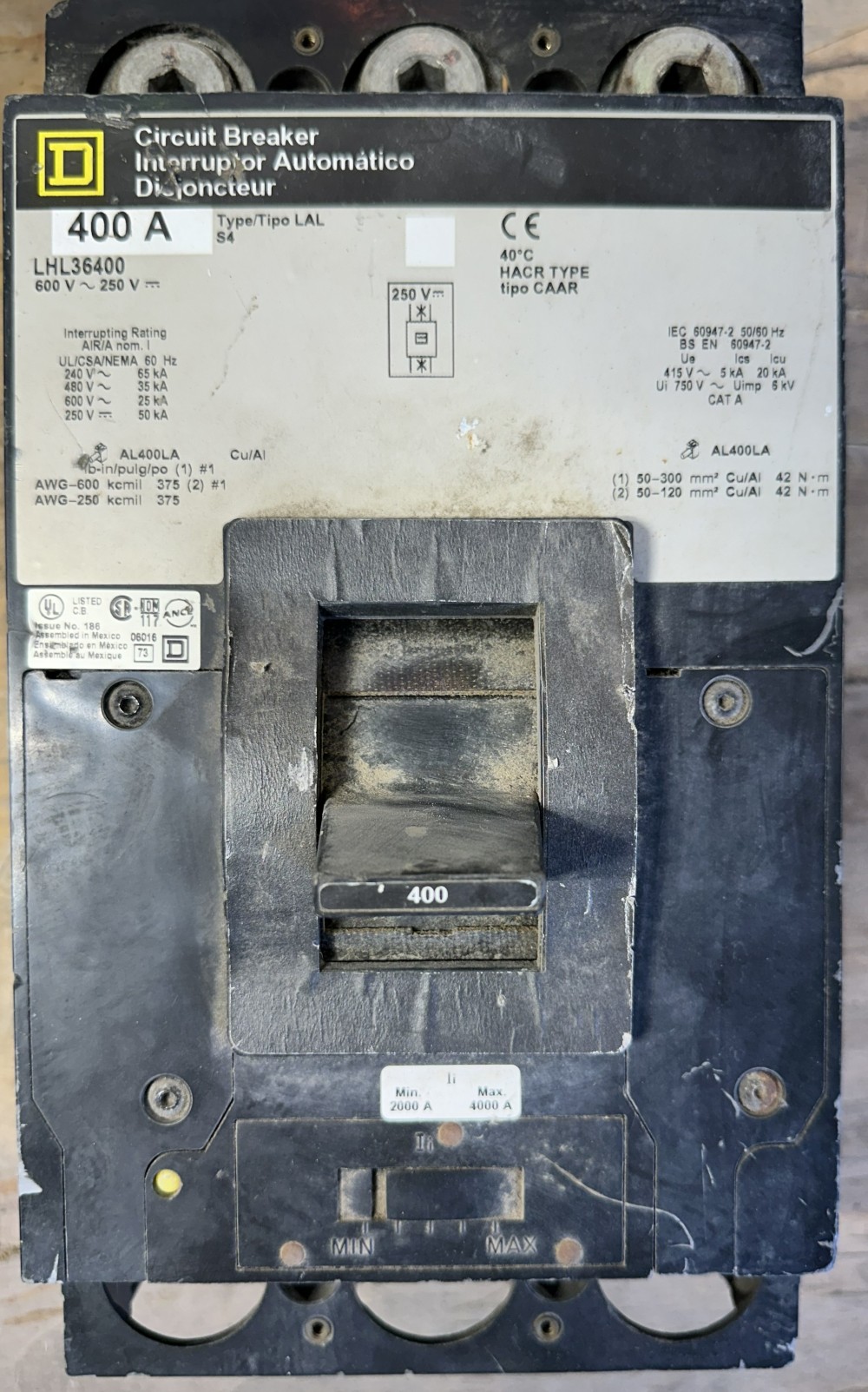

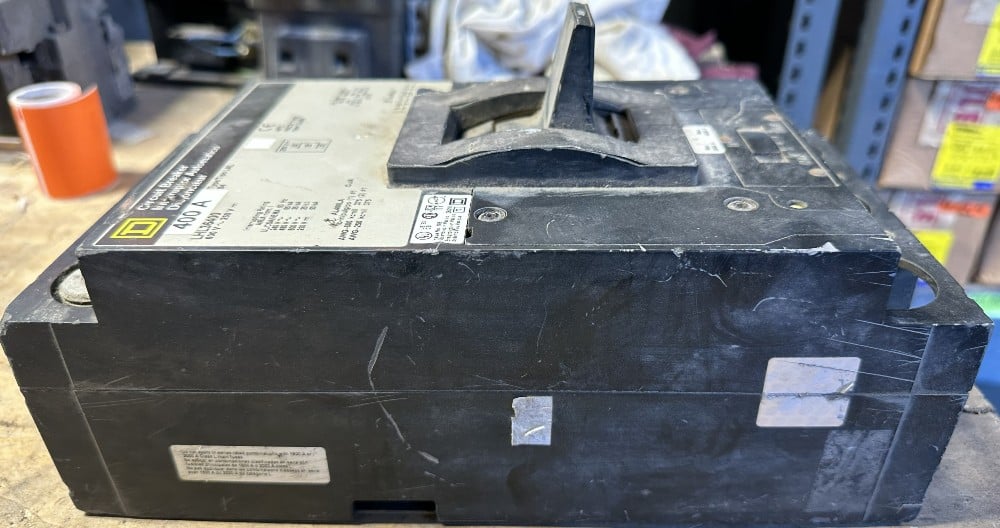

Square D LHL36400 Molded Case Circuit Breaker, Type LAL, Series 4
400A – 3-Pole – 600V AC / 250V DC – Thermal-Magnetic – Adjustable Magnetic Trip (Ii 2000–4000A) – 35kA @ 480V

>> Qty 1 In Stock <<

>> Call for Price – FOB Pickering, Ontario <<

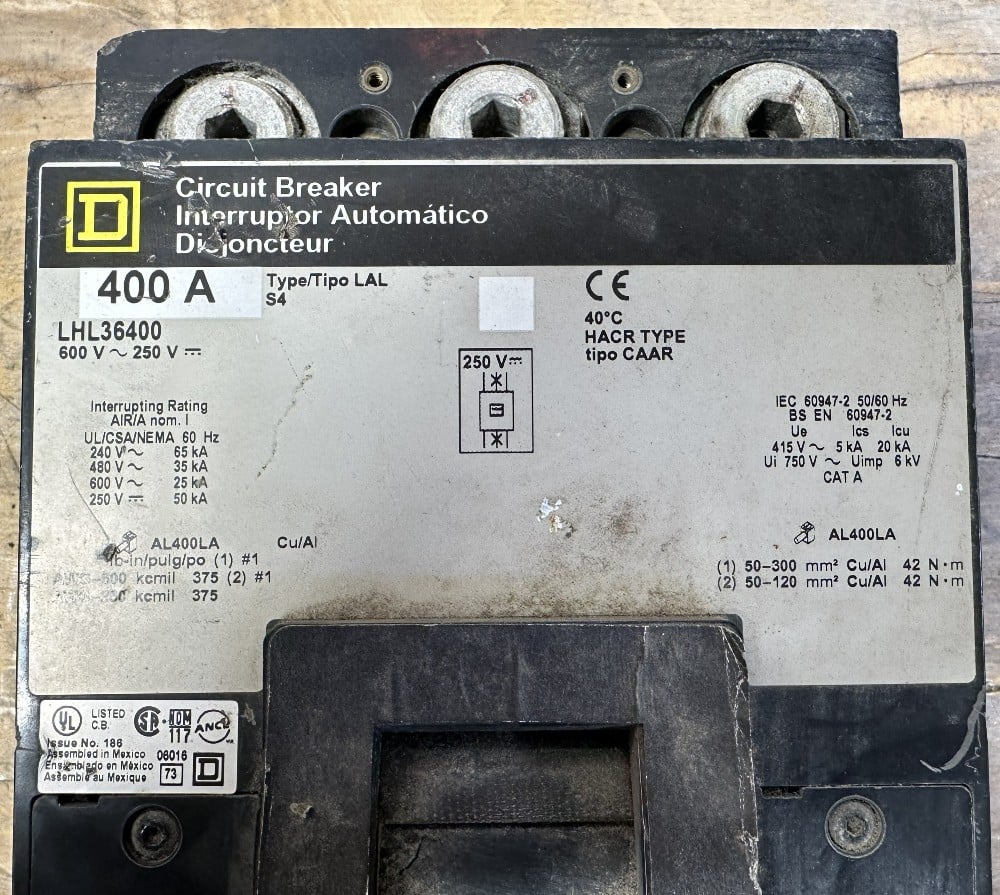

Square D Type LAL Series 4 high-interrupting molded case circuit breaker, catalog LHL36400, rated 400A at 40°C, 3-pole, 600V AC / 250V DC. Magnetic trip adjustable from 2000A (MIN) to 4000A (MAX). Interrupting rating of 65kA at 240V, 35kA at 480V, 25kA at 600V and 50kA at 250V DC. AL400LA line-side lugs installed. HACR / CAAR rated. UL, CSA, NOM, ANCE and CE marked.

Please note: Not for use in series-rated combinations with 1600A or 2000A Class L main fuses, per nameplate.

SPECIFICATIONS

Manufacturer: Square D
Series: Type LAL, Series 4
Catalog #: LHL36400
Type: Thermal-Magnetic Molded Case Circuit Breaker
Poles: 3
Current Rating: 400A @ 40°C
Magnetic Trip: Adjustable, Ii 2000A (MIN) to 4000A (MAX)
Voltage: 600V AC / 250V DC
Interrupting Rating (UL/CSA/NEMA, 60 Hz): 65kA @ 240V, 35kA @ 480V, 25kA @ 600V, 50kA @ 250V DC
IEC 60947-2: Ue 415V AC, Icu 20kA, Ics 5kA, Ui 750V, Uimp 6kV, Cat. A
Lugs: AL400LA line-side lugs installed – (1) #1 AWG–600 kcmil or (2) #1 AWG–250 kcmil Cu/Al, 375 lb-in; load-side lugs not installed
Ratings: HACR / CAAR
Approvals: UL Listed, CSA, NOM, ANCE, CE
Issue No. / Date Code: 186 / 06016

CONDITION

Condition: Used – As-Is

TERMS

Price: Call for Price
Shipping: FOB Pickering, Ontario. Buyer arranges and pays all shipping, brokerage and duties.
Freight: Ships boxed or on pallet (LTL)
Stock #: CB-1583
