For Sale by Nidec Press & Automation
Description
Coil weight capacity: 4000 pounds
Stock Width Capacity 24 inches
Max Stock Thickness Capacity At Full Width .090 inches
Minimum expansion range: No specs attached inches
Maximum expansion range: No specs attached inches
Coil O.D. capacity: 60 inches
Equipped With
Stock thickness capacity: .090" x 24" Wide
Stock thickness capacity: .125" x 18" Wide
Stock thickness capacity: .156" x 12" Wide
Stock thickness capacity: .187" x 18" Wide

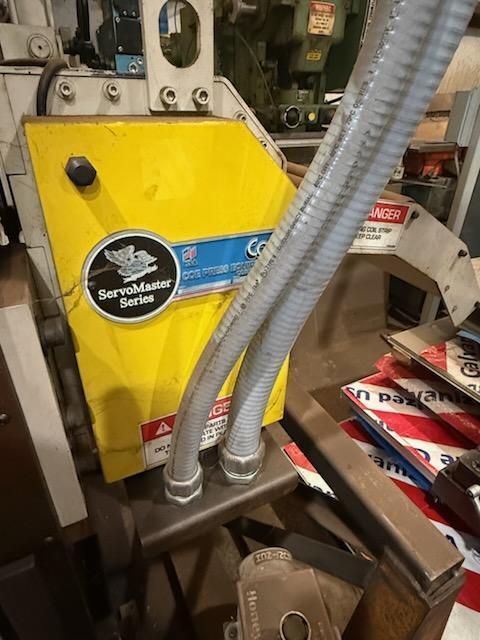

COE PRESS Servo Roll Feed Model No. CPRF-S224
Feed rolls x 2.63" diameter
Air operated upper roll lift / pilot
Press mounted
Adjustable stock width edge guides
AC Servo drive and controls

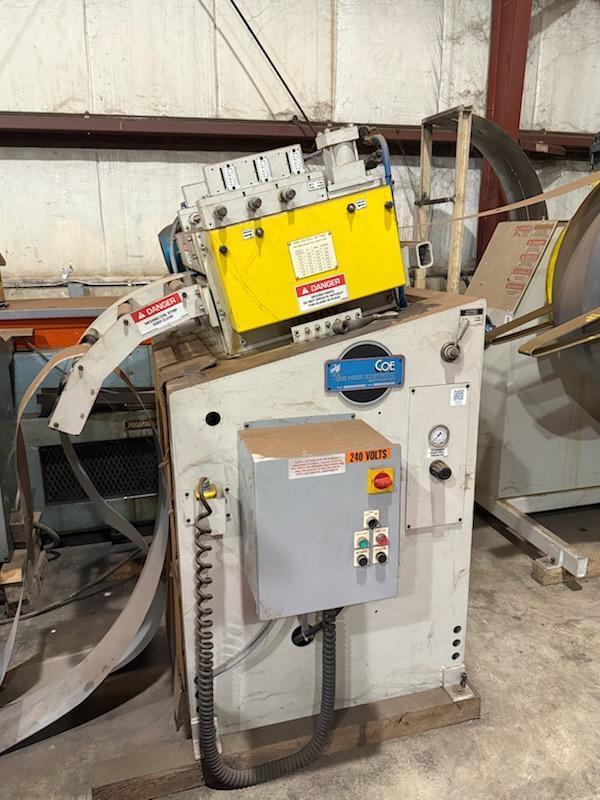

COE PRESS Powered Coil Straightener Model No. CPPS-250-24
Entry pinch rolls x 3.5" diameter
Air operated upper pinch roll open / close
Seven straightening rolls x 2.5" diameter
Individual upper straightening rolls with roll position indicators
AC Drive system
Operator's control station
Jog forward and reverse
Auto / Run cycle
Variable speed loop control

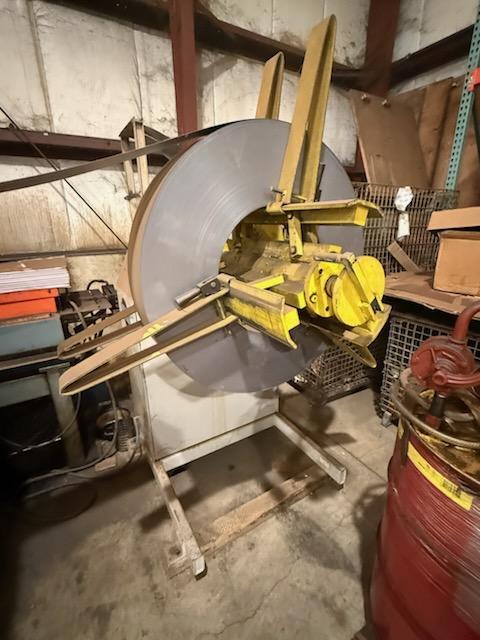

COE PRESS Coil Reel Uncoiler Model No. CPR-PO-4024
Three leaf mandrel
Front mounted mandrel expansion
Adjustable coil keeper arms
Drag brake - adjustable pull off tensioning
