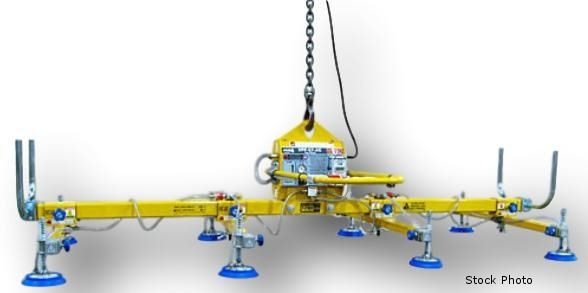

4000 lb. Anver #L400M8-110-4/44, sheet lifter, 12' x6' sheet, 6 pads

ANVER (NEW) L400M8-110-4/44 LIGTING FRAME
CAPACITY - STAINLESS STEEL
- 10' LENGTH
- 5' WIDTH
- 24 GAUGE TO 1" THICKNESS
COMPONENTS
- L400M8-110-4/44 LIFTING FRAME
- VPF-57HD-AC ELECTRIC VACUUM GENERATOR
- PS-250 BOLT-ON FOR 3" X 6" PARKING STAND (PAIR)
LIFTING FRAME
- 4,000 LB CAPACITY
- 12' X 6' SHEET SIZE
- 8 ADJUSTABLE PADS ON CROSSARMS
- 13" HEADROOM
- 110" SPREADER BEAM
- 44" CROSSARM
- 12.6" PAD DIAMETER
- 72" TO 120" OUTER PAD DISTANCE (LENGTH)
- 29" TO 53" OUTER PAD DISTANCE (WIDTH)
- SSR-126 SEAL
- VACUUM LEAKAGE SENSOR AND WARNING SYSTEM
- ATTACH / RELEASE SLIDE VALVE WITH SAFETY LOCK
- LOCKING HAND KNOBS ON THE ADJUSTABLE VACUUM PAD
SLIDE ASSEMBLIES
- HANDLES CARBON AND STAINLESS STEEL SHEETS AND
PLATES
- MEETS US ANSI ASME STANDARD B30.20
- MEETS OSHA REQUIREMENTS
PARKING STAND ASSEMBLY
- 3,000 LB CAPACITY
- FOR 3" X 6" BEAMS (PAIR) UP TO 190" LONG
- BOLT-ON MOUNTING
- DOWN (PARKED) POSITION KEEPS SEALS OFF GROUND
- OUT, UP AND FOLDED-IN POSITIONS
(WHEN OVER LOAD)
- ISO 9001 CERTIFIED
WEIGHTS
- 380 LB FRAME
- 66 LB VACUUM GENERATOR
- 15 LB PARKING STAND ASSEMBLY
OPTION INCLUDED
- L300M6-110-3/44 - LIFTING FRAME
- 6 ADJUSTABLE PADS ON CROSSARMS
- 3,000 LB
