4000 KW Caterpillar #3516B, diesel generator set, 13200 Volts, switchgear, low hours

THIS LISTING INCLUDES:

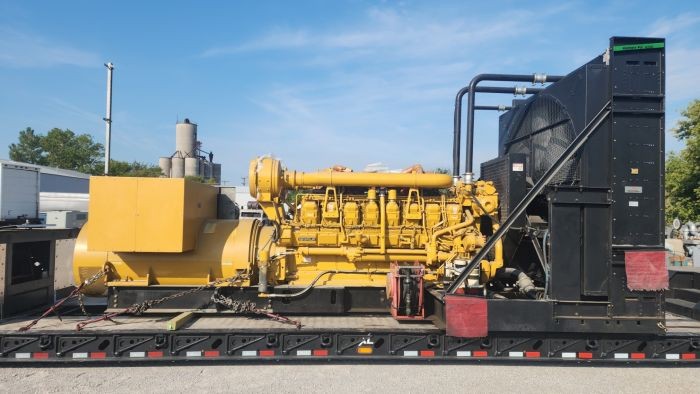

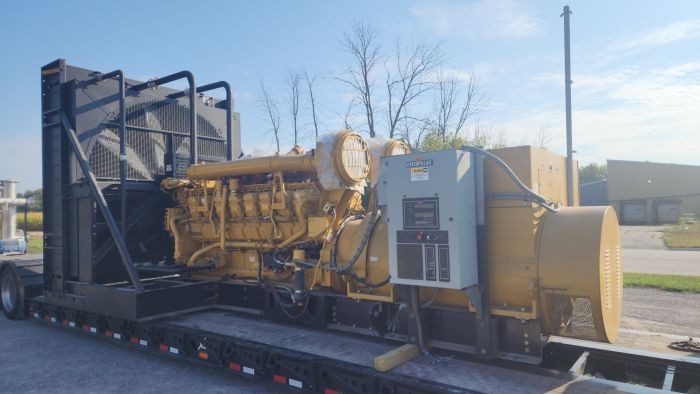

2 x CAT 3516B Generator Sets

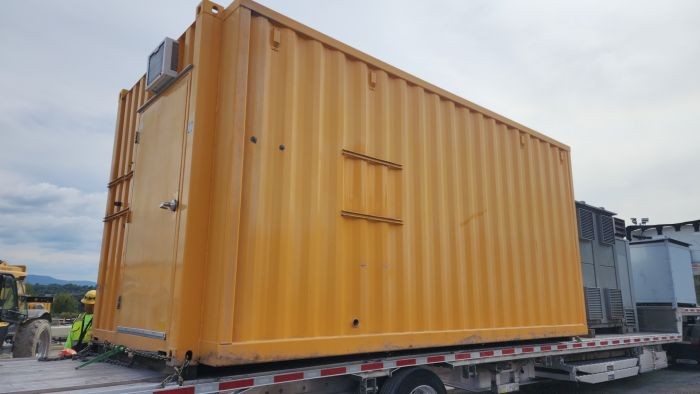

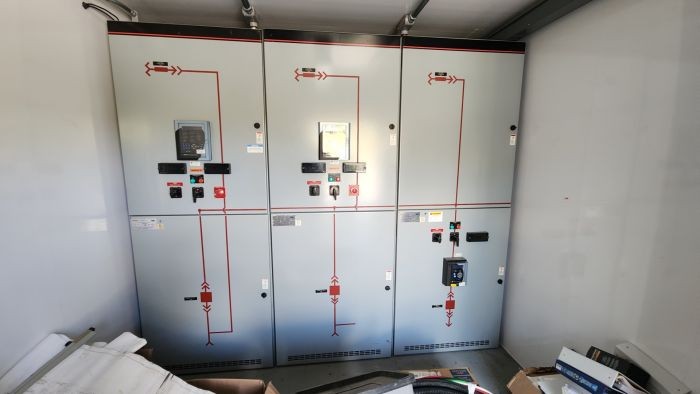

1 x CAT Packaged E-House with HV Switchgear, Circuit Breakers, and CAT Control System with Paralleling

2004 4 MW 2 x Caterpillar 3516B Diesel Generator 13200 Volts, PRIME POWER RATED Low Hours

CONDITION: Running Take Outs. Ready for Service
FOB: 281 Commerce St Belgium, WI 53004 USA

Manufacturer: Caterpillar
MODEL: 2 x 2MW CAT 3516B
Engine #1 Serial#: 1HZ03058
Original Run Hours: 13,105 Total, 82 Hours Since Major Overhaul by ALBON CAT
Date of Mfg: 2004
Engine #2 Serial#: 1HZ03061
Original Run Hours: 15,114 Total, 1266 Hours Since Major Overhaul by ALBON CAT
Date of Mfg: 2004
Size: 1880 KW PRIME / 2000KW Standby
Voltage: 13200 Volts
Phase: 3
Hertz: 60
Fuel Type: Diesel
Base Tank Included: NO
Enclosed: NO
Muffler Included: YES
Unit Mounted Circuit Breaker: NO, SWITCHGEAR INCLUDED w E-HOUSE
Unit Mounted Digital Controls: YES
Unit Mounted Engine Driven Radiator: YES
Unit Mounted Battery Charger: NO

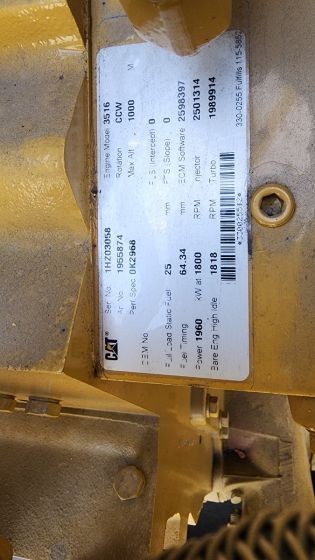

ENGINE INFORMATION: 2 Engines
Manufacturer: Caterpillar
Engine Model: 3516B
Engine Serial Number: 1HZ03058 & 1HZ03061
Arrangement#: 1955874
Perf Spec: 0K2968
Engine Displacement: 69 L
Cylinders: V-16
Aspiration: Turbo Charged, After Cooled
Adv Horse Power: 2628 HP @ 1800 RPM
RPM: 1800
Fuel: Diesel
Year of MFG: 2004

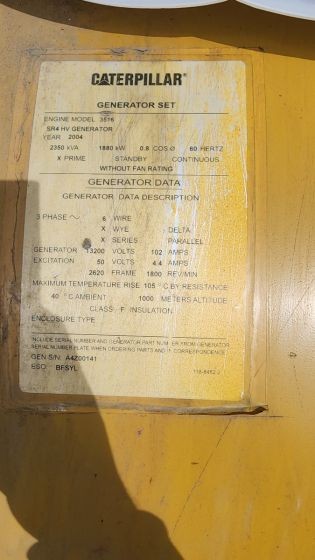

GENERATOR END INFORMATION:
Manufacturer: Caterpillar
Generator Model: SR4 HV
Generator Serial# 44Z00141
Generator AR# 211-4892
PRIME KW: 1880
PRIME KVA: 2350
Voltage: 13200
Amps: 102
Hertz: 60
RPM: 1800
Class F Insulation
Frame: 2620
6 WIRE
WYE
Max Temp Rise: 105 Degrees C

DIMENSIONS & WEIGHT: EACH GENERATOR
Width: 10'
Length: 24'
Height: 11'
WEIGHT: 44,000 lbs.

EHOUSE Dimensions & Weight:

Length: 22' x 10' Wide x 10' Tall

Weight: 22,000 lbs.

GIBUYS# MR02BR
