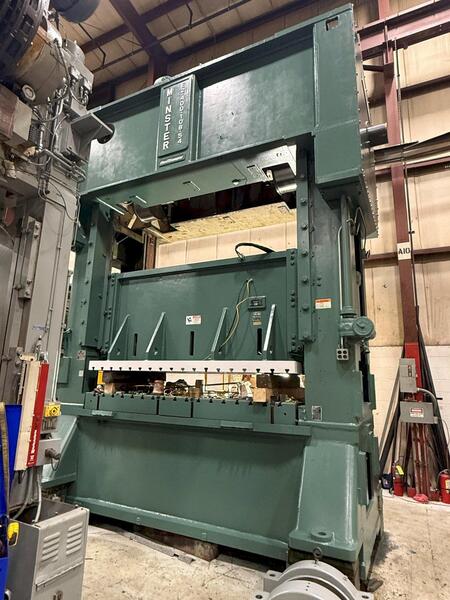

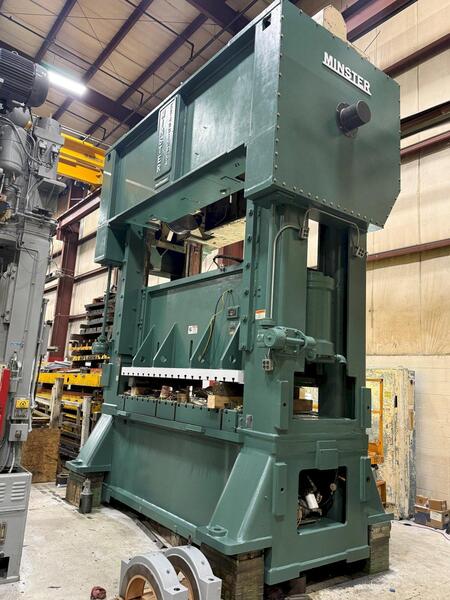

400 Ton, Minster #E2-400-108-54 Hevi-Stamper progressive die metal stamping press, 14" stroke, 40" Shut Height, air clutch

400

14 inches

40 inches

10 inches

108" x 54"

108" x 54"

20-40 VSPM

400-ton Minster Straight Side
Mechanical Metal Stamping Press
Model Hevi-Stamper Press Model E2-400-108-54
Serial Number E2-400-16968
400-ton Capacity
14" Stroke
40" Shut Height on Bed
31" Die Height on Bolster
10" Motorized Adjustment
108" LR x 54" FB Bed Area
108" LR x 54" FB Slide Area
20-40 VSPM

Equipment and Features
Air Clutch and Brake
Air Counterbalances
Single Geared - Twin End Drive
3 Crossbar Knockouts in Ram
8 Adjustable Bronze Lined Gibs
Recirculating Lube System
9" Thick Bolster Plate
T-Slotted Ram and Bolster
Hydraulic Tie Rod Nuts
Dual Ross Air Valve
Distance Floor to Top of Bed: 33"
8 Point Gibing
Motors and New Electrical Controls
38" wide Windows
Floor Standing

Price included "New" well equipped Toledo Press Controls (other Control Brand Options available upon request)

This 400-ton Minster Hevi-stamper Mechanical Metal Stamping Press is currently in process of being fully rebuilt with new electrical controls. Please ask your salesperson for more details and a full scope of work. Upon completion of Rebuild this 400-ton Minster Hevi-Stamper can be seen under power in the S&G Press Livonia Michigan Warehouse!
